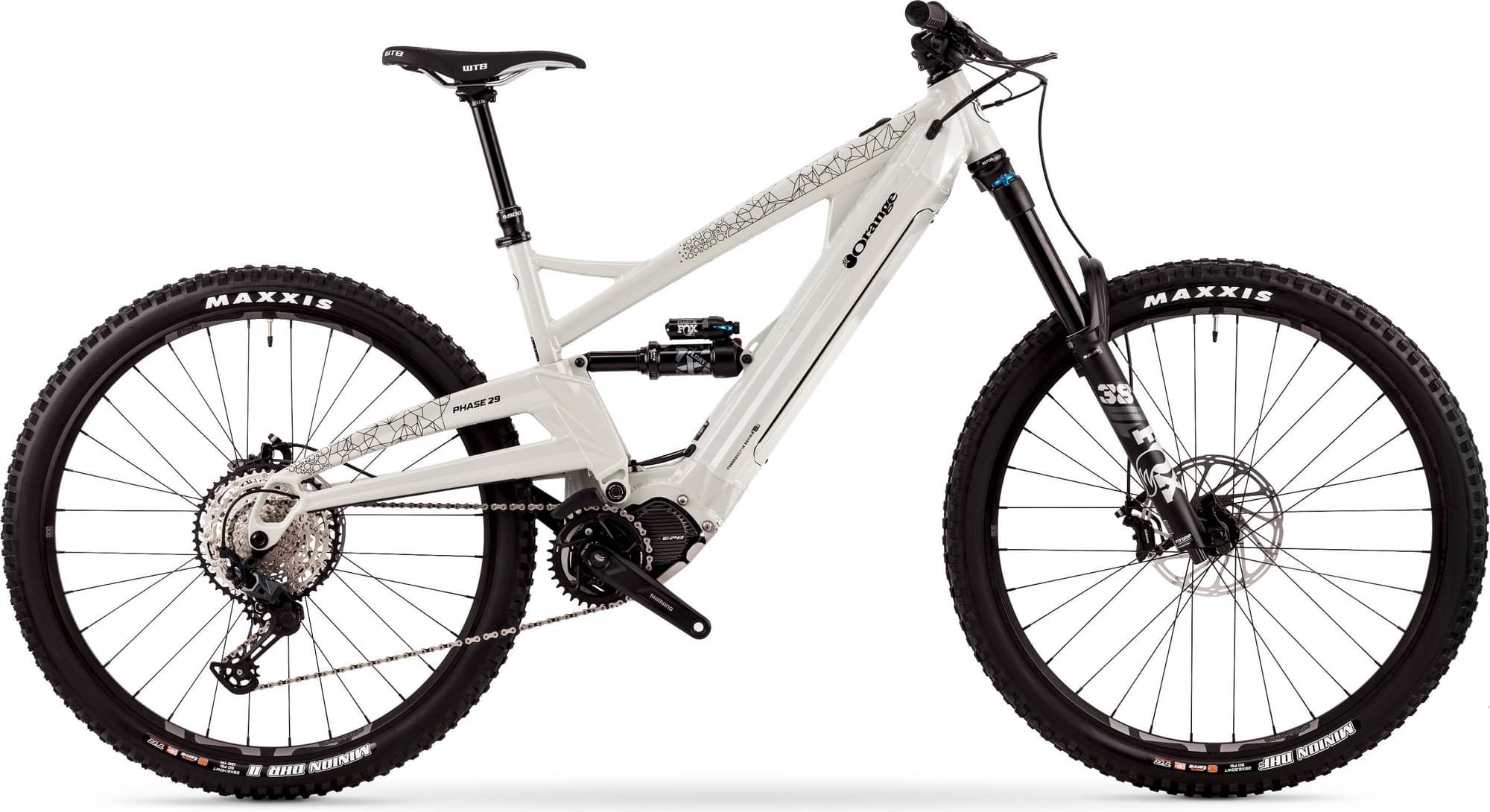

Orange Phase 29 Pro 2023
2023 E-bike
Estimate price |
9,888$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 155mm -
Fork Fox Performance Float 38
-
Groupset SLX, Shimano -
Suspension Full -
Motor Shimano mid-drive -
Battery Shimano E806 630wh Integrated battery Gen 2 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 29. Rear wheel travel: 155.
Suspension Fork
Fox Performance 38 Float 170mm 29
Rear Shock
Fox Float X Performance 230x57.5
Drivetrain
Rear Derailleur
Shimano SLX 12spd
Shift Levers
Shimano SLX 12spd
Cassette
Shimano SLX 10-51T 12spd
Crank
Shimano M600 165 E 34t
Bottom Bracket
Shimano EP8 DU Integrated
Chain
KMC 12spd
Wheels
Rims
Strange Front + Hope Pro 4 Rear, E13 LG1 EN 29
Tires
Maxxis Minion DHF 2.5 3c EXO+ / DHR II 2.4 3c EXO+ 29
Brakes
Brakes
SRAM Guide RE 200/200
Cockpit
Stem
Burgtec Enduro Black 42.5mm
Handlebar
Burgtec RideWide Enduro 800mm
Grips
Strange Grappler Lock-On
Headset
Acros 49mm Blocklock for Tapered Steerer
Seat
Saddle
WTB Silverado SL
Seatpost
SDG Tellis 150/170mm
Motor & Battery
Motor
Shimano EP801
Battery
Shimano E806 630wh Integrated battery Gen 2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.35 mm | 1.32 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Front Center | 818 mm | 838 mm | 859 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 130 mm | 130 mm | 130 mm |
| Stack | 648 mm | 648 mm | 657 mm |
| Reach | 461 mm | 481 mm | 498 mm |
| Top Tube Length | 623 mm | 643 mm | 663 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1272 mm | 1292 mm | 1313 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm |
| Standover Height | 729 mm | 754 mm | 778 mm |
| Rear Travel | 155 mm | 155 mm | 155 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
Phase 29 Pro is an Orange E Phase model. 23 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Orange Phase S 2023 is the most economical model, with a starting price of 8471$. Orange Phase 29 AXS 2023 on the other hand costs 11436$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Orange released this model in 2023, its price was 9001$. In conclusion, this e-bike price is 88.11% higher than the price of the average Enduro e-bike.
Phase 29 Pro components
Fork
The fork installed on this bike is the Fox Performance Float 38 model. The travel on this model is 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this e-bike has the Fox Float X Performance 230×57.5 model, with a travel of 155mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The Phase 29 Pro 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
