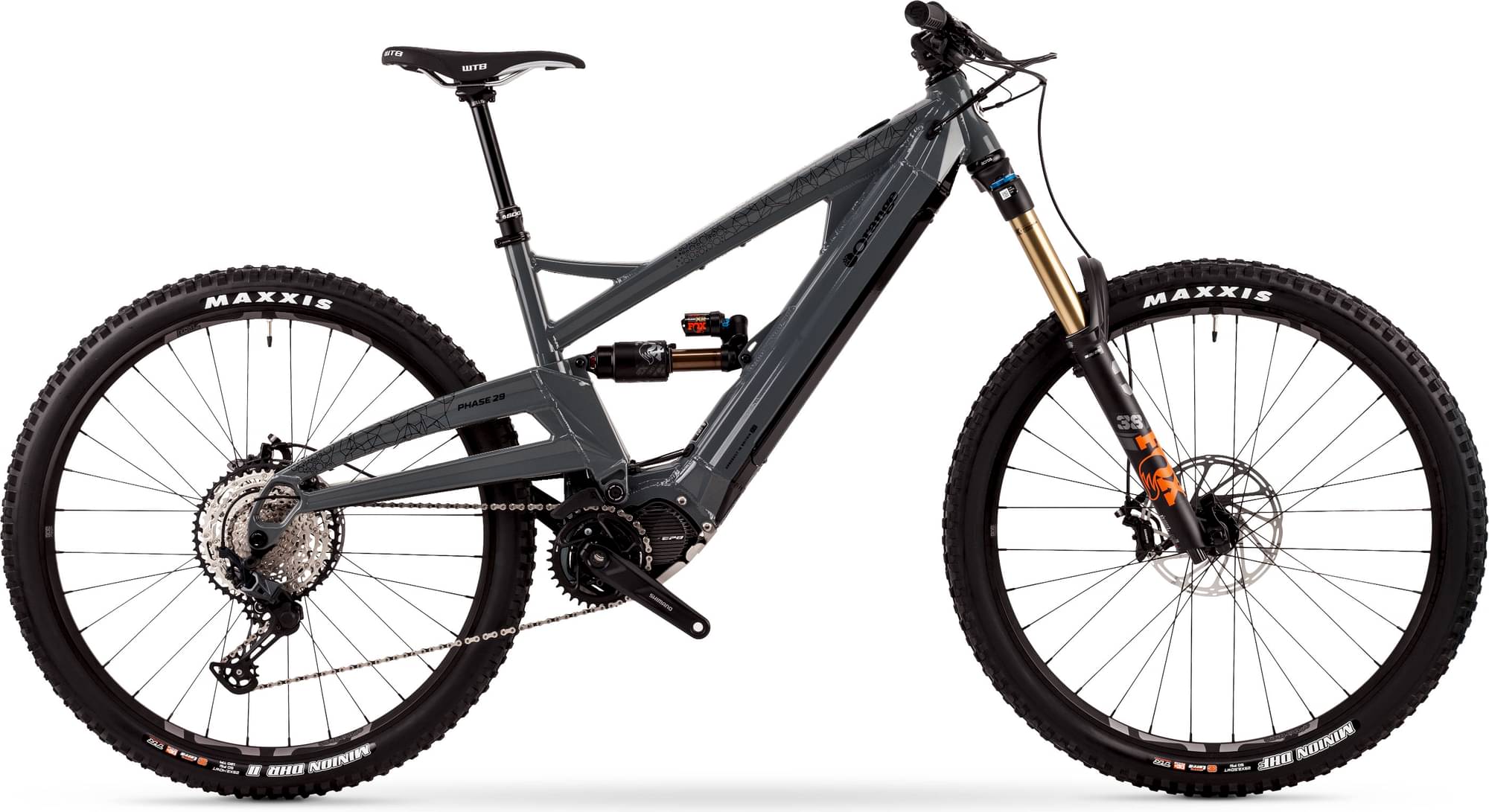

Orange Phase 29 Pro-Line 2023
2023 E-bike
Estimate price |
10,470$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 155mm -
Fork Fox Factory Float 38
-
Groupset SLX, Shimano -
Suspension Full -
Motor Shimano mid-drive -
Battery Shimano E806 630wh Integrated battery Gen 2 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 29. Rear wheel travel: 155.
Suspension Fork
Fox Factory 38 Float 170mm 29
Rear Shock
Fox Float X2 Factory 230x57.5
Drivetrain
Rear Derailleur
Shimano SLX 12spd
Shift Levers
Shimano SLX 12spd
Cassette
Shimano SLX 10-51T 12spd
Crank
Shimano M600 165 E 34t
Bottom Bracket
Shimano EP8 DU Integrated
Chain
KMC 12spd
Wheels
Rims
Strange Front + Hope Pro 4 Rear, E13 LG1 EN 29
Tires
Maxxis Minion DHF 2.5 3c EXO+ / DHR II 2.4 3c EXO+ 29
Brakes
Brakes
SRAM Guide RE 200/200
Cockpit
Stem
Burgtec Enduro Black 42.5mm
Handlebar
Burgtec RideWide Enduro 800mm
Grips
Strange Grappler Lock-On
Headset
Acros 49mm Blocklock for Tapered Steerer
Seat
Saddle
WTB Silverado SL
Seatpost
SDG Tellis 150/170mm
Motor & Battery
Motor
Shimano EP801
Battery
Shimano E806 630wh Integrated battery Gen 2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.35 mm | 1.32 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Front Center | 818 mm | 838 mm | 859 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 130 mm | 130 mm | 130 mm |
| Stack | 648 mm | 648 mm | 657 mm |
| Reach | 461 mm | 481 mm | 498 mm |
| Top Tube Length | 623 mm | 643 mm | 663 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1272 mm | 1292 mm | 1313 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm |
| Standover Height | 729 mm | 754 mm | 778 mm |
| Rear Travel | 155 mm | 155 mm | 155 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
Phase 29 Pro-Line is an Orange E Phase model. Orange released 23 e-bikes variations of this model so far. Take a sneak peek at all Orange E Phase e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Orange Phase S 2023 has a starting price of 8471$. Orange Phase 29 AXS 2023 on the other hand is the most expensive at 11436$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Orange Phase 29 Pro-Line price was 9530$. Comparing the average cost of an Enduro e-bike to this one, you will see that Phase 29 Pro-Line price is 99.16% more expensive.
Phase 29 Pro-Line components
Fork
The Fox Factory Float 38 is included from the factory. It has a travel distance of 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Fox Float X2 Factory 230×57.5 rear shock model, which has a travel of 155mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The Phase 29 Pro-Line 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Orange Phase 29 Pro-Line has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
