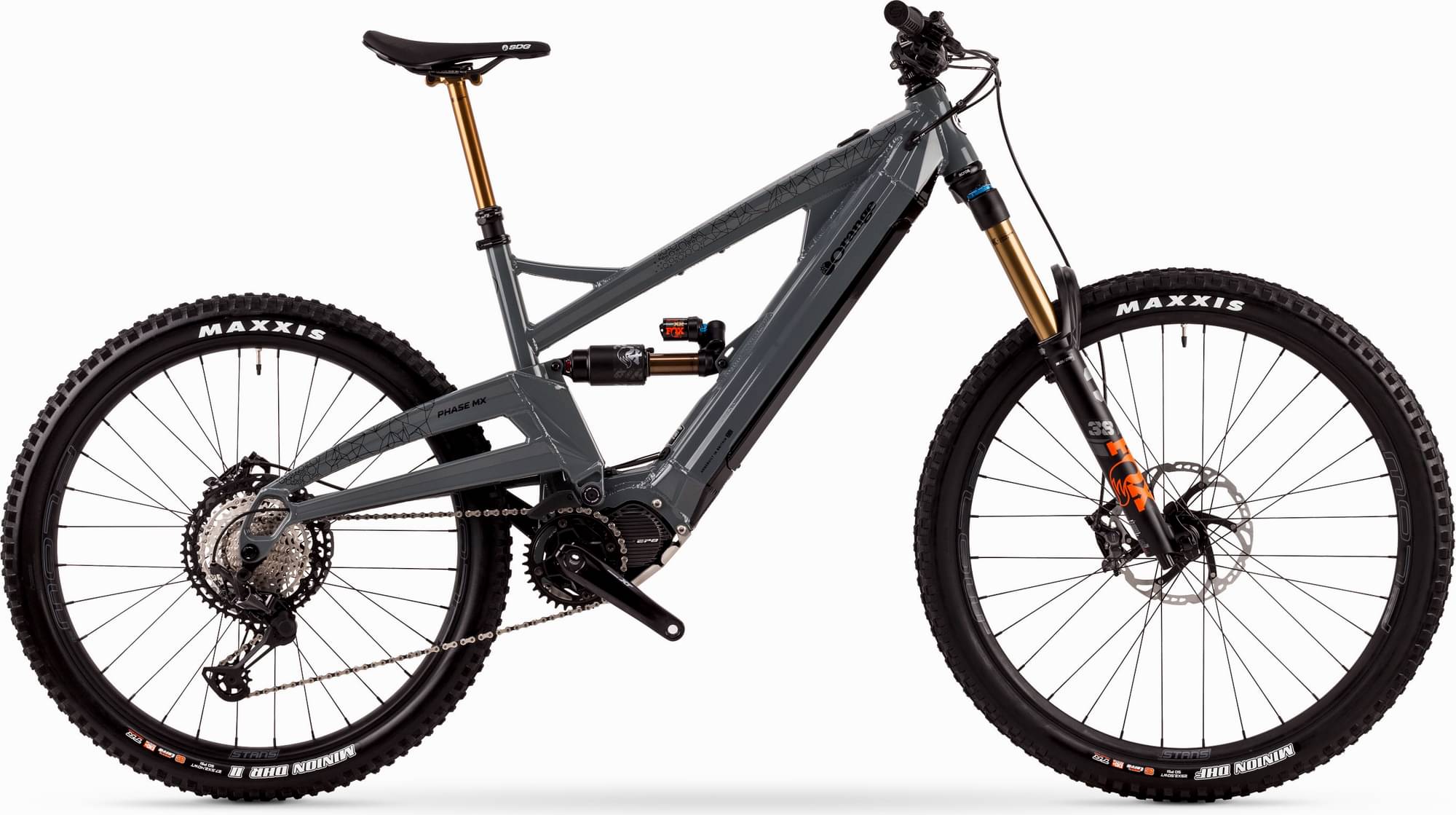

Orange Phase MX Factory 2023
2023 E-bike
Estimate price |
11,699$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 165mm -
Fork Fox Factory Float 38
-
Groupset XT, Shimano -
Suspension Full -
Motor Shimano mid-drive -
Battery Shimano E806 630wh Integrated battery Gen 2 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: MX - 29/27.5. Rear wheel travel: 165.
Suspension Fork
Fox Factory 38 Float 170mm 29
Rear Shock
Fox Float X2 Factory 230x65
Drivetrain
Rear Derailleur
Shimano XT 12spd
Shift Levers
Shimano XT 12spd
Cassette
Shimano XT 10-51T 12spd
Crank
Shimano E8050 34t Ring
Bottom Bracket
Shimano EP8 DU Integrated
Chain
KMC 12spd
Wheels
Rims
Stans Flow Mk4 + Hope Pro 4 (Black) 29 + 27
Tires
Maxxis Minion DHF 2.5 3c EXO+ 29 / DHR II 2.4 3c EXO+ 27.5
Brakes
Brakes
Shimano XT Trail 203/203
Cockpit
Stem
Burgtec Enduro Black 42.5mm
Handlebar
Renthal FatBar M35 800mm
Grips
Strange Grappler Lock-On
Headset
Acros 49mm Blocklock for Tapered Steerer
Seat
Saddle
SDG Strange Bel Air III
Seatpost
Fox Factory Transfer 175mm Drop
Motor & Battery
Motor
Shimano EP801
Battery
Shimano E806 630wh Integrated battery Gen 2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.35 mm | 1.32 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Front Center | 818 mm | 838 mm | 860 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 129 mm |
| Stack | 647 mm | 647 mm | 656 mm |
| Reach | 461 mm | 481 mm | 498 mm |
| Top Tube Length | 637 mm | 645 mm | 660 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1253 mm | 1273 mm | 1295 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm |
| Standover Height | 736 mm | 758 mm | 781 mm |
| Rear Travel | 165 mm | 165 mm | 165 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
Phase MX Factory is part of the Orange E Phase model. There are 23 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Orange Phase S 2023 is the most affordable e-bike of this model and has a price of 8471$. On the other hand, Orange Phase 29 AXS 2023, is the most expensive and costs 11436$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 10801$. Comparing the average cost of an Enduro e-bike to this one, you will see that Phase MX Factory price is 125.73% more expensive.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 38 model. The travel on this model is 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this e-bike is Fox Float X2 Factory 230×65, with a travel distance of 165mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on Phase MX Factory are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Orange Phase MX Factory has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Phase MX Factory comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Orange Phase MX Factory includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
