Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" / 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox ZEB Ultimate
-
Groupset SLX, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano STEPS E8035, integrated, removable -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 38 Performance, 42mm offset, Options: FOX FLOAT 38 Factory, RockShox ZEB Ultimate
Rear Shock
FOX FLOAT DPX2 Performance, 230mm x 65mm, Options: FOX FLOAT X2 Factory, RockShox Super Deluxe Ultimate
Drivetrain
Rear Derailleur
Shimano SLX M7100, 12-speed
Front Derailleur
None
Shift Levers
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
Shimano M600, 165mm length
Chain
KMC, 12-speed
Chain Guide
Shimano CDE80 upper slider, Option: OneUp upper slider
Pedals
None, Option: Burgtec Penthouse Flat MK5
Wheels
Front Hub
Front: Strange, 110x15mm Boost, Rear: Hope Tech Pro 4, 148x12mm Boost, MICRO SPLINE driver
Rear Hub
Front: Strange, 110x15mm Boost, Rear: Hope Tech Pro 4, 148x12mm Boost, MICRO SPLINE driver
Rims
WTB ST Light i30, 30mm inner width
Tires
Front: Maxxis Minion DHF, 3C, EXO+, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C, EXO+, 27.5" x 2.4"
Brakes
Brakes
SRAM Guide RE, 4-piston, 200mm rotors, Option: Shimano Deore XT Trail, 4-piston, 203mm rotors, Option: Shimano SLX Trail, 4-piston, 203mm rotors
Brake Levers
SRAM Guide RE, Option: Shimano Deore XT Trail, Option: Shimano SLX Trail
Cockpit
Stem
Burgtec Enduro, 42.5mm length
Handlebar
Burgtec RideWide Enduro, 800mm width
Grips
Strange Grappler, lock-on
Headset
Cane Creek, ZS49/28.6 upper, EC49/40 lower
Seat
Saddle
WTB Silverado Comp
Seatpost
SDG Tellis dropper, 150mm drop, Option: FOX Transfer Performance Elite dropper, 175mm drop
Motor & Battery
Motor
Shimano STEPS EP8, 85Nm max torque, 250W
Battery
Shimano STEPS E8035, integrated, removable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Stack | 620 mm | 627 mm | 636 mm |
| Reach | 465 mm | 486 mm | 503 mm |
| Top Tube Length | 623 mm | 643 mm | 663 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1246 mm | 1266 mm | 1288 mm |
| Standover Height | 722 mm | 750 mm | 773 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |

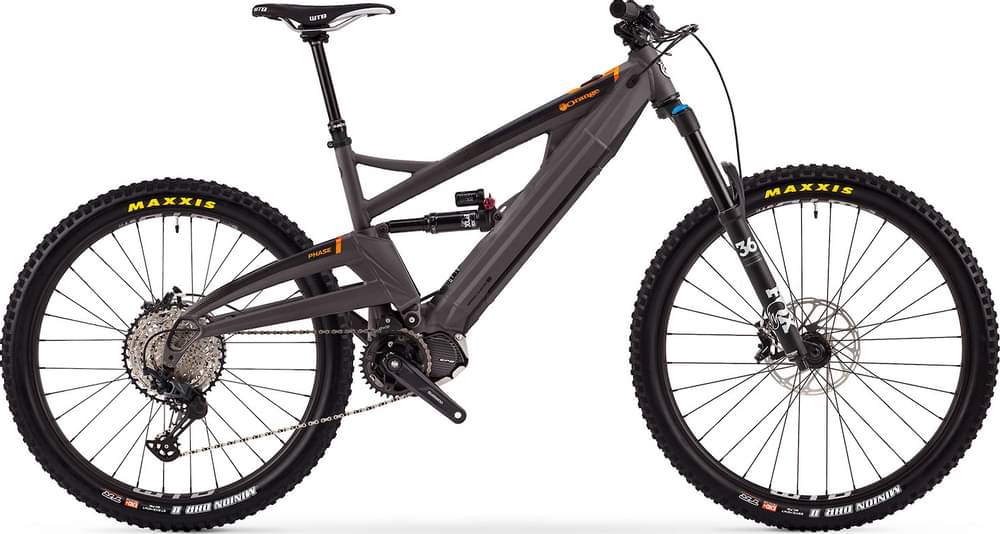

About this model
Phase Pro is part of the Orange E Phase model. There are 8 e-bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the Orange Phase Pro 2021 has a starting price of 7000$. Orange Phase XTR 2021 on the other hand is the most expensive at 8800$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Orange released this model in 2021, its price was 7000$. Comparing this to the average Enduro e-bike price, we see that the price is 46.29% higher.
Overview of components
Fork
The Phase Pro comes factory-installed with the RockShox ZEB Ultimate fork. This has a travel range of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Orange Phase Pro e-bike has the FOX FLOAT DPX2 Performance model installed, and has a travel of 160mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Phase Pro e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Phase Pro comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
