Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 36
-
Groupset XTR, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano STEPS E8035, integrated -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 36 FLOAT Factory, 42mm offset
Rear Shock
FOX X2 FLOAT Factory, 230mm x 65mm
Drivetrain
Rear Derailleur
Shimano XTR, 12-speed
Front Derailleur
N/A
Shift Levers
Shimano XTR, 12-speed
Cassette
Shimano XTR, 12-speed, 10-51 tooth
Crank
Shimano E8050
Chain
Shimano XTR, 12-speed
Chain Guide
MRP 1x E-Bike
Pedals
None, Option: Burgtec MK4 Composite
Wheels
Front Hub
DT Swiss 350, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
DT Swiss 350, 110x15mm Boost front, 148x12mm Boost rear
Rims
Stan's NoTubes Flow MK3 (29" front, 27.5" rear)
Tires
Maxxis Minion DHR II, 3C, EXO+, 2.4" (29" front, 27.5" rear)
Brakes
Brakes
Shimano Saint, 203mm rotors
Brake Levers
Shimano Saint
Cockpit
Stem
Burgtec MK2 Enduro, 35mm length
Handlebar
Renthal Fatbar, 800mm width, 35mm bore
Grips
Strange 130, single lock-on, black
Headset
Hope Tech, ZS49/28.6 upper, EC49/40 lower, for tapered steerer
Seat
Saddle
SDG Radar, CrMo rails, black/black
Seatpost
FOX Transfer Factory dropper, 150mm or 170mm drop
Motor & Battery
Motor
Shimano STEPS E8000, 70Nm max torque
Battery
Shimano STEPS E8035, integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Stack | 620 mm | 627 mm | 636 mm |
| Reach | 465 mm | 486 mm | 503 mm |
| Top Tube Length | 623 mm | 643 mm | 663 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1246 mm | 1266 mm | 1288 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm |
| Standover Height | 722 mm | 750 mm | 773 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

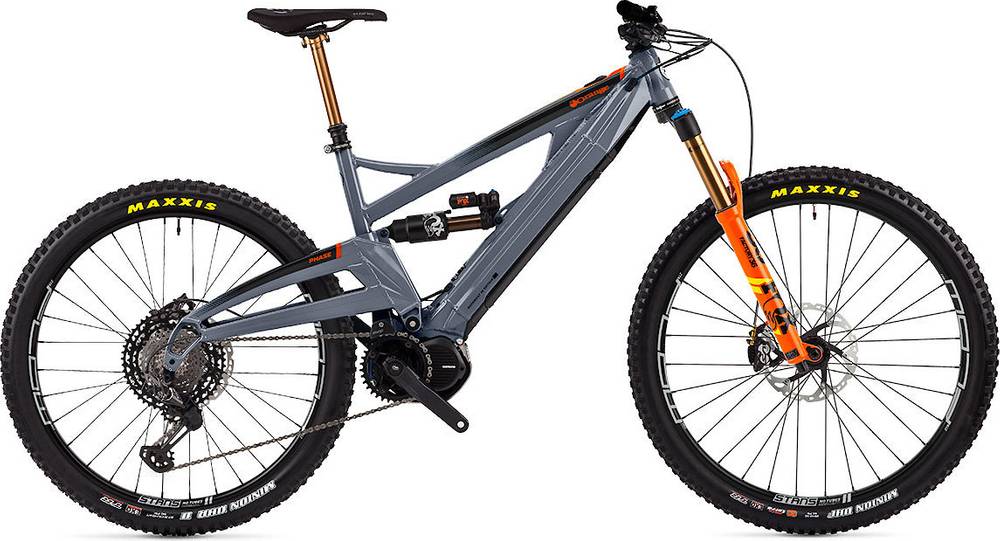

Phase XTR is an Orange E Phase model. 8 e-bikes variations carry this model name so far. You can easily view all of the Orange E Phase e-bikes models from 2020, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The Phase XTR comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Phase XTR has a rear shock with a travel of 160mm. The model FOX X2 FLOAT Factory is the one installed in this e-bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Orange Phase XTR 2020, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Phase XTR has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Orange Phase XTR includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
