Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 110mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX Factory 34 Float
Rear Shock
FOX Float DPS Factory, 190mm x 40mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM CS XG-1295 Eagle, 10 x 50 tooth, 12-speed
Crank
SRAM X01 Eagle, carbon
Bottom Bracket
SRAM GXP team
Chain
SRAM X01 Eagle, silver
Chain Guide
None included
Pedals
None included
Wheels
Front Hub
Hope Pro 4, black or orange, Boost rear
Rear Hub
Hope Pro 4, black or orange, Boost rear
Rims
Race Face Arc 27, grey
Tires
Front: Maxxis Minion DHF 3c EXO TR, 2.3", Rear: Maxxis High Roller II 2
Brakes
Brakes
Hope Tech 3 E4 (black or orange) with 203mm front/180mm rotors
Brake Levers
Hope Tech 3 E4
Cockpit
Stem
Race Face Turbine R, 50mm length, 35mm clamp
Handlebar
Race Face Next R, carbon, stealth, 800mm
Grips
Strange 130, single lock-on, black
Headset
Hope, 49mm, black or orange
Seat
Saddle
SDG Fly MTN, chromoly rail, black/orange
Seatpost
RockShox Reverb with 1x remote, 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.34 mm | 1.31 mm |
| Bottom Bracket Height | 327 mm | 327 mm | 327 mm |
| Stack | 603.8 mm | 612.8 mm | 621.8 mm |
| Reach | 441.8 mm | 458.8 mm | 475.8 mm |
| Top Tube Length | 607.8 mm | 627.8 mm | 647.8 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 431.8 mm | 482.6 mm | 533.4 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1164 mm | 1185 mm | 1205 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm |
| Standover Height | 712 mm | 732 mm | 780 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |

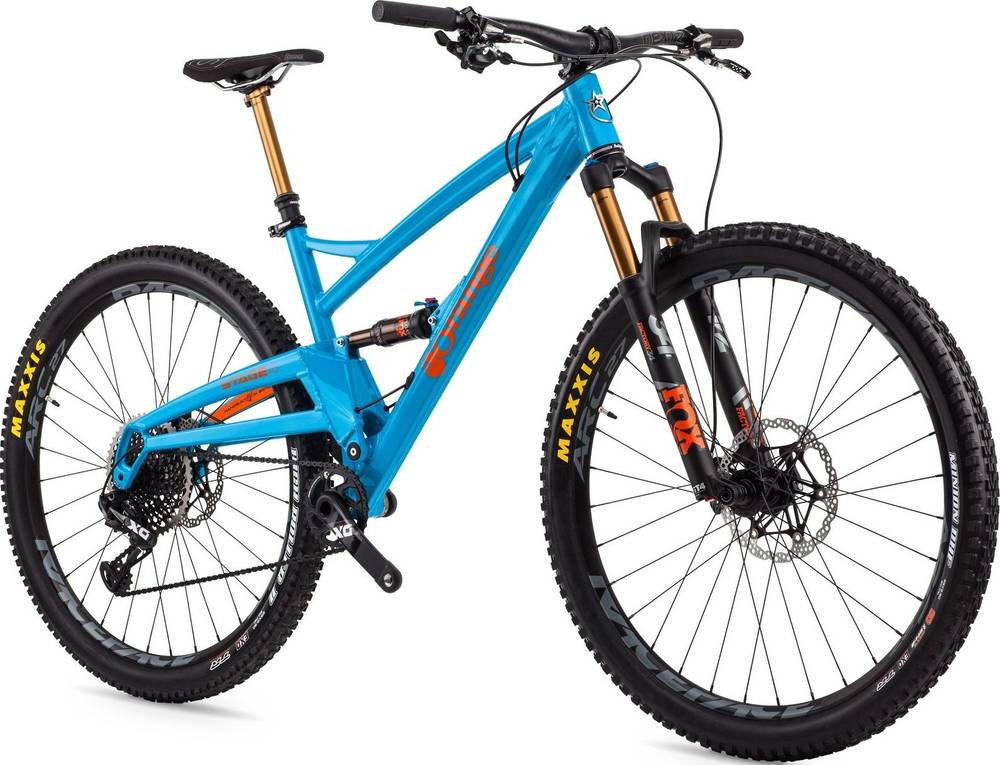

Model Overview
Stage 4 Factory completes the Orange Stage model. 43 bikes variations carry this model name so far. Take a sneak peek at all Orange Stage bikes models from 2018, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Stage 4 Factory components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is FOX Float DPS Factory, with a travel distance of 110mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The wheels on Stage 4 Factory are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Orange Stage 4 Factory bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
