Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 110mm -
Fork Fox Performance Float 34
-
Groupset GX, GX Eagle -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX Performance 34 Float
Rear Shock
FOX Float DPS Performance, 190mm x 40mm
Drivetrain
Rear Derailleur
SRAM GX
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM CS XG 1275 Eagle, 10-50 tooth, 12-speed
Crank
Truvativ Descendant 6k Eagle
Bottom Bracket
SRAM GXP
Chain
SRAM GX Eagle
Chain Guide
Not included
Pedals
None included
Wheels
Front Hub
Joytech, Boost rear
Rear Hub
Joytech, Boost rear
Rims
Kore Realm 2.7
Tires
Maxxis High Roller II, 2.3" EXO TR
Brakes
Brakes
Shimano SLX with 203mm front/180mm rear rotors
Brake Levers
Shimano SLX
Cockpit
Stem
Race Face Ride Stealth, 50mm length, Optional updgrades: Hope, 35mm length, black or orange / Renthal Apex, 50mm length
Handlebar
Race Face Chester Stealth, 780mm width
Grips
Strange 130 Lock-on, black or orange
Headset
Cane Creek, 49mm
Seat
Saddle
Kore Conex
Seatpost
Race Face Aeffect Dropper, 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.34 mm | 1.31 mm |
| Bottom Bracket Height | 327 mm | 327 mm | 327 mm |
| Stack | 603.8 mm | 612.8 mm | 621.8 mm |
| Reach | 441.8 mm | 458.8 mm | 475.8 mm |
| Top Tube Length | 607.8 mm | 627.8 mm | 647.8 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 431.8 mm | 457.2 mm | 508 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1164 mm | 1185 mm | 1205 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm |
| Standover Height | 712 mm | 732 mm | 780 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |

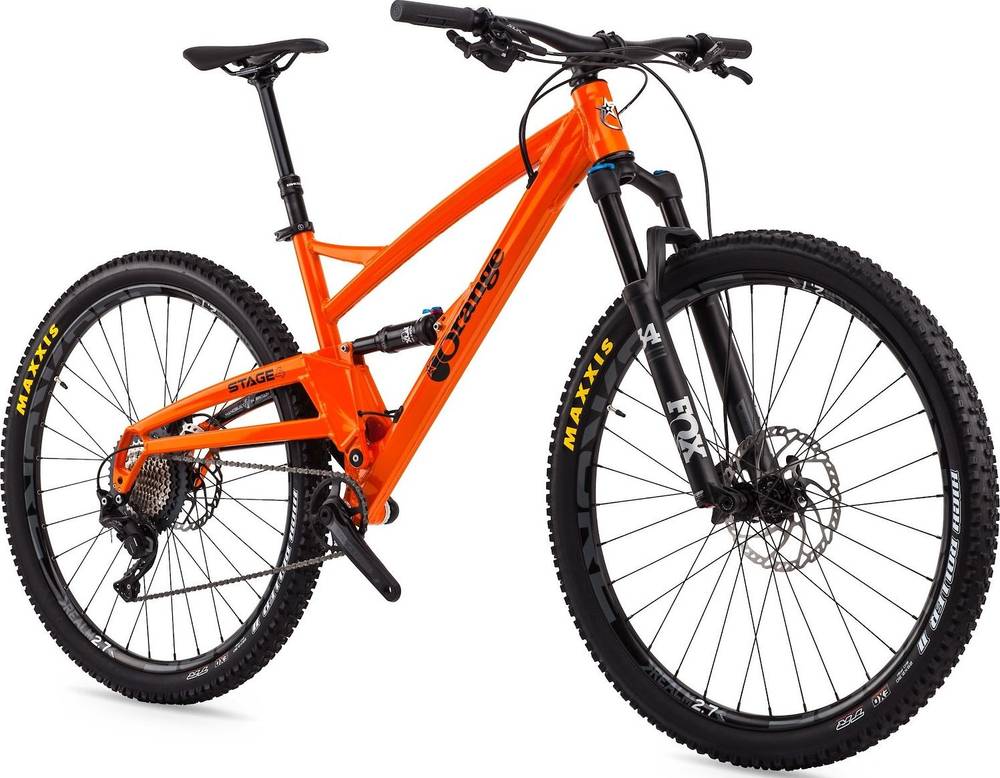

About this model
Stage 4 Pro GX Eagle Build is part of the Orange Stage model. Orange launched 43 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the FOX Float DPS Performance model, with a travel of 110mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Orange Stage 4 Pro GX Eagle Build 2018, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Orange Stage 4 Pro GX Eagle Build has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Stage 4 Pro GX Eagle Build comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Orange Stage 4 Pro GX Eagle Build includes a dropper post. Therefore, climbing or descending will be a breeze.
