Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 110mm -
Fork Fox Performance Float 34
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX Performance 34 Float
Rear Shock
FOX Float DPS Performance, 190mm x 40mm
Drivetrain
Rear Derailleur
Shimano XT Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano SLX, 11-speed
Cassette
Shimano SLX, 11-46 tooth, 11-speed
Crank
Race Face Aeffect, direct mount
Bottom Bracket
Race Face
Chain
SRAM PC1110
Chain Guide
Not included
Pedals
None included
Wheels
Front Hub
Joytech, Boost rear
Rear Hub
Joytech, Boost rear
Rims
Kore Realm 2.7
Tires
Maxxis High Roller II, 2.3" EXO TR
Brakes
Brakes
Shimano SLX with 203mm front/180mm rear rotors
Brake Levers
Shimano SLX
Cockpit
Stem
Race Face Ride Stealth, 50mm length, Optional updgrades: Hope, 35mm length, black or orange / Renthal Apex, 50mm length
Handlebar
Race Face Chester Stealth, 780mm width
Grips
Strange 130 Lock-on, black or orange
Headset
Cane Creek, 49mm
Seat
Saddle
Kore Conex
Seatpost
Race Face Aeffect Dropper, 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.34 mm | 1.31 mm |
| Bottom Bracket Height | 327 mm | 327 mm | 327 mm |
| Stack | 603.8 mm | 612.8 mm | 621.8 mm |
| Reach | 441.8 mm | 458.8 mm | 475.8 mm |
| Top Tube Length | 607.8 mm | 627.8 mm | 647.8 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 431.8 mm | 457.2 mm | 508 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1164 mm | 1185 mm | 1205 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm |
| Standover Height | 712 mm | 732 mm | 780 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

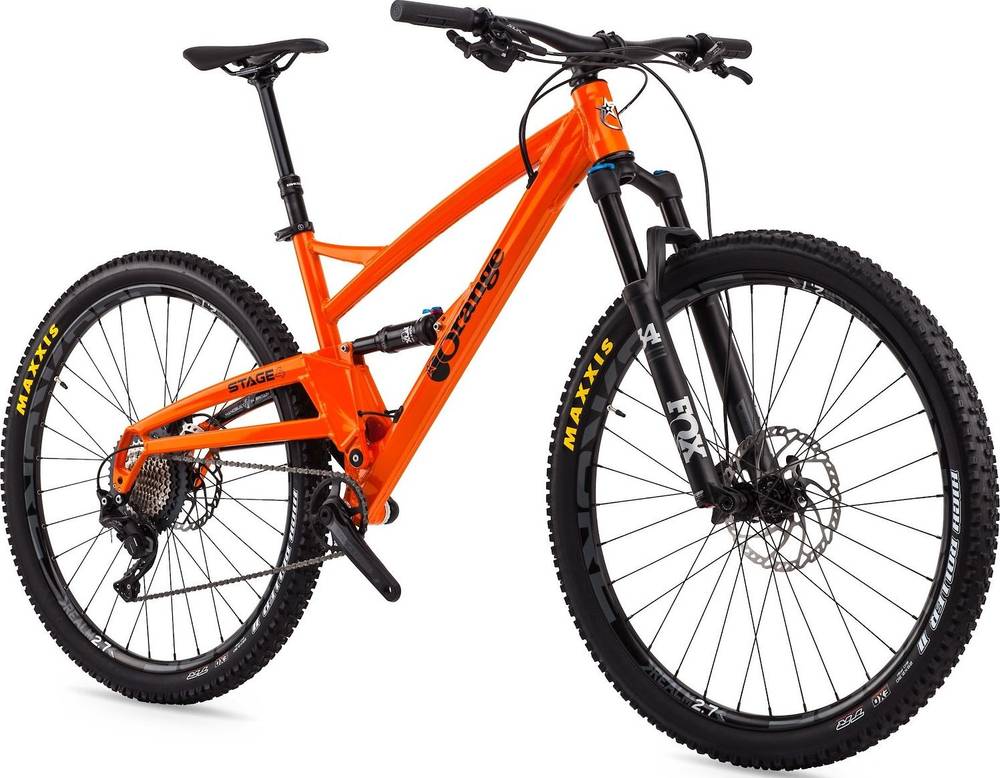

Stage 4 Pro Shimano XT Build is part of the Orange Stage model. Orange released 43 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the FOX Float DPS Performance rear shock model, which has a travel of 110mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Orange Stage 4 Pro Shimano XT Build 2018, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Orange Stage 4 Pro Shimano XT Build has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Orange Stage 4 Pro Shimano XT Build bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Orange Stage 4 Pro Shimano XT Build comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
