Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 110mm -
Fork RockShox Pike RCT3
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Pike RCT3
Rear Shock
RockShox Deluxe RT3, 190mm x 40mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM CS XG 1275 Eagle, 10-50 tooth, 12-speed
Crank
SRAM X1 Carbon Eagle
Bottom Bracket
SRAM GXP Team
Chain
SRAM GX Eagle
Chain Guide
Not included
Pedals
None included
Wheels
Front Hub
Hope Pro 4, black
Rear Hub
Hope Pro 4, black
Rims
Race Face Arc 27, grey
Tires
Front: Maxxis Minion DHF, 2.3" 3c EXO TR, Rear: Maxxis Minion High Roller II, 2.0"
Brakes
Brakes
SRAM Guide R with 180mm rotors
Brake Levers
SRAM Guide R
Cockpit
Stem
Renthal Apex, 50mm length
Handlebar
Renthal Fat Bar, 800mm width
Grips
Strange 130 Lock-on, black or orange
Headset
Cane Creek, 49mm
Seat
Saddle
SDG Fly MTN, steel rail, black/grey
Seatpost
RockShox Reverb with 1x remote, 125mm or 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.34 mm | 1.31 mm |
| Bottom Bracket Height | 327 mm | 327 mm | 327 mm |
| Stack | 603.8 mm | 612.8 mm | 621.8 mm |
| Reach | 441.8 mm | 458.8 mm | 475.8 mm |
| Top Tube Length | 607.8 mm | 627.8 mm | 647.8 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 431.8 mm | 457.2 mm | 508 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1164 mm | 1185 mm | 1205 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm |
| Standover Height | 712 mm | 732 mm | 780 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

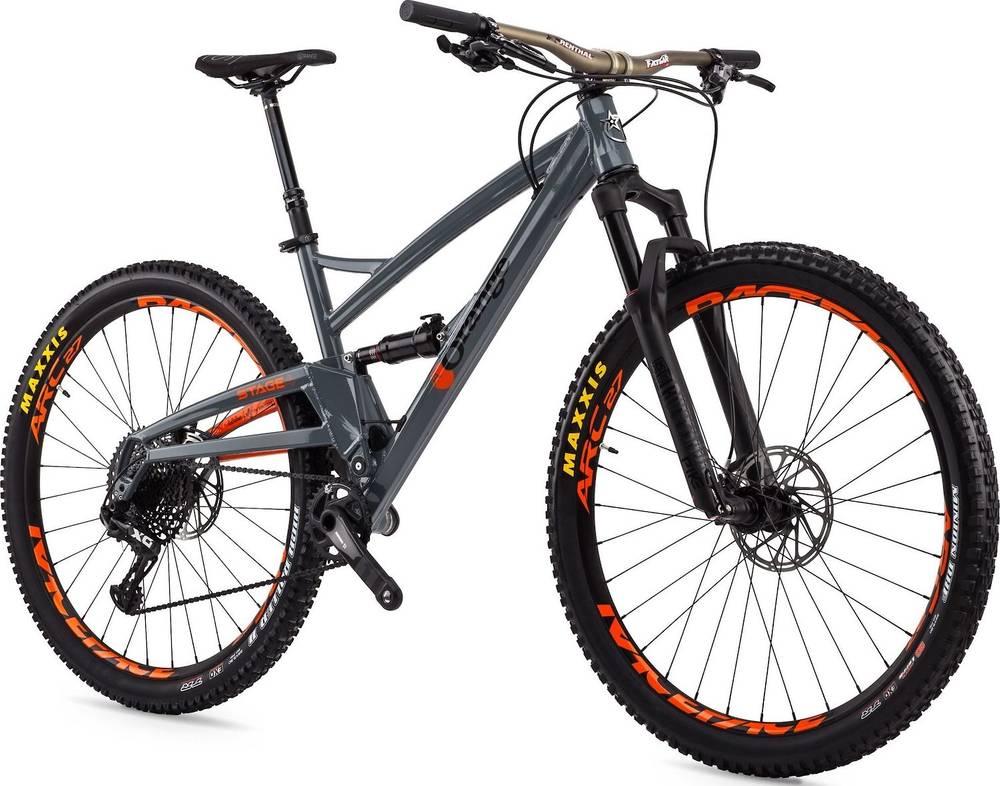

Stage 4 RS X01 Eagle Build is an Orange Stage model. Orange launched 43 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
This bike has the RockShox Pike RCT3 fork installed. The fork’s travel is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Stage 4 RS X01 Eagle Build has a rear shock with a travel of 110mm. The model RockShox Deluxe RT3 is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Stage 4 RS X01 Eagle Build bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Orange Stage 4 RS X01 Eagle Build has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
