Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 135mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX Factory 36 Float, black or orange
Rear Shock
FOX Float X2 Factory, 200mm x 51mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM CS XG 1295 Eagle, 10-50 tooth, 12-speed
Crank
SRAM X01 Carbon Eagle
Bottom Bracket
SRAM GXP Team
Chain
SRAM X01 Eagle, silver
Chain Guide
Not included
Pedals
None included
Wheels
Front Hub
Hope Pro 4, Boost rear, black
Rear Hub
Hope Pro 4, Boost rear, black
Rims
Race Face Arc 30, grey
Tires
Front: Maxxis Minion DHF, 2.3" 3c EXO TR, Rear: Maxxis Minion High Roller II, 2.0"
Brakes
Brakes
Hope Tech 3 E4 with 203mm front/180mm rear rotors, black or orange
Brake Levers
Hope Tech 3 E4
Cockpit
Stem
Race Face Turbine R, 50mm length
Handlebar
Race Face Next R Carbon Stealth, 800mm width
Grips
Strange 130 Lock-on, black or orange
Headset
Hope, 49mm, black or orange
Seat
Saddle
SDG Fly MTN, cromo rail, black/grey
Seatpost
Fox Factory Transfer, 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.4 mm | 1.37 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm |
| Stack | 621.8 mm | 630.8 mm | 639.8 mm |
| Reach | 433.8 mm | 450.8 mm | 467.8 mm |
| Top Tube Length | 612.8 mm | 632.8 mm | 652.8 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 431.8 mm | 457.2 mm | 508 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1180 mm | 1201 mm | 1222 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm |
| Standover Height | 717 mm | 739 mm | 792 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

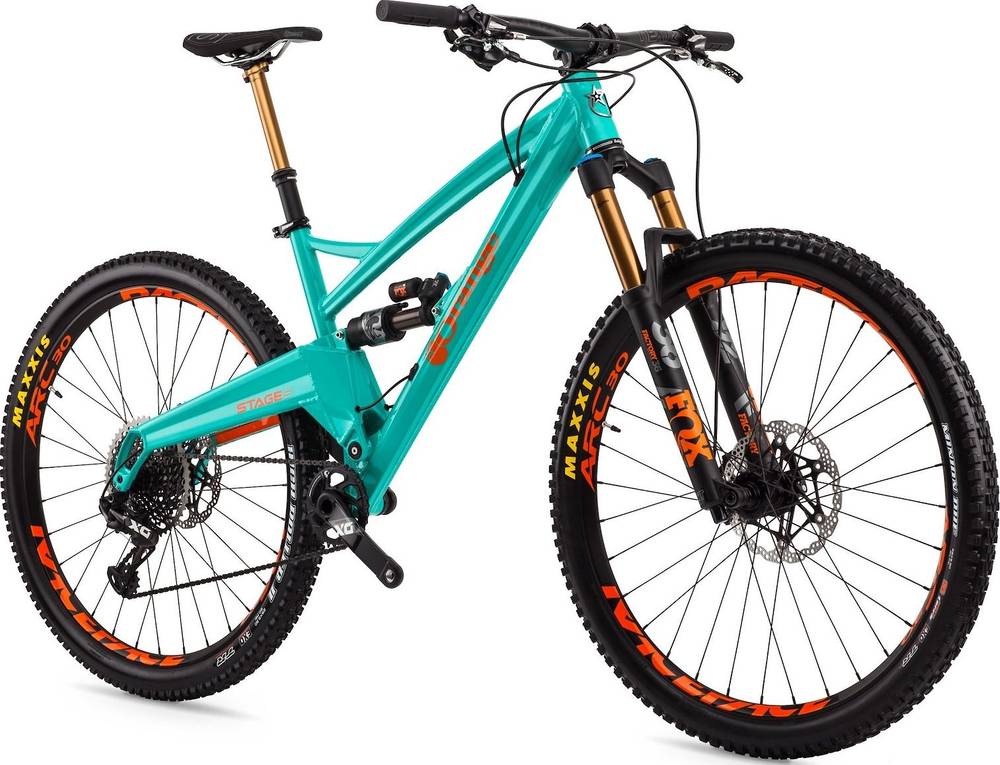

Stage 5 Factory is an Orange Stage model. 43 bikes variations carry this model name so far. You can easily view all of the Orange Stage bikes models from 2018, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Stage 5 Factory components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the FOX Float X2 Factory rear shock model, which has a travel of 135mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Orange Stage 5 Factory 2018, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Stage 5 Factory comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Stage 5 Factory. Therefore, climbing or descending will be a breeze.
