Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 135mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 34 Performance
Rear Shock
FOX Float DPS Performance, 200x51mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM NX Eagle, 12-speed
Cassette
SRAM NX Eagle 1230, 11-50 tooth, 12-speed
Crank
SRAM Descendant 6K DUB
Bottom Bracket
SRAM DUB
Chain
SRAM NX Eagle, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Joytech
Rear Hub
Joytech
Rims
Kore Realm 3.0
Tires
Maxxis High Roller II 2.3", EXO, TR
Brakes
Brakes
Front: Shimano SLX, 203mm rotor, Rear: Shimano SLX, 180mm rotor
Brake Levers
Shimano SLX
Cockpit
Stem
Race Face Chester, 40mm
Handlebar
Race Face Chester, 780mm, 35mm diameter
Grips
Strange 130 Lock-on
Headset
Cane Creek 49mm
Seat
Saddle
Kore Conex
Seatpost
SDG Tellis
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.4 mm | 1.37 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm |
| Stack | 621.8 mm | 630.8 mm | 639.8 mm |
| Reach | 433.8 mm | 450.8 mm | 467.8 mm |
| Top Tube Length | 612.8 mm | 632.8 mm | 652.8 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 431.8 mm | 475.2 mm | 508 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1180 mm | 1201 mm | 1222 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm |
| Standover Height | 717 mm | 739 mm | 792 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |

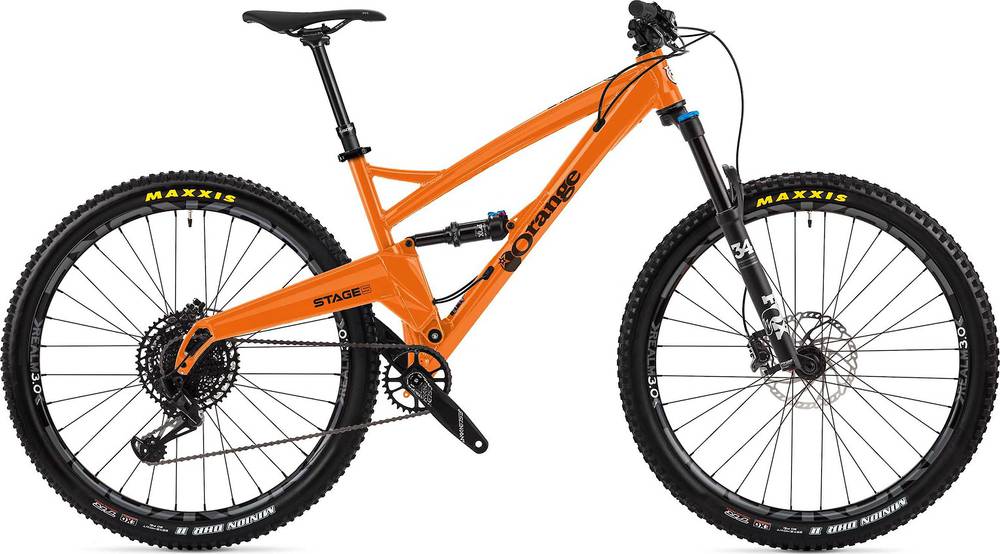

Model Overview
Stage 5 Pro belongs to the Orange Stage model. 43 bikes variations carry this model name so far. You can easily view all of the Orange Stage bikes models from 2019, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
This bike has the Fox Performance Float 34 fork installed. The fork’s travel is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is FOX Float DPS Performance, with a travel distance of 135mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the Stage 5 Pro bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Stage 5 Pro comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Stage 5 Pro. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
