Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 135mm -
Fork Fox Performance Float 34
-
Groupset GX, GX Eagle -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX Performance 34 Float
Rear Shock
FOX Float DPS Performance, 200mm x 51mm
Drivetrain
Rear Derailleur
SRAM GX
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM CS XG 1275 Eagle, 10-50 tooth, 12-speed
Crank
Truvativ Descendant 6k Eagle
Bottom Bracket
SRAM GXP
Chain
SRAM GX Eagle
Chain Guide
Not included
Pedals
None included
Wheels
Front Hub
Joytech, Boost rear
Rear Hub
Joytech, Boost rear
Rims
Kore Realm 3.0
Tires
Maxxis High Roller II, 2.3" EXO TR
Brakes
Brakes
Shimano SLX with 203mm front/180mm rear rotors
Brake Levers
Shimano SLX
Cockpit
Stem
Race Face Ride Stealth, 50mm length
Handlebar
Race Face Chester Stealth, 780mm width
Grips
Strange 130 Lock-on, black or orange
Headset
Cane Creek, 49mm
Seat
Saddle
Kore Conex
Seatpost
Race Face Aeffect Dropper, 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.4 mm | 1.37 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm |
| Stack | 621.8 mm | 630.8 mm | 639.8 mm |
| Reach | 433.8 mm | 450.8 mm | 467.8 mm |
| Top Tube Length | 612.8 mm | 632.8 mm | 652.8 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 431.8 mm | 457.2 mm | 508 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1180 mm | 1201 mm | 1222 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm |
| Standover Height | 717 mm | 739 mm | 792 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |

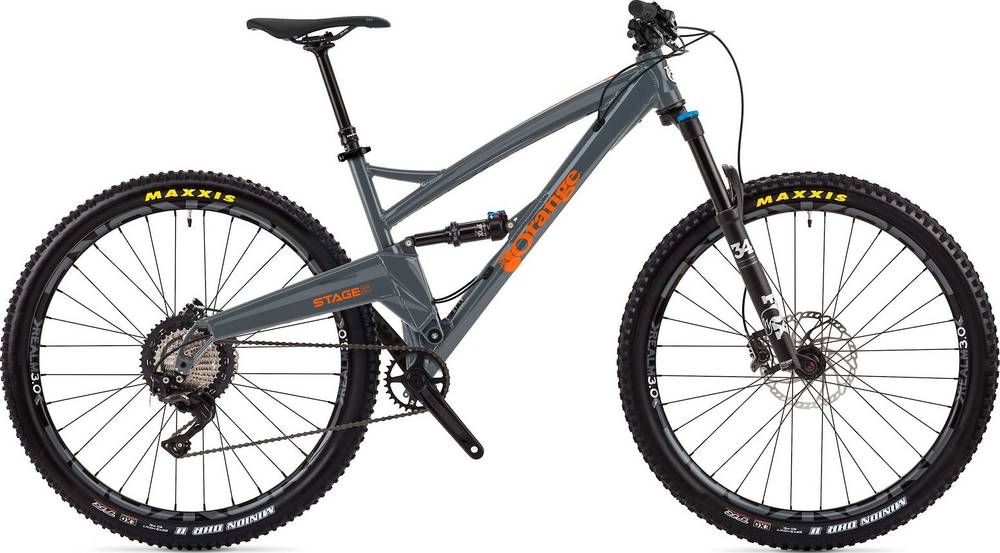

Model Overview
Stage 5 Pro GX Eagle Build is an Orange Stage model. Orange released 43 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
This bike has the Fox Performance Float 34 fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is FOX Float DPS Performance, with a travel distance of 135mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
As for the wheels, Orange Stage 5 Pro GX Eagle Build 2018, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Stage 5 Pro GX Eagle Build comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Orange Stage 5 Pro GX Eagle Build bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Orange Stage 5 Pro GX Eagle Build comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
