Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 135mm -
Fork Fox Performance Float 34
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX Performance 34 Float
Rear Shock
FOX Float DPS Performance, 200mm x 51mm
Drivetrain
Rear Derailleur
Shimano XT Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano SLX, 11-speed
Cassette
Shimano SLX, 11-46 tooth, 11-speed
Crank
Race Face Aeffect, direct mount
Bottom Bracket
Race Face
Chain
SRAM PC1110
Chain Guide
Not included
Pedals
None included
Wheels
Front Hub
Joytech, Boost rear
Rear Hub
Joytech, Boost rear
Rims
Kore Realm 3.0
Tires
Maxxis High Roller II, 2.3" EXO TR
Brakes
Brakes
Shimano SLX with 203mm front/180mm rear rotors
Brake Levers
Shimano SLX
Cockpit
Stem
Race Face Ride Stealth, 50mm length
Handlebar
Race Face Chester Stealth, 780mm width
Grips
Strange 130 Lock-on, black or orange
Headset
Cane Creek, 49mm
Seat
Saddle
Kore Conex
Seatpost
Race Face Aeffect Dropper, 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.4 mm | 1.37 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm |
| Stack | 621.8 mm | 630.8 mm | 639.8 mm |
| Reach | 433.8 mm | 450.8 mm | 467.8 mm |
| Top Tube Length | 612.8 mm | 632.8 mm | 652.8 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 431.8 mm | 457.2 mm | 508 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1180 mm | 1201 mm | 1222 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm |
| Standover Height | 717 mm | 739 mm | 792 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

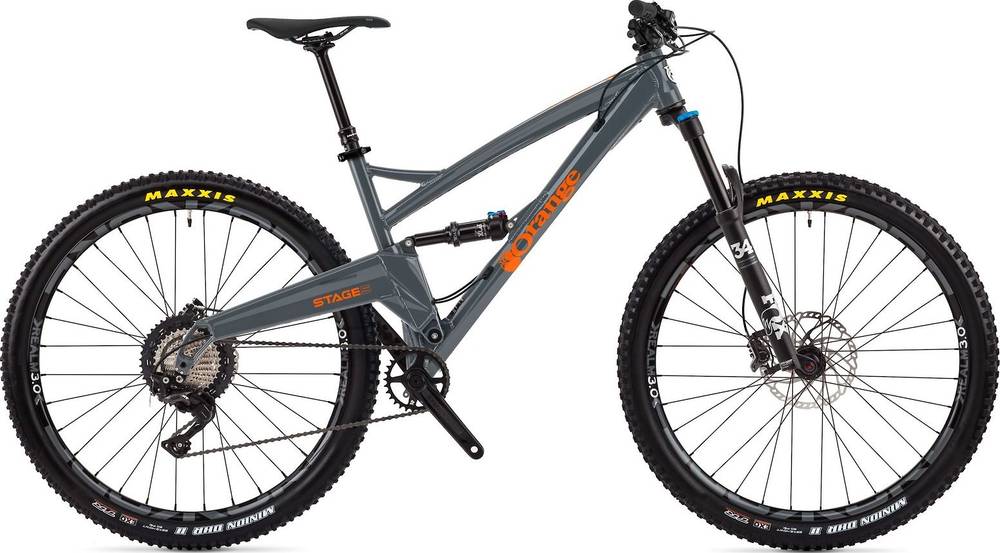

Stage 5 Pro Shimano XT Build completes the Orange Stage model. 43 bikes variations carry this model name so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
This bike has the Fox Performance Float 34 fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Stage 5 Pro Shimano XT Build has a rear shock with a travel of 135mm. The model FOX Float DPS Performance is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Stage 5 Pro Shimano XT Build model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Stage 5 Pro Shimano XT Build has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Orange Stage 5 Pro Shimano XT Build bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
The Orange model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
