Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 135mm -
Fork RockShox Pike Ultimate
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Pike Ultimate, 42mm offset, 110x15mm Boost thru-axle, Option: FOX 36 FLOAT Factory
Rear Shock
RockShox Super Deluxe Ultimate, 210mm x 50mm, Option: FOX DPX2 FLOAT Factory
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM Eagle XG1275, 12-speed, 10-50 tooth
Crank
Truvativ Descendant Carbon Eagle DUB
Bottom Bracket
SRAM DUB, 73mm
Chain
SRAM GX Eagle, 12-speed
Chain Guide
None, Option: MRP 1x
Pedals
None, Option: Burgtec MK4 Composite
Wheels
Front Hub
Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear
Rims
e*thirteen TRS, 30mm internal width, Option: Stan's NoTubes Flow MK3
Tires
Front: Maxxis Minion DHF, 29" x 2.5" WT, Rear: Maxxis Minion DHR II, 29" x 2.4" WT
Brakes
Brakes
Shimano XT Trail, 203mm front rotor, 180mm rear rotor, Option: Hope Tech 3 E4, 203mm front rotor, 180mm rear rotor
Brake Levers
Shimano XT Trail, Option: Hope Tech 3 E4
Cockpit
Stem
Hope, 35mm bore, 35mm length, Option: Burgtec, 35mm
Handlebar
Renthal Fatbar, 800mm width, 35mm bore, Option: Renthal Carbon Fatbar, 800mm width
Grips
Strange 130, single lock-on, black
Headset
Cane Creek, ZS49/28.6 upper, EC49/40 lower, for tapered steerer, Option: Hope Tech
Seat
Saddle
SDG Radar, steel rails, black/black
Seatpost
FOX Transfer Performance Elite dropper, 150mm drop, Option: FOX Transfer Factory dropper, 150mm or 170mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm |
| Stack | 624 mm | 633 mm | 642 mm |
| Reach | 461 mm | 479 mm | 497 mm |
| Top Tube Length | 618 mm | 638 mm | 658 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 459 mm | 459 mm | 459 mm |
| Wheelbase | 1240 mm | 1262 mm | 1284 mm |
| Bottom Bracket Drop | 49 mm | 49 mm | 49 mm |
| Standover Height | 718 mm | 740 mm | 793 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

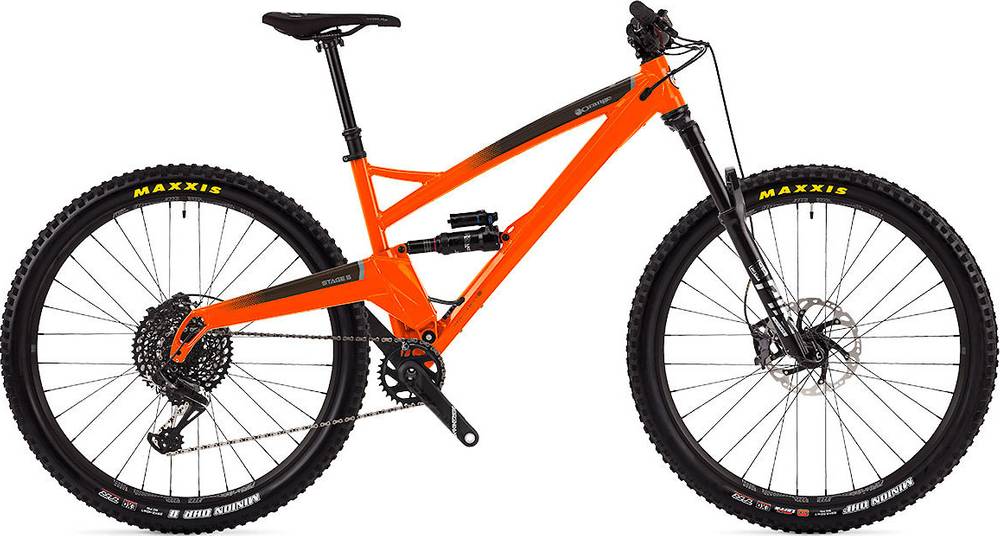

Stage 5 RS is part of the Orange Stage model. There are 43 bikes that carry this model name. Take a sneak peek at all Orange Stage bikes models from 2020, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Stage 5 RS components
Fork
Orange Stage 5 RS 2020 bike is equipped with the RockShox Pike Ultimate fork, and has 140mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Orange Stage 5 RS bike has the RockShox Super Deluxe Ultimate model installed, and has a travel of 135mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Stage 5 RS model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Stage 5 RS comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Orange model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
