Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Float 36
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX Performance 36 Float
Rear Shock
FOX Float DPX2 Performance, 200mm x 57mm
Drivetrain
Rear Derailleur
Shimano XT Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano SLX, 11-speed
Cassette
Shimano SLX, 11-46 tooth, 11-speed
Crank
Race Face Aeffect, direct mount
Bottom Bracket
Race Face
Chain
SRAM PC1110
Chain Guide
Not included
Pedals
None included
Wheels
Front Hub
Joytech, Boost rear
Rear Hub
Joytech, Boost rear
Rims
Kore Realm 3.0
Tires
Maxxis Minion DHR II, 2.4" EXO TR
Brakes
Brakes
Shimano SLX with 203mm front/180mm rear rotors
Brake Levers
Shimano SLX
Cockpit
Stem
Race Face Chester, 40mm length, 35mm clamp
Handlebar
Race Face Chester Stealth, 780mm length
Grips
Strange 130 Lock-on, black or orange
Headset
Cane Creek, 49mm
Seat
Saddle
Kore Conex
Seatpost
Race Face Aeffect Dropper, 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.39 mm | 1.36 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm |
| Stack | 630.8 mm | 640.8 mm | 649.8 mm |
| Reach | 441.8 mm | 459.8 mm | 476.8 mm |
| Top Tube Length | 617.8 mm | 637.8 mm | 657.8 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 431.8 mm | 457.2 mm | 508 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1220 mm | 1242 mm | 1263 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm |
| Standover Height | 730 mm | 741 mm | 794 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

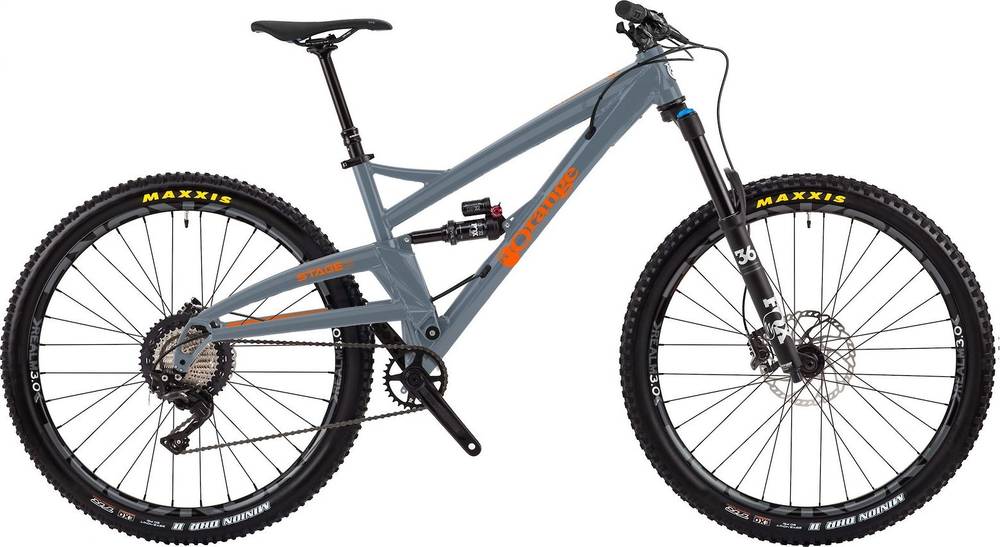

Stage 6 Pro Shimano XT Build is an Orange Stage model. Orange released 43 bikes variations of this model so far. You can easily view all of the Orange Stage bikes models from 2018, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
Orange Stage 6 Pro Shimano XT Build 2018 bike is equipped with the Fox Performance Float 36 fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this bike has the FOX Float DPX2 Performance model, with a travel of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the Stage 6 Pro Shimano XT Build model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Orange Stage 6 Pro Shimano XT Build has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Orange Stage 6 Pro Shimano XT Build bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Orange Stage 6 Pro Shimano XT Build comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
