Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 36
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 36 Factory, 42mm offset
Rear Shock
Cane Creek DB Air IL, 190mm x 45mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Front Derailleur
None
Shift Levers
12-speed
Cassette
Shimano Deore XT M8100, 12-speed, 10-51 tooth
Crank
Shimano Deore
Bottom Bracket
Shimano, HOLLOWTECH II, 73mm
Chain
KMC, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
Stan's NoTubes Flow MK3
Tires
Front: Maxxis Minion DHF, 3C, EXO, 29" x 2.5", Rear: Maxxis Minion DHR II, EXO, 29" x 2.4"
Brakes
Brakes
Shimano SLX Trail M7120, 4-piston, 203mm front rotor, 180mm rear rotor
Brake Levers
Shimano SLX Trail M7120
Cockpit
Stem
Hope Tech, 35mm length, 35mm bar clamp
Handlebar
Renthal FatBar, 800mm width, 35mm clamp diameter
Grips
Strange Grappler, lock-on
Headset
Cane Creek, ZS49/28.6 upper, EC49/40 lower
Seat
Saddle
SDG Strange Bel-Air III
Seatpost
FOX Transfer Factory dropper, 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.35 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 759 mm | 779 mm | 801 mm | 823 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 618 mm | 618 mm | 628 mm | 636 mm |
| Reach | 438 mm | 458 mm | 476 mm | 494 mm |
| Top Tube Length | 593 mm | 613 mm | 633 mm | 653 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 381 mm | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1196 mm | 1216 mm | 1238 mm | 1260 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 688 mm | 707 mm | 734 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

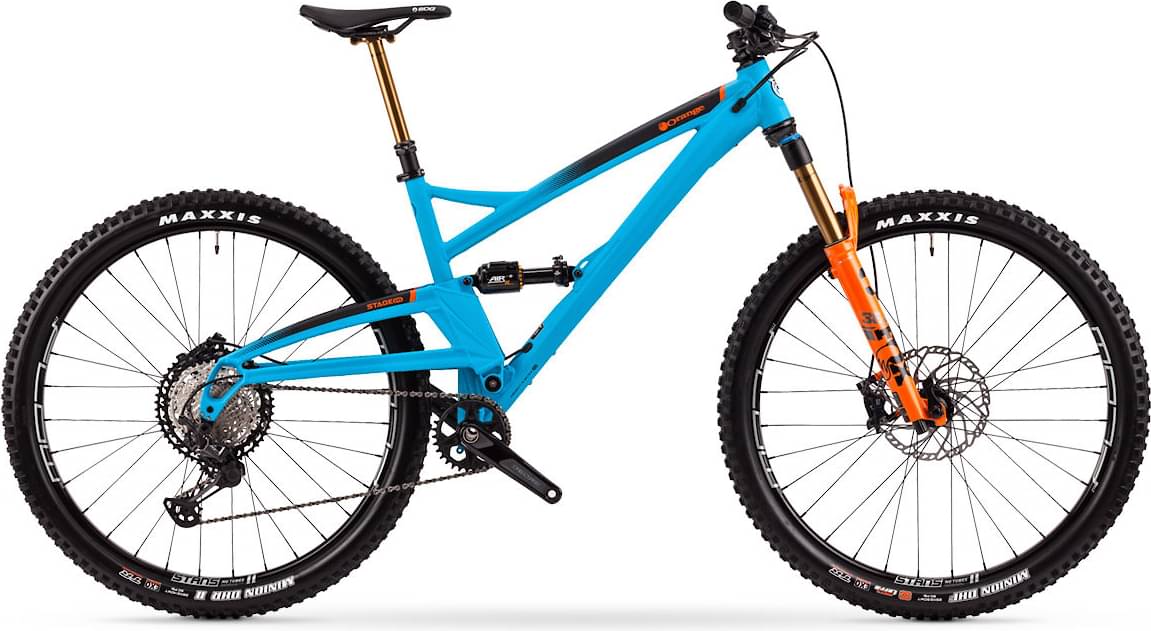

Model Overview
Stage EVO SE belongs to the Orange Stage model. 43 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Orange Stage EVO Pro-Line 2022 is the most affordable bike of this model and has a price of 6800$. On the other hand, Orange Stage EVO SE 2022, is the most expensive and costs 7400$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7400$. If we compare this with the average Trail bike cost we notice that the price is 167.92% more expensive.
Overview of components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Cane Creek DB Air IL, with a travel distance of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on Stage EVO SE are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Orange Stage EVO SE bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Orange model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
