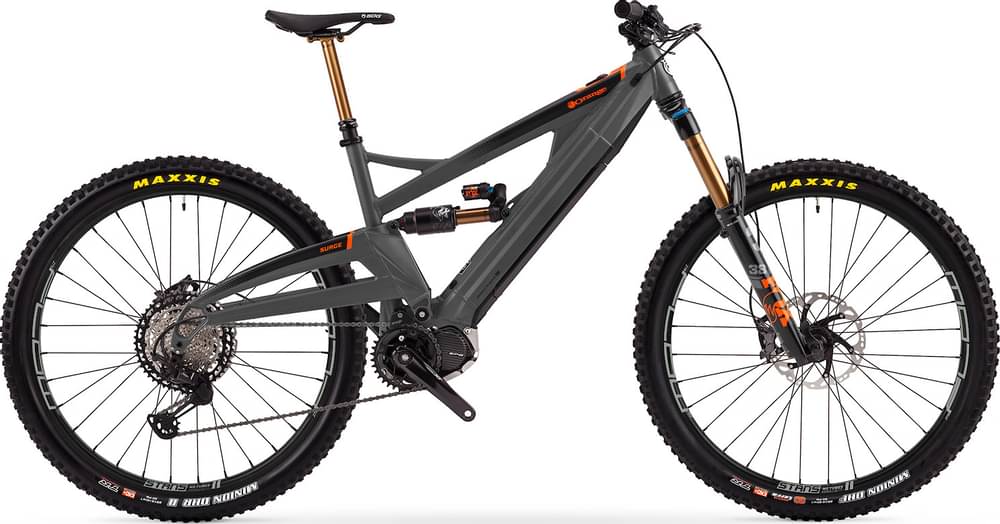

Orange Surge 29 Factory 2021
2021 E-bike
Estimate price |
8,400$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset XT -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano STEPS E8035, integrated, removable -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 38 Factory
Rear Shock
FOX FLOAT X2 Factory, 230mm x 57.5mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Front Derailleur
None
Shift Levers
Shimano Deore XT M8100, 12-speed
Cassette
Shimano Deore XT M8100, 12-speed, 10-51 tooth
Crank
Shimano Deore XT, 165mm length
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC, 12-speed
Chain Guide
MRP E-bike upper slider
Pedals
None, Option: Burgtec Penthouse Flat MK5
Wheels
Front Hub
Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
Stan's NoTubes Flow MK3
Tires
Front: Maxxis Minion DHF, 3C, EXO+, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C, EXO+, 29" x 2.4"
Brakes
Brakes
Shimano Deore XT Trail, 4-piston, 203mm rotors, Option: Shimano Saint, 4-piston, 203mm rotors
Brake Levers
Shimano Deore XT Trail, Option: Shimano Saint
Cockpit
Stem
Hope Tech, 35mm length, 35mm bar clamp
Handlebar
Renthal Fatbar, 800mm width, 35mm clamp diameter
Grips
Strange Grappler, lock-on
Headset
Hope Tech, ZS49/28.6 upper, EC49/40 lower
Seat
Saddle
SDG BelAir III
Seatpost
FOX Transfer Factory dropper, 175mm drop
Motor & Battery
Motor
Shimano STEPS EP8, 85Nm max torque, 250W
Battery
Shimano STEPS E8035, integrated, removable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Stack | 628 mm | 628 mm | 636 mm |
| Reach | 465 mm | 486 mm | 503 mm |
| Top Tube Length | 623 mm | 643 mm | 663 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1264 mm | 1284 mm | 1306 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm |
| Standover Height | 722 mm | 750 mm | 773 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
Surge 29 Factory belongs to the Orange E Surge model. 18 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Orange Surge S 2021 is the cheapest e-bike model and costs 6400$. Orange Surge 29 XTR 2021 is the most expensive one and costs 8800$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Orange Surge 29 Factory price was 8400$. Doing a quick comparison, we notice that Surge 29 Factory price is 75.55% higher than the average cost of an Enduro e-bike.
Overview of components
Fork
The Fox Factory Float 38 is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Orange Surge 29 Factory e-bike has the FOX FLOAT X2 Factory model installed, and has a travel of 160mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Surge 29 Factory model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orange Surge 29 Factory is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Surge 29 Factory. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
