Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XTR, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano STEPS E8035, integrated -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 36 FLOAT Factory, 42mm offset
Rear Shock
FOX DPX2 FLOAT Factory, 230mm x 57.5mm
Drivetrain
Rear Derailleur
Shimano XTR, 12-speed
Front Derailleur
N/A
Shift Levers
Shimano XTR, 12-speed
Cassette
Shimano XTR, 12-speed, 10-51 tooth
Crank
Shimano E8050
Chain
Shimano XTR, 12-speed
Chain Guide
MRP 1x E-Bike
Pedals
None, Option: Burgtec MK4 Composite
Wheels
Front Hub
DT Swiss 350, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
DT Swiss 350, 110x15mm Boost front, 148x12mm Boost rear
Rims
Stan's NoTubes Flow MK3
Tires
Front: Maxxis Minion DHF, 3C, EXO+, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C, EXO+, 29" x 2.4"
Brakes
Brakes
Shimano Saint, 203mm rotors
Brake Levers
Shimano Saint
Cockpit
Stem
Burgtec MK2 Enduro, 35mm length
Handlebar
Renthal Fatbar, 800mm width, 35mm bore
Grips
Strange 130, single lock-on, black
Headset
Hope Tech, ZS49/28.6 upper, EC49/40 lower, for tapered steerer
Seat
Saddle
SDG Radar, CrMo rails, black/black
Seatpost
FOX Transfer Factory dropper, 150mm or 170mm drop
Motor & Battery
Motor
Shimano STEPS E8000, 70Nm max torque
Battery
Shimano STEPS E8035, integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Stack | 628 mm | 628 mm | 636 mm |
| Reach | 465 mm | 486 mm | 503 mm |
| Top Tube Length | 623 mm | 643 mm | 663 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1264 mm | 1284 mm | 1306 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm |
| Standover Height | 722 mm | 750 mm | 773 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

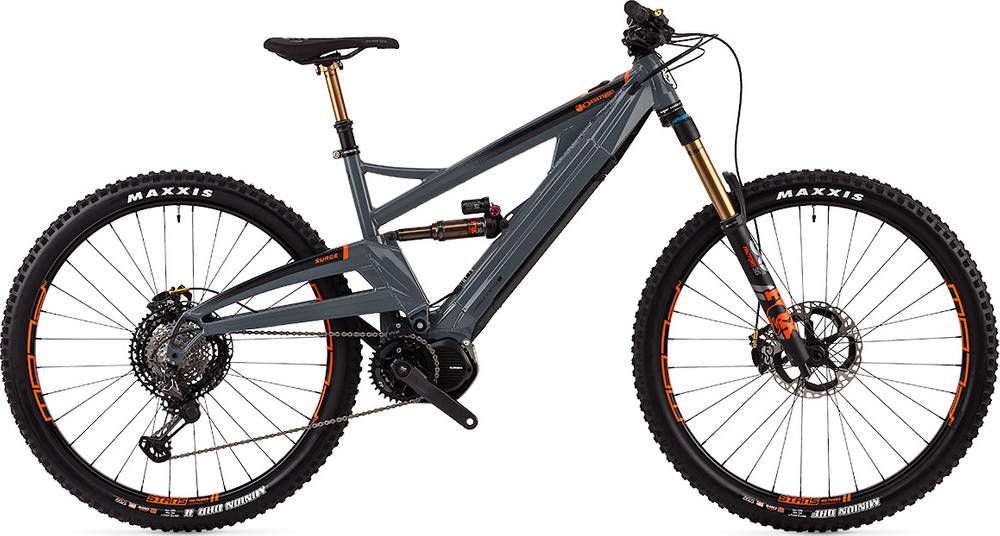

Surge 29 XTR is an Orange E Surge model. There are 18 e-bikes that carry this model name. Take a sneak peek at all Orange E Surge e-bikes models from 2020, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the FOX DPX2 FLOAT Factory rear shock model, which has a travel of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on Surge 29 XTR are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Orange Surge 29 XTR has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Orange Surge 29 XTR includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
