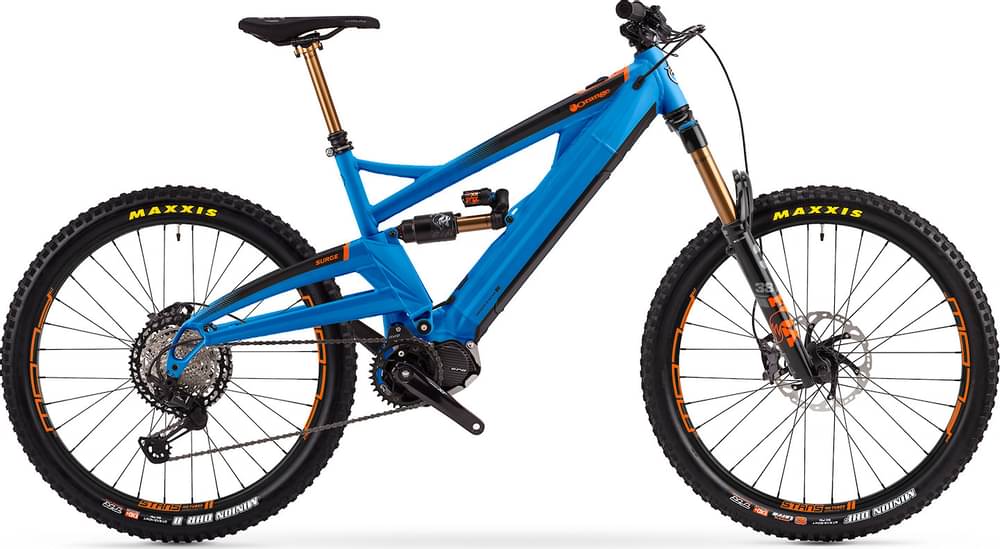

Orange Surge Factory 2021
2021 E-bike
Estimate price |
8,400$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 165mm -
Fork Fox Factory Float 38
-
Groupset XT -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano STEPS E8035, integrated, removable -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 38 Factory
Rear Shock
FOX FLOAT X2 Factory, 230mm x 65mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Front Derailleur
None
Shift Levers
Shimano Deore XT M8100, 12-speed
Cassette
Shimano Deore XT M8100, 12-speed, 10-51 tooth
Crank
Shimano Deore XT, 165mm length
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC, 12-speed
Chain Guide
MRP E-bike upper slider
Pedals
None, Option: Burgtec Penthouse Flat MK5
Wheels
Front Hub
Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
Stan's NoTubes Flow MK3
Tires
Front: Maxxis Minion DHF, 3C, EXO+, 27.5" x 2.5", Rear: Maxxis Minion DHR II, 3C, EXO+, 27.5" x 2.4"
Brakes
Brakes
Shimano Deore XT Trail, 4-piston, 203mm rotors, Option: Shimano Saint, 4-piston, 203mm rotors
Brake Levers
Shimano Deore XT Trail, Option: Shimano Saint
Cockpit
Stem
Hope Tech, 35mm length, 35mm bar clamp
Handlebar
Renthal Fatbar, 800mm width, 35mm clamp diameter
Grips
Strange Grappler, lock-on
Headset
Hope Tech, ZS49/28.6 upper, EC49/40 lower
Seat
Saddle
SDG BelAir III
Seatpost
FOX Transfer Factory dropper, 175mm drop
Motor & Battery
Motor
Shimano STEPS EP8, 85Nm max torque, 250W
Battery
Shimano STEPS E8035, integrated, removable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm | 1.3 mm | 1.27 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Stack | 621 mm | 621 mm | 630 mm | 639 mm |
| Reach | 448 mm | 468 mm | 486 mm | 503 mm |
| Top Tube Length | 602 mm | 621 mm | 640 mm | 661 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 406 mm | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1232 mm | 1252 mm | 1274 mm | 1296 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm |
| Standover Height | 722 mm | 730 mm | 758 mm | 781 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Surge Factory is an Orange E Surge model. There are 18 e-bikes that carry this model name. You can easily view all of the Orange E Surge e-bikes models from 2021, here.
Model range prices
The most economical model, the Orange Surge S 2021 has a starting price of 6400$. Orange Surge 29 XTR 2021 on the other hand is the most expensive at 8800$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Orange released this model in 2021, its price was 8400$. In conclusion, this e-bike price is 75.55% more expensive than the price of the average Enduro e-bike.
Surge Factory components
Fork
Orange Surge Factory 2021 e-bike is equipped with the Fox Factory Float 38 fork, and has 170mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this e-bike is FOX FLOAT X2 Factory, with a travel distance of 165mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Orange Surge Factory 2021, has a 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Surge Factory comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Surge Factory comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Orange Surge Factory comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
