Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 165mm -
Fork RockShox ZEB Ultimate
-
Groupset GX Eagle, XT -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano STEPS E8035, integrated, removable -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox ZEB Ultimate, Option: FOX FLOAT 38 Factory
Rear Shock
RockShox Super Deluxe Ultimate, 230mm x 65mm, Option: FOX FLOAT X2 Factory
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM GX Eagle, 12-speed, Single Click
Cassette
SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth
Crank
Shimano Deore XT, 165mm length
Bottom Bracket
BSA, 73mm, threaded
Chain
SRAM GX Eagle, 12-speed
Chain Guide
MRP E-bike upper slider
Pedals
None, Option: Burgtec Penthouse Flat MK5
Wheels
Front Hub
Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rear Hub
Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rims
e*thirteen TRS, 30mm width, Option: Stan's NoTubes Flow MK3
Tires
Front: Maxxis Minion DHF, 3C, EXO+, 27.5" x 2.5", Rear: Maxxis Minion DHR II, 3C, EXO+, 27.5" x 2.4"
Brakes
Brakes
Shimano SLX Trail, 4-piston, 203mm rotors, Option: Shimano Deore XT Trail, 4-piston, 203mm rotors, Option: Shimano Saint, 4-piston, 203mm rotors
Brake Levers
Shimano SLX Trail, Option: Shimano Deore XT Trail, Option: Shimano Saint
Cockpit
Stem
Burgtec Enduro MK3, CNC, 35mm bar clamp
Handlebar
Burgtec RideWide Enduro, 800mm width, 35mm clamp diameter
Grips
Strange Grappler, lock-on
Headset
Cane Creek, ZS49/28.6 upper, EC49/40 lower
Seat
Saddle
SDG Radar, CrMo rails
Seatpost
FOX Transfer Performance Elite dropper, 175mm drop, Option: FOX Transfer Factory dropper
Motor & Battery
Motor
Shimano STEPS EP8, 85Nm max torque, 250W
Battery
Shimano STEPS E8035, integrated, removable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm | 1.3 mm | 1.27 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Stack | 621 mm | 621 mm | 630 mm | 639 mm |
| Reach | 448 mm | 468 mm | 486 mm | 503 mm |
| Top Tube Length | 602 mm | 621 mm | 640 mm | 661 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 406 mm | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1232 mm | 1252 mm | 1274 mm | 1296 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm |
| Standover Height | 722 mm | 730 mm | 758 mm | 781 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

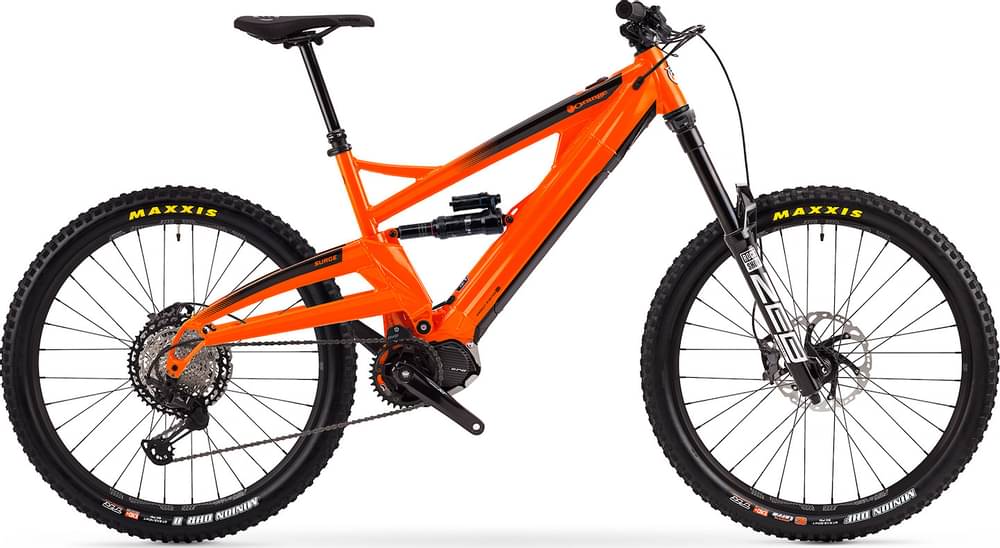

Surge RS belongs to the Orange E Surge model. There are 18 e-bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Orange Surge S 2021 is the most economical model, with a starting price of 6400$. Orange Surge 29 XTR 2021 on the other hand costs 8800$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Orange Surge RS price was 7800$. Comparing this to the average Enduro e-bike price, we see that the price is 63.01% more expensive.
Surge RS components
Fork
Orange Surge RS 2021 e-bike is equipped with the RockShox ZEB Ultimate fork, and has 170mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the RockShox Super Deluxe Ultimate rear shock model, which has a travel of 165mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the Surge RS e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orange Surge RS is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Surge RS comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Orange model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
