Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" / 27.5" -
Travel Front 160mm -
Travel Rear 145mm -
Fork Fox Factory Float 36
-
Groupset XTR -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 36 Factory, 42mm offset, Option: FOX FLOAT 38 Factory
Rear Shock
FOX FLOAT X2 Factory, 210mm x 55mm
Drivetrain
Rear Derailleur
Shimano XTR M9100, 12-speed
Front Derailleur
None
Shift Levers
Shimano XTR M9100, 12-speed
Cassette
Shimano XTR M9100, 12-speed, 10-51 tooth
Crank
Shimano XTR
Bottom Bracket
Shimano, 73mm
Chain
KMC, 12-speed
Chain Guide
OneUp upper slider
Pedals
None, Option: Burgtec Penthouse Flat MK5
Wheels
Front Hub
Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
Stan's NoTubes Flow MK3
Tires
Front: Maxxis Minion DHF, 3C, EXO, 29" x 2.5", Rear: Maxxis Minion DHR II, EXO, 27.5" x 2.4"
Brakes
Brakes
Shimano XTR, 4-piston, 203mm front rotor, 180mm rear rotor
Brake Levers
Shimano XTR
Cockpit
Stem
Burgtec Enduro MK3, CNC, 35mm
Handlebar
Burgtec RideWide Carbon, 800mm width
Grips
Strange Grappler, lock-on
Headset
Hope Tech, ZS49/28.6 upper, EC49/40 lower
Seat
Saddle
SDG BelAir III
Seatpost
FOX Transfer Factory dropper, 175mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm |
| Stack | 631 mm | 640 mm | 650 |
| Reach | 465 mm | 482 mm | 501 mm |
| Top Tube Length | 623 mm | 643 mm | 663 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1248 mm | 1270 mm | 1292 mm |
| Standover Height | 731 mm | 742 mm | 795 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

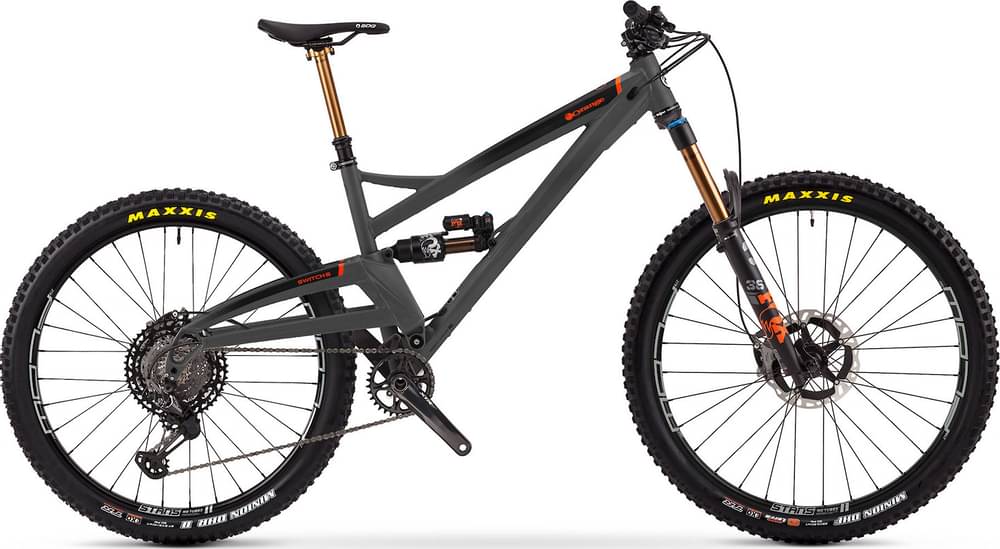

Switch 6 XTR is an Orange Switch model. There are 9 bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Orange Switch 6 Pro 2021 is the most affordable bike of this model and has a price of 4600$. On the other hand, Orange Switch 6 XTR 2021, is the most expensive and costs 7200$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Orange released this model in 2021, its price was 7200$. Doing a quick comparison, we notice that Switch 6 XTR price is 160.68% higher than the average cost of a Trail bike.
Switch 6 XTR components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Orange Switch 6 XTR bike has the FOX FLOAT X2 Factory model installed, and has a travel of 145mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on Switch 6 XTR are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Switch 6 XTR comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Orange Switch 6 XTR comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
