Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset X01 Eagle, X1 -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 170cm
SM
155cm - 170cm
MD
165cm - 180cm
MD
165cm - 180cm
LG
178cm - 190cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Alma Carbon OMR Boost Taper PF DCR
Suspension Fork
Fox 32 Float SC Factory 100 FIT4 Remote-Adj Push-Unlock QR15x110 Kashima
Drivetrain
Rear Derailleur
SRAM X01 Eagle Gold
Shift Levers
SRAM X01 Eagle
Cassette
SRAM GX XG-1275 Eagle 10-50t 12-Speed
Crank
SRAM X1 Eagle Dub Carbon Boost 34t
Chain
SRAM GX Eagle 12-Speed
Pedals
N/A
Wheels
Rims
Mavic Crossmax Elite TL 6-Bolt
Tires
Maxxis Ikon 2.20" FB 120 TPI 3C Exo TR
Brakes
Brakes
Shimano XT M8000 Hydraulic Disc
Cockpit
Stem
FSA SL-K
Handlebar
FSA SL-K Flat 700mm
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Selle Italia X-LR Ti Flow
Seatpost
FSA SL-K SB0 27.2x400mm Di2 compatible
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.508 mm | 1.571 mm | 1.425 mm | 1.472 mm | 1.405 mm | 1.374 mm |
| Bottom Bracket Height | 312 mm | 309 mm | 312 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 629 mm | 638 mm | 662 mm | 669 mm | 698 mm | 723 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 87 mm | 86 mm | 87 mm | 85 mm | 86 mm | 86 mm |
| Stack | 573 mm | 597 mm | 583 mm | 602 mm | 611 mm | 625 mm |
| Reach | 380 mm | 380 mm | 409 mm | 409 mm | 435 mm | 455 mm |
| Top Tube Length | 550 mm | 557 mm | 582 mm | 588 mm | 616 mm | 640 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 400 mm | 445 mm | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 69.3 ° | 69.5 ° | 69.3 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 95 mm | 90 mm | 105 mm | 95 mm | 105 mm | 120 mm |
| Chainstay Length | 420 mm | 430 mm | 420 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1045 mm | 1061 mm | 1078 mm | 1092 mm | 1121 mm | 1146 mm |
| Bottom Bracket Drop | 43 mm | 61 mm | 43 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 716 mm | 715 mm | 735 mm | 735 mm | 741 mm | 802 mm |
| Wheels | 27" | 29" | 27" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 155 cm | 165 cm | 165 cm | 178 cm | 186 cm |
| Rider Max Height | 170 cm | 170 cm | 180 cm | 180 cm | 190 cm | 199 cm |

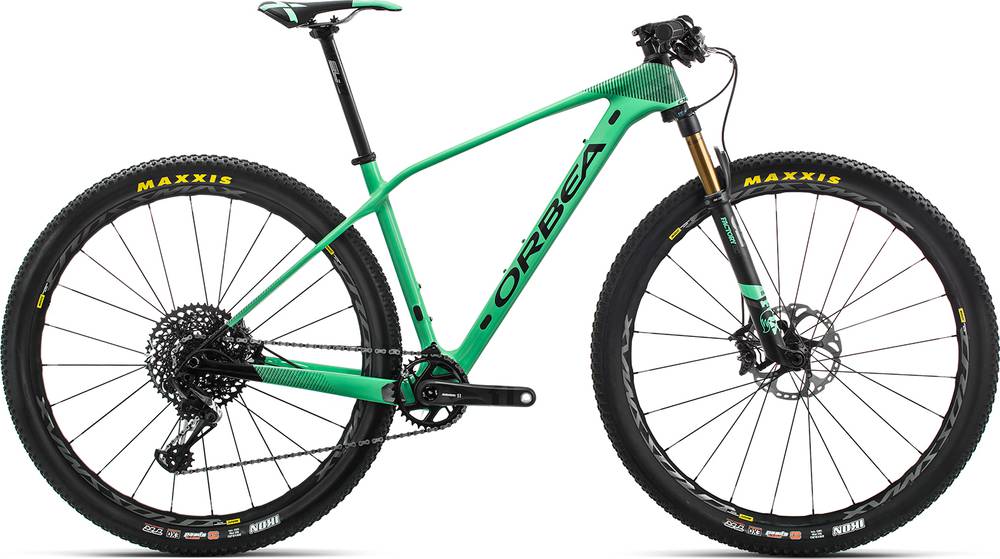

About this model
ALMA M10 belongs to the Orbea Alma model. Orbea launched 83 bikes of this model so far. Take a sneak peek at all Orbea Alma bikes models from 2019, by clicking here.
Model range prices
The most economical model, the Orbea ALMA H50 29 2019 has a starting price of 1199$. Orbea ALMA M-LTD 2019 on the other hand is the most expensive at 7699$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2019 and its price was 4999$. Doing a quick comparison, we notice that ALMA M10 price is 162.41% more expensive than the average cost of a Crosscountry bike.
ALMA M10 components
Fork
This bike has the Fox Factory Float 32 fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the ALMA M10 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea ALMA M10 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
ALMA M10 comes in 6 sizes, that range from 155 cm – 199 cm (5.09 ft – 6.53 ft). In short, you can easily find one that suits you.
