Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
47cm
155cm - 161cm
49cm
159cm - 168cm
51cm
165cm - 174cm
53cm
171cm - 181cm
55cm
178cm - 187cm
57cm
184cm - 193cm
60cm
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system.
Suspension Fork
Orbea carbon 2021, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout
Drivetrain
Rear Derailleur
Shimano Tiagra 4700 GS
Front Derailleur
Shimano Tiagra 4700
Shift Levers
Shimano Tiagra ST-4700
Cassette
Sun Race CSMS1 11-34t 10-Speed
Crank
FSA Omega Megaexo 34x50t
Bottom Bracket
BSA, 68mm, threaded
Chain
KMC X10
Wheels
Rims
Alloy, Tubeless, 700c, 19c, 28H
Tires
Vittoria Zafiro V Rigid bead 700x28c
Brakes
Brakes
Jagwire RideRever Mechanical Disc
Cockpit
Stem
OC Road Performance RP21, -6º
Handlebar
OC Road Perfornace RP31-R, Rise 15, Reach 70, Drop 125
Headset
Acros Alloy 1-1/2" Internal Cable Routing
Seat
Saddle
Fizik Aliante R5
Seatpost
Alloy, 27.2mm, Setback 20
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 49cm | 51cm | 53cm | 55cm | 57cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.47 mm | 1.5 mm | 1.54 mm | 1.55 mm | 1.58 mm | 1.61 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 576 mm | 583 mm | 590 mm | 592 mm | 606 mm | 615 mm | 624 mm |
| Rake | 48 mm | 48 mm | 48 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 65 mm | 62.5 mm | 58.1 mm | 58.8 mm | 58 mm | 56.5 mm | 56.5 mm |
| Stack | 528 mm | 548 mm | 568 mm | 588 mm | 608 mm | 628 mm | 648 mm |
| Reach | 368 mm | 373 mm | 378 mm | 383 mm | 393 mm | 398 mm | 403 mm |
| Top Tube Length | 514 mm | 529 mm | 542 mm | 556 mm | 572 mm | 589 mm | 600 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.75 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 445 mm | 470 mm | 495 mm | 520 mm | 545 mm | 575 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.9 ° | 72.4 ° | 72.6 ° | 72.8 ° | 73 ° |
| Head Tube Length | 122 mm | 141 mm | 161 mm | 180 mm | 201 mm | 221 mm | 241 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 992 mm | 999 mm | 1007 mm | 1009 mm | 1023 mm | 1032 mm | 1041 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 716 mm | 741 mm | 764 mm | 793 mm | 812 mm | 836 mm | 855 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 159 cm | 165 cm | 171 cm | 178 cm | 184 cm | 190 cm |
| Rider Max Height | 161 cm | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 207 cm |

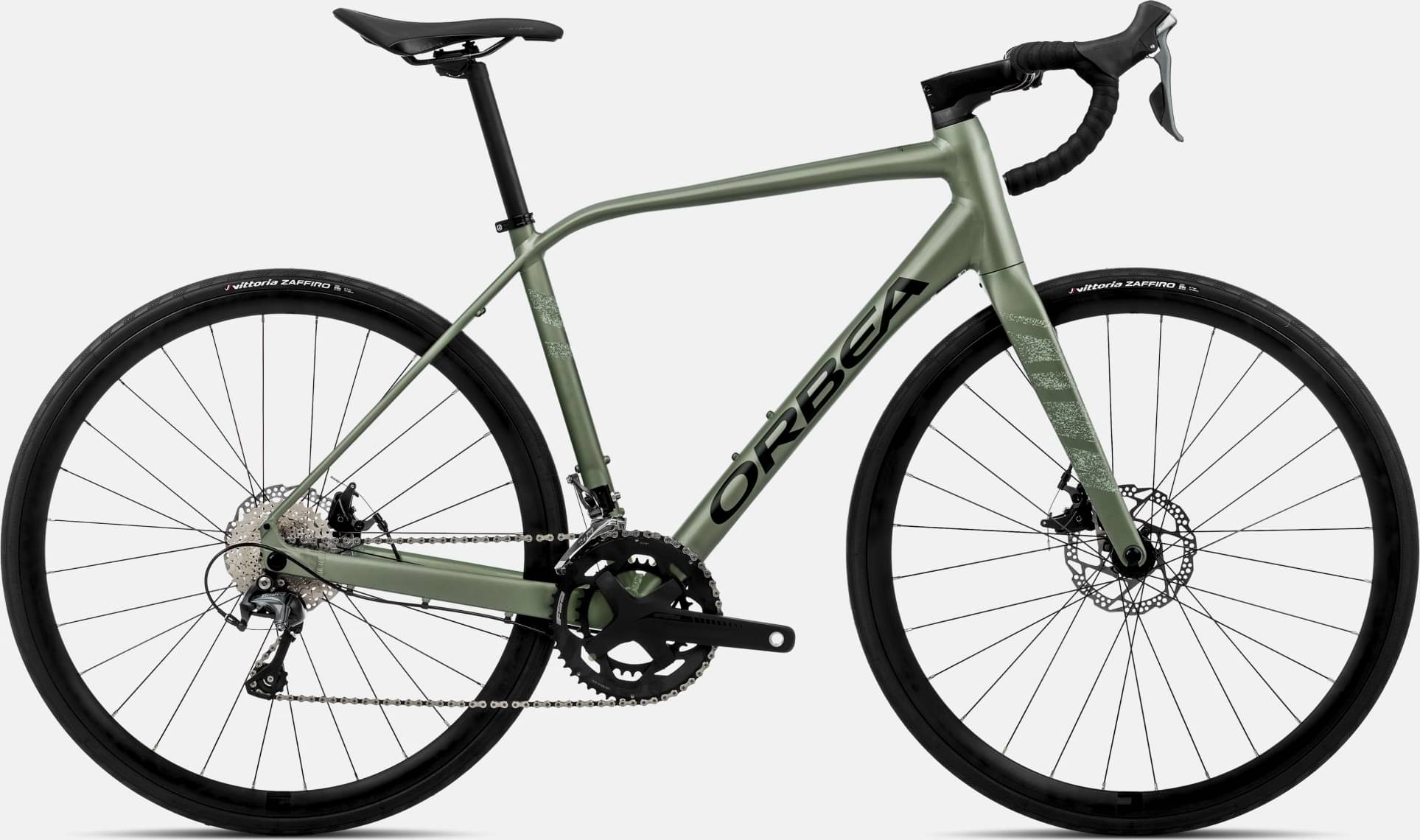

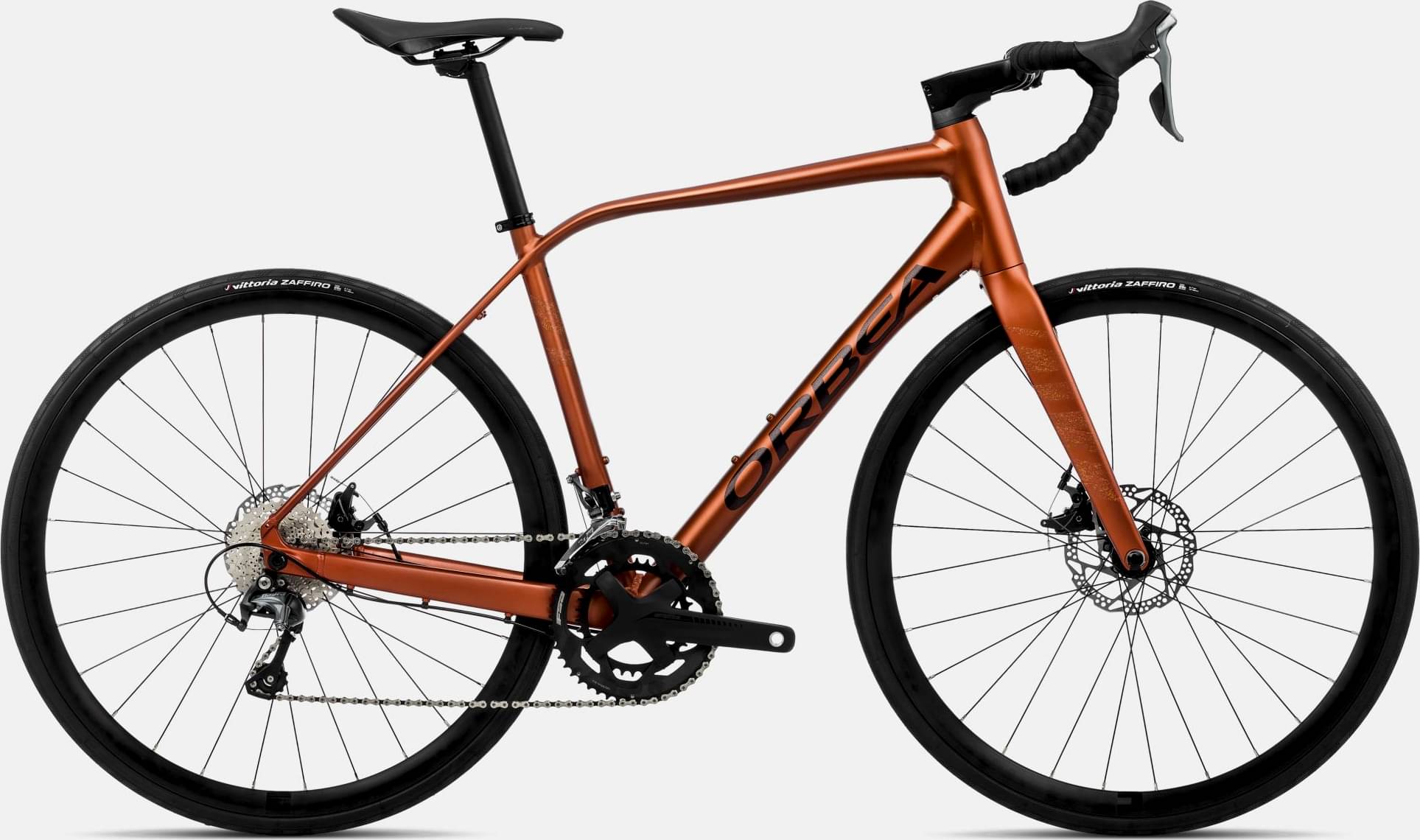

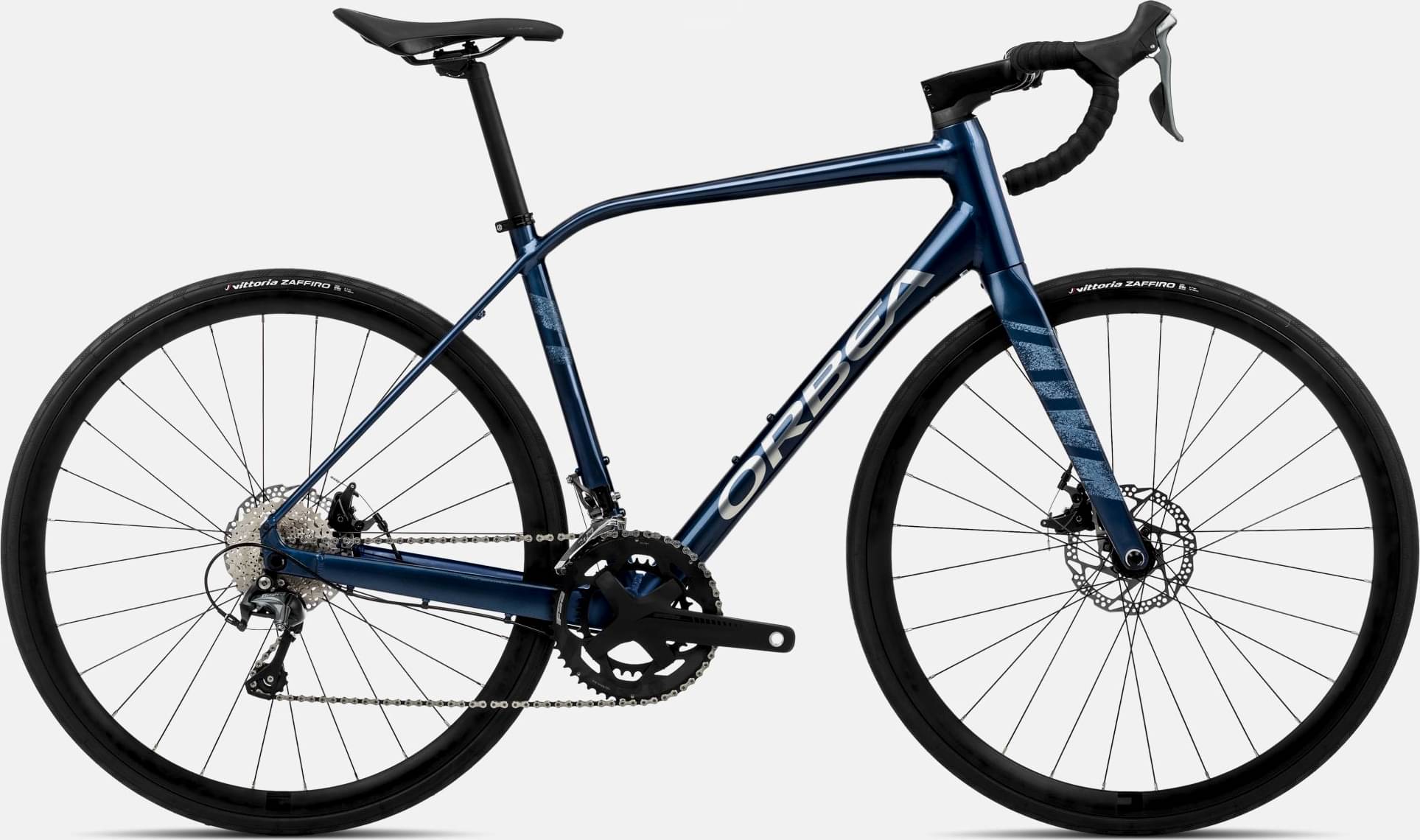

About this model
AVANT H40 is an Orbea Avant model. Orbea released 41 bikes variations of this model so far. Take a sneak peek at all Orbea Avant bikes models from 2024, by clicking here.
Model range prices
The most economical model, the Orbea AVANT H60 2024 has a starting price of 1699$. Orbea AVANT H30 2024 on the other hand is the most expensive at 2399$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance bikes
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1899$. Comparing this to the average Endurance bike price, we see that the price is 23.54% smaller.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the AVANT H40 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
AVANT H40 comes in 7 sizes, that range from 155 cm – 207 cm (5.09 ft – 6.79 ft). In conclusion, finding one for you shouldn’t be a problem.
