Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Altus, Shimano -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 161cm
SM
159cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing,
Suspension Fork
Speed 400mm Alloy Flat mount
Drivetrain
Rear Derailleur
Shimano Altus M2000 SGS Shadow
Shift Levers
Shimano SL-M2010
Cassette
Sun Race CSM989 11-36t 9-Speed
Crank
Orbea Alloy 42t
Chain
KMC X9
Pedals
VP-229 Black with reflectors
Wheels
Rims
Orbea Airline Corsa Disc 700X19c
Tires
Kenda K1067 700x38C Reflective type+puncture protection
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Stem
Alloy 31.8mm interface 7º
Handlebar
Alloy 31.8mm Riser 640mm
Headset
VP-Z104PD 1-1/8" Semi-Cartridge
Seat
Saddle
Fortune QF-3094
Seatpost
Alloy 27.2 Offset 0
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.43 mm | 1.45 mm | 1.47 mm | 1.53 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 283 mm | 283 mm | 285 mm |
| Front Center | 596 mm | 612 mm | 626 mm | 637 mm | 648 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 66 mm | 66 mm | 66 mm | 64 mm | 60 mm |
| Stack | 531 mm | 548 mm | 567 mm | 588 mm | 621 mm |
| Reach | 374 mm | 384 mm | 391 mm | 401 mm | 406 mm |
| Top Tube Length | 517 mm | 542 mm | 555 mm | 576 mm | 597 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 525 mm | 555 mm | 580 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 109 mm | 127 mm | 150 mm | 170 mm | 200 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1017 mm | 1033 mm | 1048 mm | 1059 mm | 1071 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 68 mm | 68 mm | 66 mm |
| Standover Height | 734 mm | 764 mm | 796 mm | 820 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 159 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 161 cm | 171 cm | 181 cm | 191 cm | 200 cm |
About this model

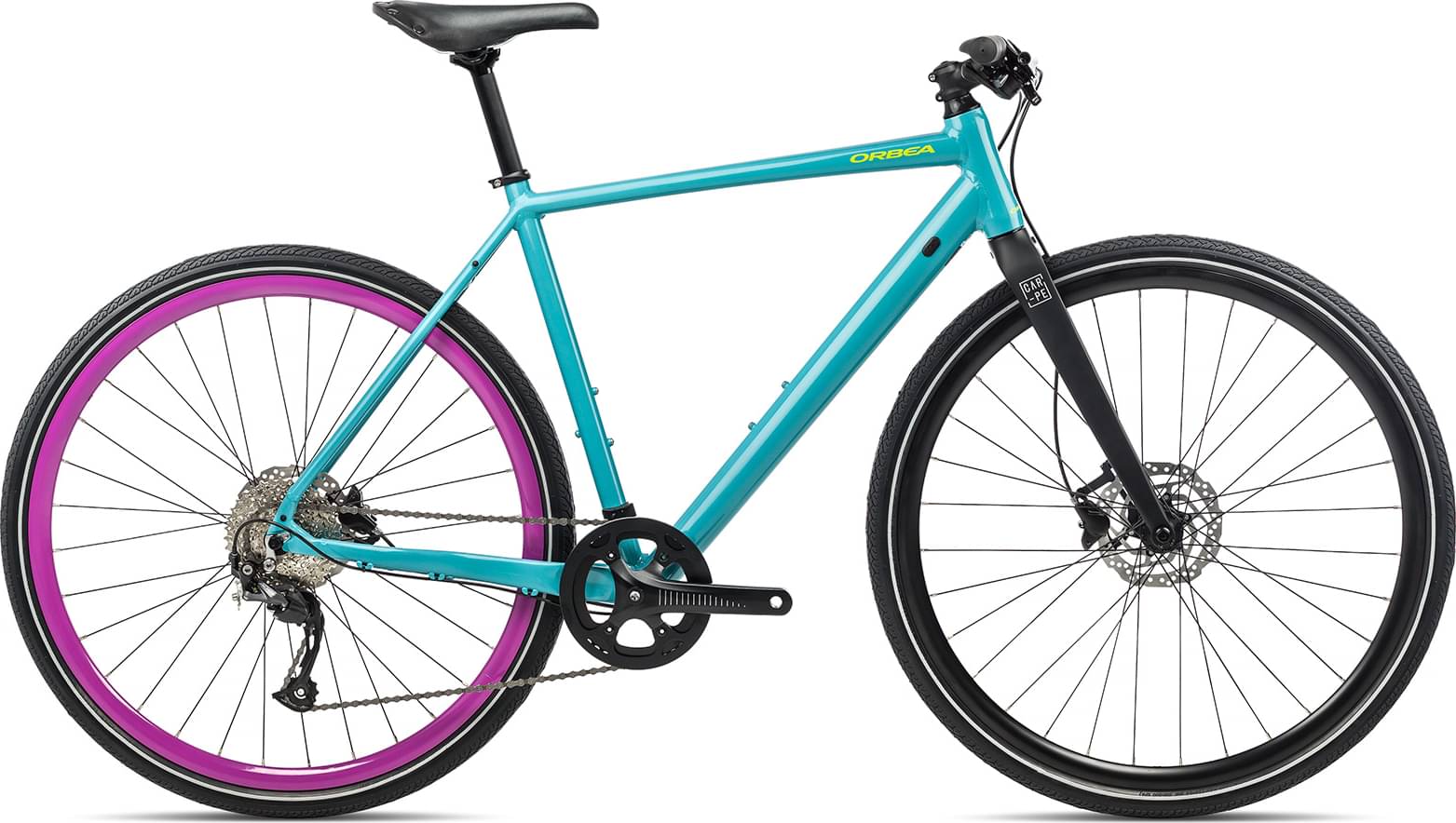

CARPE 20 is an Orbea Carpe model. Orbea launched 17 bikes of this model so far. You can easily view all of the Orbea Carpe bikes models from 2022, here.
Model range prices
The most economical model, the Orbea CARPE 40 2022 has a starting price of 668$. Orbea CARPE 10 2022 on the other hand is the most expensive at 1167$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter bikes
According to our math, the average price for a trustworthy Commuter bike is 762$. However, even though the average price of a Commuter bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 848$. Comparing this to the average Commuter bike price, we see that the price is 11.29% higher.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
CARPE 20 has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When leaving the production line, the CARPE 20 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea CARPE 20 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
CARPE 20 comes in 5 sizes, that range from 150 cm – 200 cm (4.92 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
