Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Altus, Shimano -
Suspension Rigid -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 161cm
SM
159cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing,
Suspension Fork
Speed 400mm Alloy Flat mount
Drivetrain
Rear Derailleur
Shimano Altus M310
Shift Levers
Shimano SL-M315
Cassette
Shimano HG200 12-32t 8-Speed
Crank
Orbea Alloy 42t
Chain
KMC X8
Pedals
VP-538 Black
Wheels
Rims
Orbea Airline Corsa Disc 700X19c
Tires
Kenda K1067 700x38C Reflective type+puncture protection
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Stem
Alloy 31.8mm interface 7º
Handlebar
Alloy 31.8mm Riser 640mm
Headset
1-1/8" Semi-Integrated
Seat
Saddle
Velo 1221
Seatpost
Alloy 27.2 Offset 0
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.43 mm | 1.45 mm | 1.47 mm | 1.53 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 283 mm | 283 mm | 285 mm |
| Front Center | 596 mm | 612 mm | 626 mm | 637 mm | 648 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 66 mm | 66 mm | 66 mm | 64 mm | 60 mm |
| Stack | 531 mm | 548 mm | 567 mm | 588 mm | 621 mm |
| Reach | 374 mm | 384 mm | 391 mm | 401 mm | 406 mm |
| Top Tube Length | 517 mm | 542 mm | 555 mm | 576 mm | 597 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 525 mm | 555 mm | 580 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 109 mm | 127 mm | 150 mm | 170 mm | 200 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1017 mm | 1033 mm | 1048 mm | 1059 mm | 1071 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 68 mm | 68 mm | 66 mm |
| Standover Height | 734 mm | 764 mm | 796 mm | 820 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 159 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 161 cm | 171 cm | 181 cm | 191 cm | 200 cm |
Model Overview

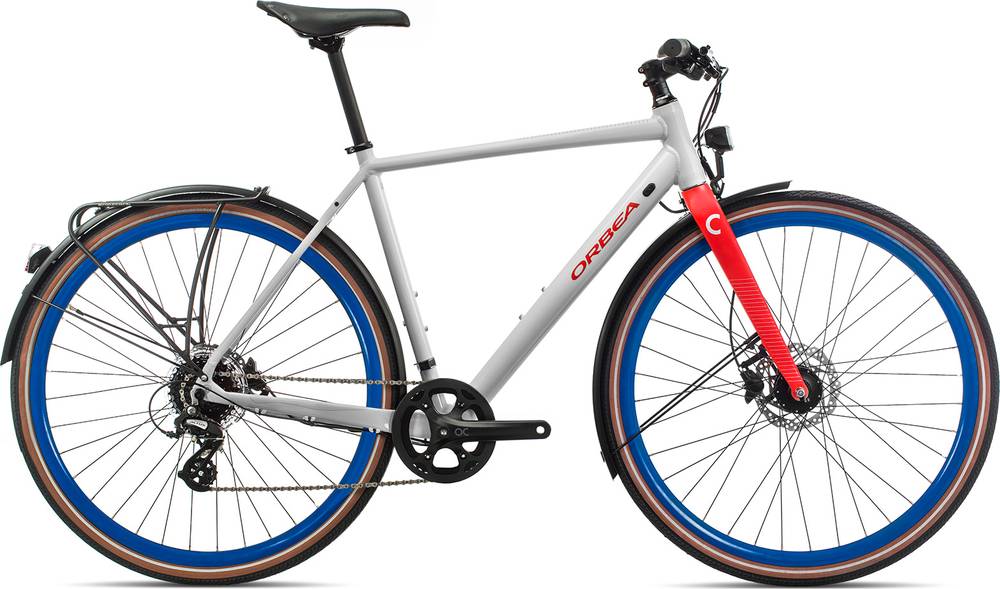

CARPE 25 completes the Orbea Carpe model. There are 17 bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
General Urban bikes average price
If you want an acceptable General Urban bike you should know that the average price is 499$. However, even if your budget is less than the average, you might still be able to get a top-quality General Urban bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
CARPE 25 components
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When leaving the production line, the CARPE 25 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 150 cm – 200 cm (4.92 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
