Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Tourney, Altus -
Suspension Rigid -
Drivetrain 1 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing,
Suspension Fork
Speed 400mm Steel Post mount
Drivetrain
Rear Derailleur
Shimano TY-300
Shift Levers
Shimano M310
Cassette
Shimano HG200 12-32t 7-Speed
Crank
Prowheel 42 Steel Custom logo
Chain
KMC Z7 GYBR
Pedals
VP-538 Black
Wheels
Rims
Orbea Airline Corsa Disc 700X19c
Tires
Kenda K1067 700x38C Reflective type+puncture protection
Brakes
Brakes
Shimano TX805 Mechanical Disc
Brake Levers
Orbea Trekking Alloy 4-finger
Cockpit
Stem
Orbea OC
Handlebar
Orbea OC-I Riser 640mm
Headset
1-1/8" Semi-Integrated
Seat
Saddle
Velo 1221
Seatpost
Orbea OC 27.2x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.43 mm | 1.45 mm | 1.47 mm | 1.53 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 283 mm | 283 mm | 285 mm |
| Front Center | 596 mm | 612 mm | 626 mm | 637 mm | 648 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 66 mm | 66 mm | 66 mm | 64 mm | 60 mm |
| Stack | 531 mm | 548 mm | 567 mm | 588 mm | 621 mm |
| Reach | 374 mm | 384 mm | 391 mm | 401 mm | 406 mm |
| Top Tube Length | 517 mm | 542 mm | 555 mm | 576 mm | 597 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 525 mm | 555 mm | 580 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 109 mm | 127 mm | 150 mm | 170 mm | 200 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1017 mm | 1033 mm | 1048 mm | 1059 mm | 1071 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 68 mm | 68 mm | 66 mm |
| Standover Height | 734 mm | 764 mm | 796 mm | 820 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

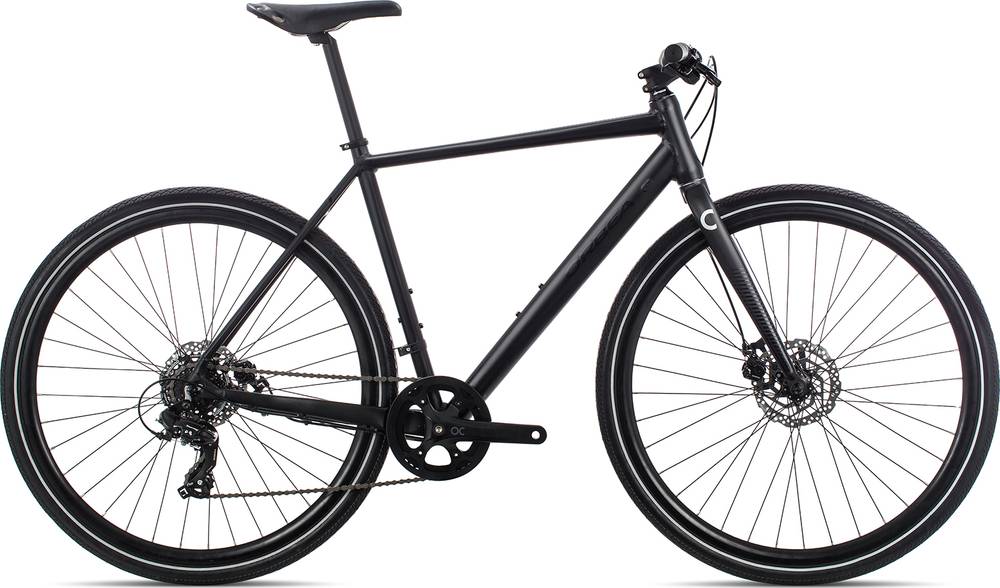

CARPE 40 belongs to the Orbea Carpe model. Orbea released 17 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
The most economical model, the Orbea CARPE 40 2018 has a starting price of 649$. Orbea CARPE 30 2018 on the other hand is the most expensive at 749$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for General Urban bikes
If you want to purchase a solid General Urban bike, it is important to know that the average cost is 499$. However, even though the average price of a General Urban bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2018 and its price was 649$. Doing a quick comparison, we notice that CARPE 40 price is 30.06% higher than the average cost of a General Urban bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
When it comes to the fork, this bike has a steel one, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels size
The wheels on CARPE 40 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
CARPE 40 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
