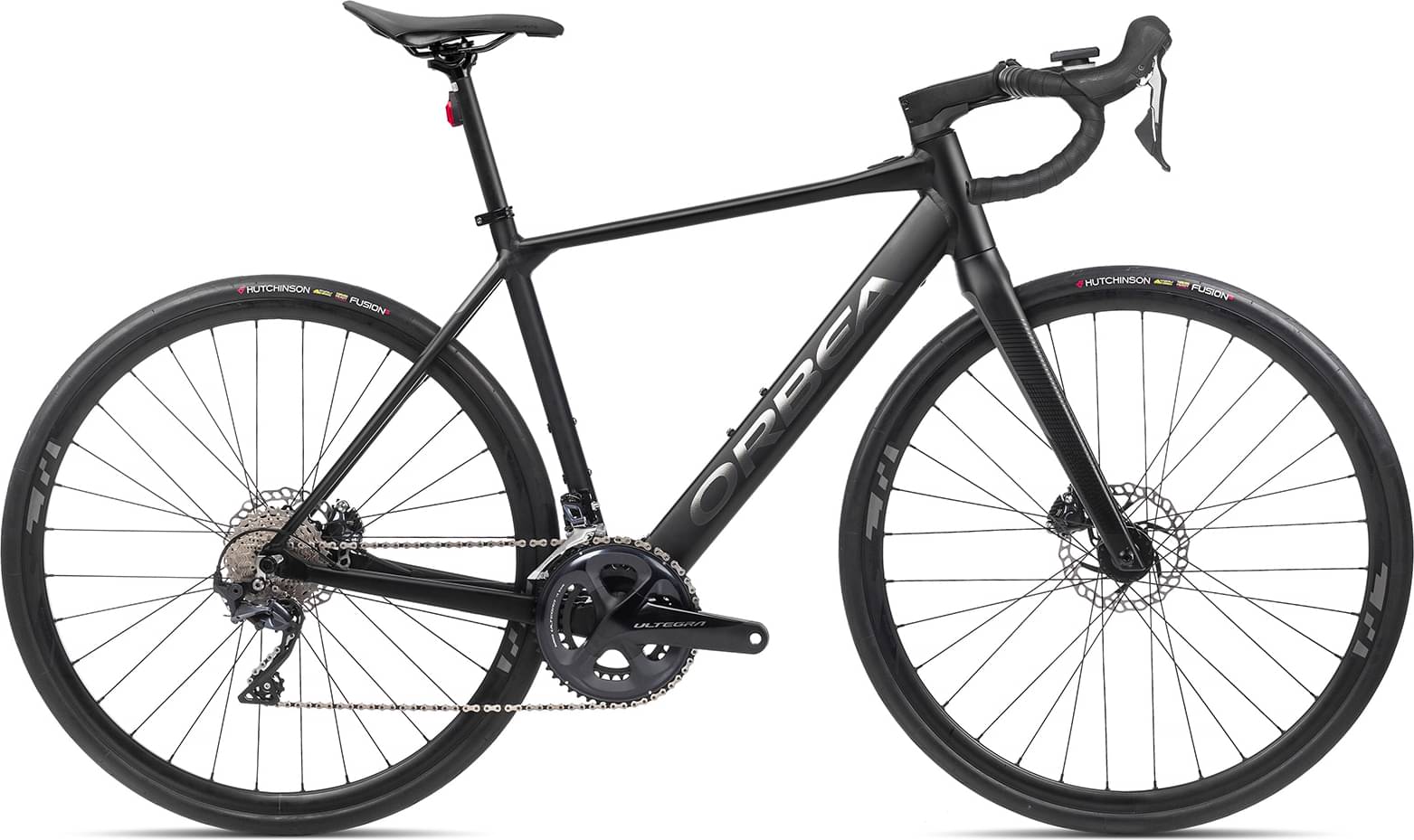

Orbea GAIN D20 20mph 2022
2022 E-bike
Estimate price |
4,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Motor MAHLE hub-drive -
Battery Mahle 36V/6.9A 248Wh ANT+ -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 161cm
SM
159cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Gain Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, safety screw, 135x9 QR, Flat Mount disc mount, 700x40 maximun tyre, 1" 1/2 semiintegrated head set, 41x86,5 Pressfit botton bracket.
Suspension Fork
Gain Hydro carbon fork, full carbon, 1-1/8" - 1.5" tappered head tube compatible, 700x40 maximun tyre, flat mount disc mount, Thru axle 12x100mm
Drivetrain
Rear Derailleur
Shimano Ultegra R8000 GS
Front Derailleur
Shimano Ultegra R8000
Shift Levers
Shimano ST-8020
Cassette
Shimano Ultegra R8000 11-32t 11-Speed
Crank
Shimano Ultegra R8000 34x50t
Bottom Bracket
BB86/BB92, 86mm, press-fit
Chain
KMC X11
Wheels
Rims
Ready GR
Tires
Hutchinson Fusion 5 Performance TLR 700x30
Brakes
Brakes
Shimano R8070 Hydraulic Disc
Cockpit
Stem
OC RP21 Road Performance ICR, -6º, IFC01 Computer mount interface
Handlebar
OC RP20 Road Performance SL, Reach 80, Drop 125, w/Di2 hole
Headset
Acros Alloy 1-1/2" Internal Cable Routing
Seat
Saddle
Fizik Aliante R5
Seatpost
OC 27.2 Offset 0, for integrated light
Motor & Battery
Motor
Mahle motor hub X35 Plus 20mph
Battery
Mahle 36V/6.9A 248Wh ANT+
Remote
OC monochrome ANT+ LEV
Charger
Mahle X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.47 mm | 1.49 mm | 1.51 mm | 1.53 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 579 mm | 593 mm | 608 mm | 627 mm | 641 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 61 mm | 58 mm | 58 mm | 54 mm |
| Stack | 517 mm | 542 mm | 567 mm | 592 mm | 617 mm |
| Reach | 358 mm | 369 mm | 380 mm | 391 mm | 402 mm |
| Top Tube Length | 499 mm | 522 mm | 539 mm | 563 mm | 581 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 460 mm | 485 mm | 515 mm | 545 mm | 575 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 97 mm | 122 mm | 146 mm | 172 mm | 196 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 980 mm | 994 mm | 1009 mm | 1028 mm | 1042 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm |
| Standover Height | 723 mm | 741 mm | 765 mm | 790 mm | 809 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 159 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 161 cm | 171 cm | 181 cm | 191 cm | 200 cm |
Model Overview
GAIN D20 20mph is part of the Orbea E Gain model. There are 78 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Orbea GAIN D50 2022 is the cheapest e-bike model and costs 2972$. Orbea GAIN M10i 20mph 2022 is the most expensive one and costs 10799$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Endurance e-bikes average price
Our math shows that the average cost of a dependable Endurance e-bike is 3800$. However, you could also get a good Endurance e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4499$. Comparing the average cost of an Endurance e-bike to this one, you will see that GAIN D20 20mph price is 18.39% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on GAIN D20 20mph are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
GAIN D20 20mph comes in 5 sizes, that range from 150 cm – 200 cm (4.92 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
