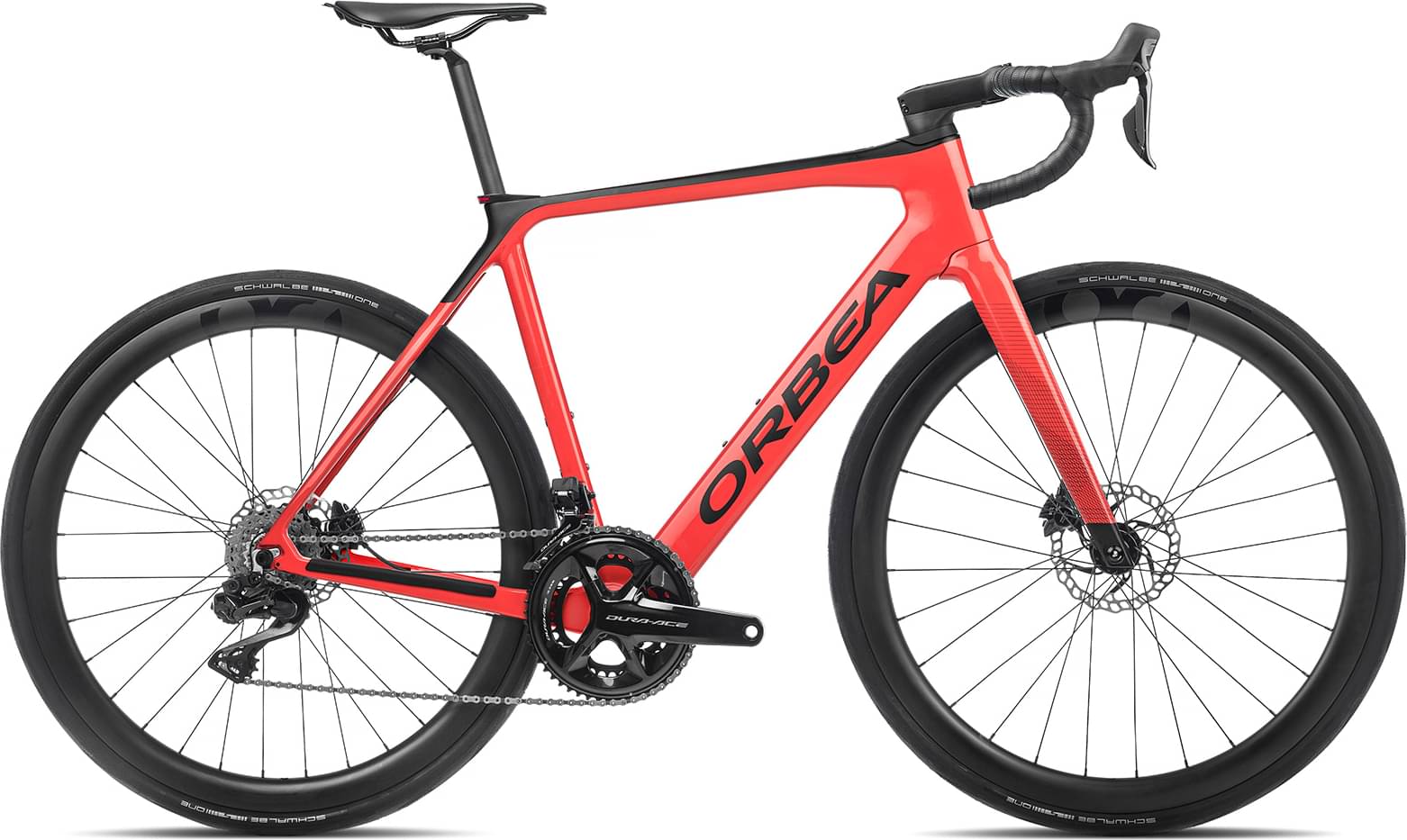

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Motor MAHLE hub-drive -
Battery Mahle 36V/6.9A 248Wh ANT+ -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 161cm
SM
159cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with integrated STVZO rear light, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x40 maximun tyre, 1" 1/2 semi head set, BB386 EVO.
Suspension Fork
Gain OMR carbon fork, with 1-1/5 carbon steerer, 700x40 maximun tyre, flat mount disc mount, 12x100mm Thrue Axle, with down tube aero integration.
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2 R9250
Front Derailleur
Shimano Dura-Ace Di2 R9250
Shift Levers
Shimano R9270
Cassette
Shimano Dura-Ace R9200 11-30t 12-Speed
Crank
Shimano Dura-Ace R9200 34x50t
Bottom Bracket
BB86/BB92, press-fit
Chain
Shimano CN-9100
Wheels
Rims
OC2 Carbon 42 Tubeless Ready
Tires
Schwalbe ONE 30-622, 700x30C, Performance Line RaceGuard, TLE, ADDIX
Brakes
Brakes
Shimano R9270 Hydraulic Disc
Cockpit
Stem
OC RP10 Road Performance ICR, -8º, IFC01 Computer mount interface
Handlebar
OC RP10 Road Performance Carbon, Reach 80, Drop 125, w/Di2 hole
Headset
Acros Alloy 1-1/2" Internal Cable Routing
Seat
Saddle
Fizik Antares R5 Versus EVO Regular
Seatpost
OC XP10 Performance Carbon SB20, 27,2mm, w/Micro tilt adjustment
Motor & Battery
Motor
Mahle motor hub X35 Plus 25kmh
Battery
Mahle 36V/6.9A 248Wh ANT+
Remote
Mahle Pulsar One monochrome ANT+ LEV
Charger
Mahle X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.48 mm | 1.5 mm | 1.52 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 267 mm | 267 mm | 269 mm |
| Front Center | 578 mm | 593 mm | 613 mm | 632 mm | 640 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 61 mm | 53 mm | 53 mm | 56 mm |
| Stack | 529 mm | 554 mm | 579 mm | 604 mm | 629 mm |
| Reach | 370 mm | 381 mm | 392 mm | 403 mm | 414 mm |
| Top Tube Length | 511 mm | 534 mm | 551 mm | 575 mm | 593 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 455 mm | 485 mm | 515 mm | 545 mm | 575 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 80.5 mm | 105 mm | 131 mm | 158 mm | 182 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 990 mm | 1004 mm | 1025 mm | 1044 mm | 1052 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 74 mm | 74 mm | 74 mm |
| Standover Height | 745 mm | 772 mm | 801 mm | 827 mm | 854 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 159 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 161 cm | 171 cm | 181 cm | 191 cm | 200 cm |
Model Overview
GAIN M10i completes the Orbea E Gain model. 78 e-bikes variations carry this model name so far. You can easily view all of the Orbea E Gain e-bikes models from 2022, here.
Model range prices
The most economical model, the Orbea GAIN D50 2022 has a starting price of 2972$. Orbea GAIN M10i 20mph 2022 on the other hand is the most expensive at 10799$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance e-bikes
Our math shows that the average cost of a dependable Endurance e-bike is 3800$. However, you could also get a good Endurance e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 10192$. If we compare this with the average Endurance e-bike cost we notice that the price is 168.21% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
GAIN M10i components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The GAIN M10i 2022 e-bike is equipped with 700c carbon wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The GAIN M10i comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 5 sizes. They vary from 150 cm – 200 cm (4.92 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
