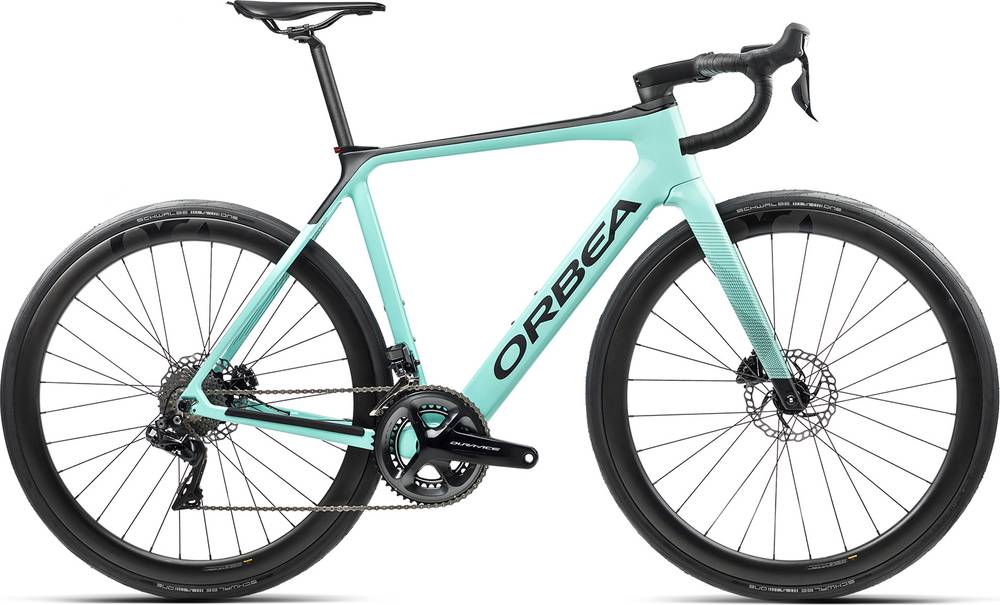

Orbea GAIN M10i 20mph 2021
2021 E-bike
Estimate price |
9,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Motor hub-drive -
Battery Ebikemotion 36V/6.9A 248Wh ANT+ -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 161cm
SM
159cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with integrated STVZO rear light, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x40 maximun tyre, 1" 1/2 semi head set, BB386 EVO.
Suspension Fork
Gain OMR carbon fork, with 1-1/5 carbon steerer, 700x40 maximun tyre, flat mount disc mount, 12x100mm Thrue Axle, with down tube aero integration.
Drivetrain
Rear Derailleur
Shimano Dura-Ace 9150 Di2
Front Derailleur
Shimano Dura-Ace 9150 Di2
Shift Levers
Shimano R9170
Cassette
Shimano Dura-Ace R9100 11-30t 11-Speed
Crank
Shimano Dura-Ace 9100 34x50t
Bottom Bracket
BB86/BB92, press-fit
Chain
Shimano HG 901
Wheels
Rims
OC2 Carbon 42 Tubeless Ready
Tires
Schwalbe ONE 30-622, 700x30C, Performance Line RaceGuard, TLE, ADDIX
Brakes
Brakes
Shimano R9170 Hydraulic Disc
Cockpit
Stem
Orbea ICR -8º
Handlebar
OC2 Road Carbon, reach 80mm, drop 125mm
Headset
Acros Alloy 1-1/2" Internal Cable Routing
Seat
Saddle
Fizik Antares R5 Versus EVO Regular
Seatpost
OC2 Carbon 27.2 Offset 20
Motor & Battery
Motor
Ebikemotion X35 Plus 20mph
Battery
Ebikemotion 36V/6.9A 248Wh ANT+
Remote
Ebikemotion Pulsar One monochrome ANT+ LEV
Charger
Ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.48 mm | 1.5 mm | 1.52 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 267 mm | 267 mm | 269 mm |
| Front Center | 578 mm | 593 mm | 613 mm | 632 mm | 640 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 61 mm | 53 mm | 53 mm | 56 mm |
| Stack | 529 mm | 554 mm | 579 mm | 604 mm | 629 mm |
| Reach | 370 mm | 381 mm | 392 mm | 403 mm | 414 mm |
| Top Tube Length | 511 mm | 534 mm | 551 mm | 575 mm | 593 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 455 mm | 485 mm | 515 mm | 545 mm | 575 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 95 mm | 120 mm | 146 mm | 172 mm | mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 990 mm | 1004 mm | 1025 mm | 1044 mm | 1052 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 74 mm | 74 mm | 74 mm |
| Standover Height | 712 mm | 789 mm | 823 mm | 843 mm | 876 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 159 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 161 cm | 171 cm | 181 cm | 191 cm | 200 cm |
Model Overview
GAIN M10i 20mph is part of the Orbea E Gain model. Orbea released 78 e-bikes variations of this model so far. You can easily view all of the Orbea E Gain e-bikes models from 2021, here.
Model range prices
Orbea GAIN D50 2021 is the cheapest e-bike model and costs 2869$. Orbea GAIN M10i 20mph 2021 is the most expensive one and costs 9999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance e-bikes
If you want to purchase a solid Endurance e-bike, it is important to know that the average cost is 3800$. However, you could also get a good Endurance e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Orbea released this model in 2021, its price was 9999$. Doing a quick comparison, we notice that GAIN M10i 20mph price is 163.13% higher than the average cost of an Endurance e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
GAIN M10i 20mph has a carbon fork, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on GAIN M10i 20mph are the 700c carbon type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The GAIN M10i 20mph has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 5 sizes. They vary from 150 cm – 200 cm (4.92 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
