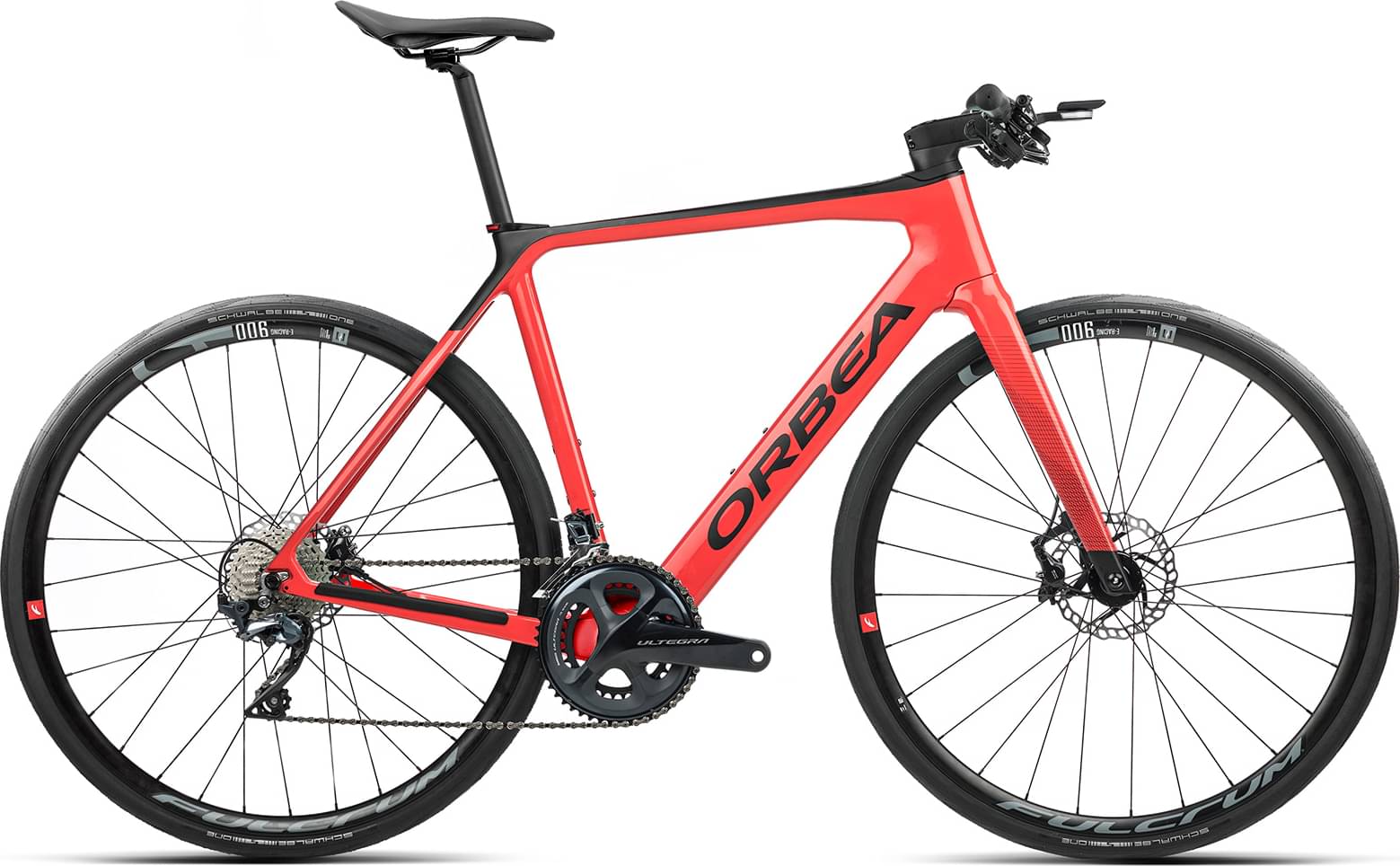

Orbea GAIN M20 Flat Bar 2022
2022 E-bike
Estimate price |
5,734$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Motor MAHLE hub-drive -
Battery Mahle 36V/6.9A 248Wh ANT+ -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 161cm
SM
159cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with integrated STVZO rear light, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x40 maximun tyre, 1" 1/2 semi head set, BB386 EVO.
Suspension Fork
Gain OMR carbon fork, with 1-1/5 carbon steerer, 700x40 maximun tyre, flat mount disc mount, 12x100mm Thrue Axle, with down tube aero integration.
Drivetrain
Rear Derailleur
Shimano Ultegra R8000 GS
Front Derailleur
Shimano Ultegra R8000
Shift Levers
Shimano SL-SR700
Cassette
Shimano Ultegra R8000 11-32t 11-Speed
Crank
Shimano Ultegra R8000 34x50t
Bottom Bracket
BB86/BB92, press-fit
Chain
KMC X11
Wheels
Rims
FULCRUM E-Racing 900
Tires
Schwalbe ONE 30-622, 700x30C, Performance Line RaceGuard, TLE, ADDIX
Brakes
Brakes
Shimano XT M8100 Hydraulic Disc
Cockpit
Stem
OC RP10 Road Performance ICR, -8º, IFC01 Computer mount interface
Handlebar
Alloy 31.8mm 12mm Rise 700mm
Headset
Acros Alloy 1-1/2" Internal Cable Routing
Seat
Saddle
Fizik Aliante R5
Seatpost
OC2 Carbon 27.2 Offset 20
Motor & Battery
Motor
Mahle motor hub X35 Plus 25kmh
Battery
Mahle 36V/6.9A 248Wh ANT+
Remote
Mahle Pulsar One monochrome ANT+ LEV
Charger
Mahle X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.48 mm | 1.5 mm | 1.52 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 267 mm | 267 mm | 269 mm |
| Front Center | 578 mm | 593 mm | 613 mm | 632 mm | 640 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 61 mm | 53 mm | 53 mm | 56 mm |
| Stack | 529 mm | 554 mm | 579 mm | 604 mm | 629 mm |
| Reach | 370 mm | 381 mm | 392 mm | 403 mm | 414 mm |
| Top Tube Length | 511 mm | 534 mm | 551 mm | 575 mm | 593 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 455 mm | 485 mm | 515 mm | 545 mm | 575 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 80.5 mm | 105 mm | 131 mm | 158 mm | 182 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 990 mm | 1004 mm | 1025 mm | 1044 mm | 1052 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 74 mm | 74 mm | 74 mm |
| Standover Height | 745 mm | 772 mm | 801 mm | 827 mm | 854 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 159 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 161 cm | 171 cm | 181 cm | 191 cm | 200 cm |
About this model
GAIN M20 Flat Bar is part of the Orbea E Gain model. Orbea launched 78 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Orbea GAIN D50 2022 is the most affordable e-bike of this model and has a price of 2972$. On the other hand, Orbea GAIN M10i 20mph 2022, is the most expensive and costs 10799$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Endurance e-bikes
If you want to purchase a solid Endurance e-bike, it is important to know that the average cost is 3800$. However, even though the average price of an Endurance e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5308$. Comparing this to the average Endurance e-bike price, we see that the price is 39.68% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
GAIN M20 Flat Bar components
Fork material
The fork on this e-bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the GAIN M20 Flat Bar e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 5 sizes. They vary from 150 cm – 200 cm (4.92 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
