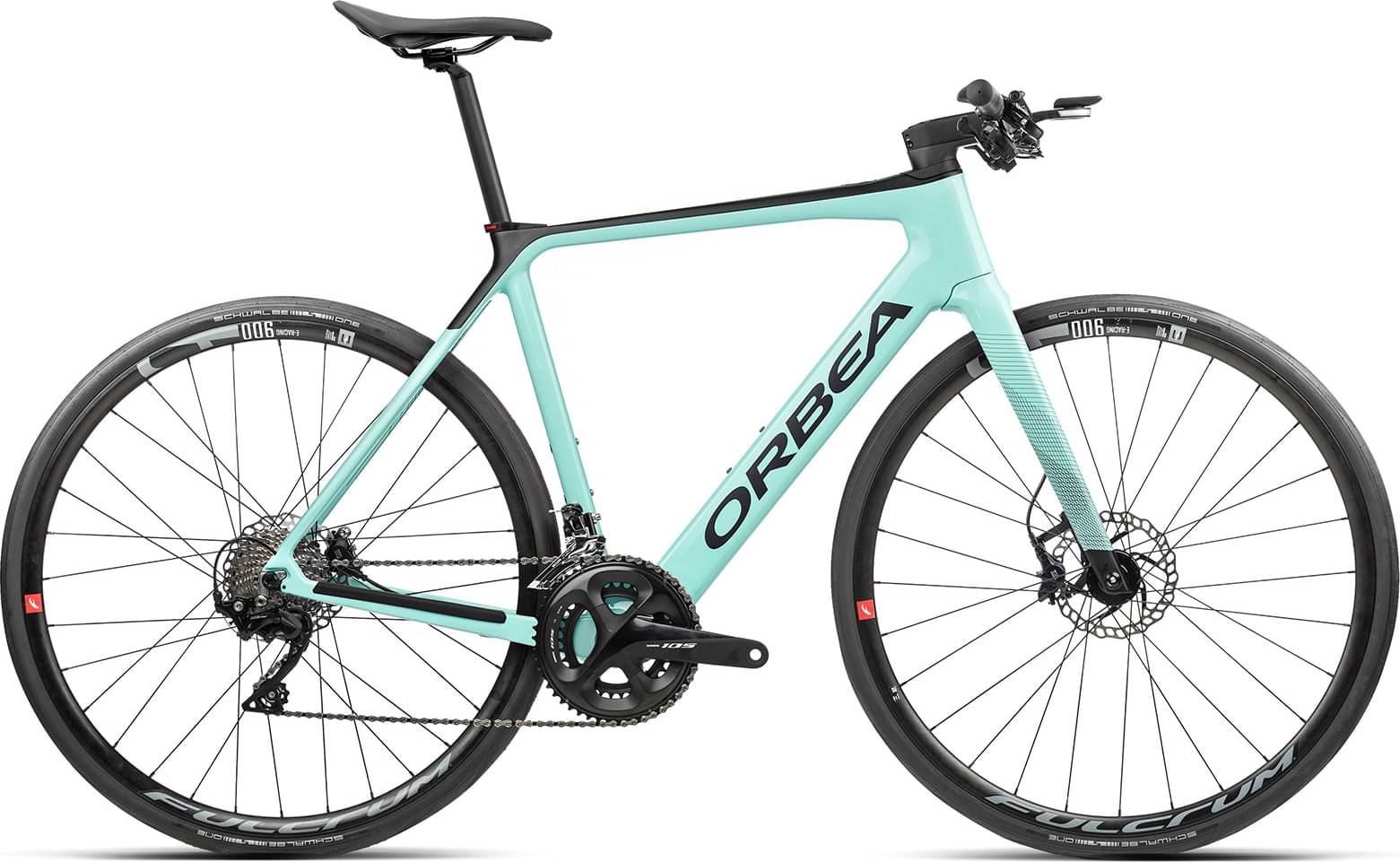

Orbea GAIN M30 Flat Bar 2022
2022 E-bike
Estimate price |
5,160$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Motor MAHLE hub-drive -
Battery Mahle 36V/6.9A 248Wh ANT+ -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 161cm
SM
159cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with integrated STVZO rear light, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x40 maximun tyre, 1" 1/2 semi head set, BB386 EVO.
Suspension Fork
Gain OMR carbon fork, with 1-1/5 carbon steerer, 700x40 maximun tyre, flat mount disc mount, 12x100mm Thrue Axle, with down tube aero integration.
Drivetrain
Rear Derailleur
Shimano 105 R7000 GS
Front Derailleur
Shimano 105 R7000
Shift Levers
Shimano SL-SR700
Cassette
Shimano 105 R7000 11-32t 11-Speed
Crank
Shimano 105 R7000 34x50t
Bottom Bracket
BB86/BB92, press-fit
Chain
KMC X11
Wheels
Rims
FULCRUM E-Racing 900
Tires
Schwalbe ONE 30-622, 700x30C, Performance Line RaceGuard, TLE, ADDIX
Brakes
Brakes
Shimano SLX M7100 Hydraulic Disc
Cockpit
Stem
OC RP10 Road Performance ICR, -8º, IFC01 Computer mount interface
Handlebar
Alloy 31.8mm 12mm Rise 700mm
Headset
Acros Alloy 1-1/2" Internal Cable Routing
Seat
Saddle
Fizik Aliante R5
Seatpost
OC2 Carbon 27.2 Offset 20
Motor & Battery
Motor
Mahle motor hub X35 Plus 25kmh
Battery
Mahle 36V/6.9A 248Wh ANT+
Remote
Mahle Pulsar One monochrome ANT+ LEV
Charger
Mahle X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.48 mm | 1.5 mm | 1.52 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 267 mm | 267 mm | 269 mm |
| Front Center | 578 mm | 593 mm | 613 mm | 632 mm | 640 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 61 mm | 53 mm | 53 mm | 56 mm |
| Stack | 529 mm | 554 mm | 579 mm | 604 mm | 629 mm |
| Reach | 370 mm | 381 mm | 392 mm | 403 mm | 414 mm |
| Top Tube Length | 511 mm | 534 mm | 551 mm | 575 mm | 593 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 455 mm | 485 mm | 515 mm | 545 mm | 575 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 80.5 mm | 105 mm | 131 mm | 158 mm | 182 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 990 mm | 1004 mm | 1025 mm | 1044 mm | 1052 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 74 mm | 74 mm | 74 mm |
| Standover Height | 745 mm | 772 mm | 801 mm | 827 mm | 854 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 159 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 161 cm | 171 cm | 181 cm | 191 cm | 200 cm |
About this model
GAIN M30 Flat Bar completes the Orbea E Gain model. Orbea released 78 e-bikes variations of this model so far. Take a sneak peek at all Orbea E Gain e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Orbea GAIN D50 2022 has a starting price of 2972$. Orbea GAIN M10i 20mph 2022 on the other hand is the most expensive at 10799$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Endurance e-bikes average price
If you want to purchase a solid Endurance e-bike, it is important to know that the average cost is 3800$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 4777$. Comparing this to the average Endurance e-bike price, we see that the price is 25.71% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the GAIN M30 Flat Bar model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea GAIN M30 Flat Bar has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 5 sizes. They vary from 150 cm – 200 cm (4.92 ft – 6.56 ft). In short, you can easily find one that suits you.
