Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCR 34
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH Performance 500Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Keram 2019, Hydroformed Alloy 6061, Hide out battery technology, bottle cage and dual battery compatible and hidden kickstand compatible
Suspension Fork
SR Suntour XCR34 LO R Air 100mm Q15x110 Boost
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano Deore M6100
Cassette
Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
Crank
PW EB04-NW32 G4
Chain
KMC e12 Turbo Silver
Pedals
VP-229 Black with reflectors
Wheels
Rims
Mach1 Klixx 23c Tubeless Ready
Tires
Schwalbe Johnny Watts, 29x2.35 RaceGuard Reflective Tape
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Stem
Alloy 31.8mm interface 7º
Handlebar
OC1 Flat 31.8mm 740mm
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Selle Royal Vivo
Seatpost
Alloy 31.6x400mm Offset 0
Motor & Battery
Motor
BOSCH Performance CX Cruise (25km/h) BDU450CX
Battery
BOSCH Performance 500Wh
Remote
BOSCH Performance Purion
Charger
Compact Charger 2A (100-240V) Worldwide
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.696 mm | 1.639 mm | 1.749 mm |
| Bottom Bracket Height | 307 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 640 mm | 681 mm | 705 mm | 742 mm |
| Rake | 42 mm | 51 mm | 51 mm | 51 mm |
| Trail | 111 mm | 99 mm | 92 mm | 120 mm |
| Stack | 600 mm | 636 mm | 659 mm | 752 mm |
| Reach | 355 mm | 375 mm | 402 mm | 430 mm |
| Top Tube Length | 538 mm | 569 mm | 603 mm | 638.4 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 405 mm | 457 mm | 515 mm |
| Head Tube Angle | 67 ° | 67 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 114 mm | 133 mm | 158 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1112 mm | 1149 mm | 1173 mm | 1210 mm |
| Bottom Bracket Drop | 43 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 798 mm | 825 mm | 861 mm | 893 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 195 cm |
Model Overview

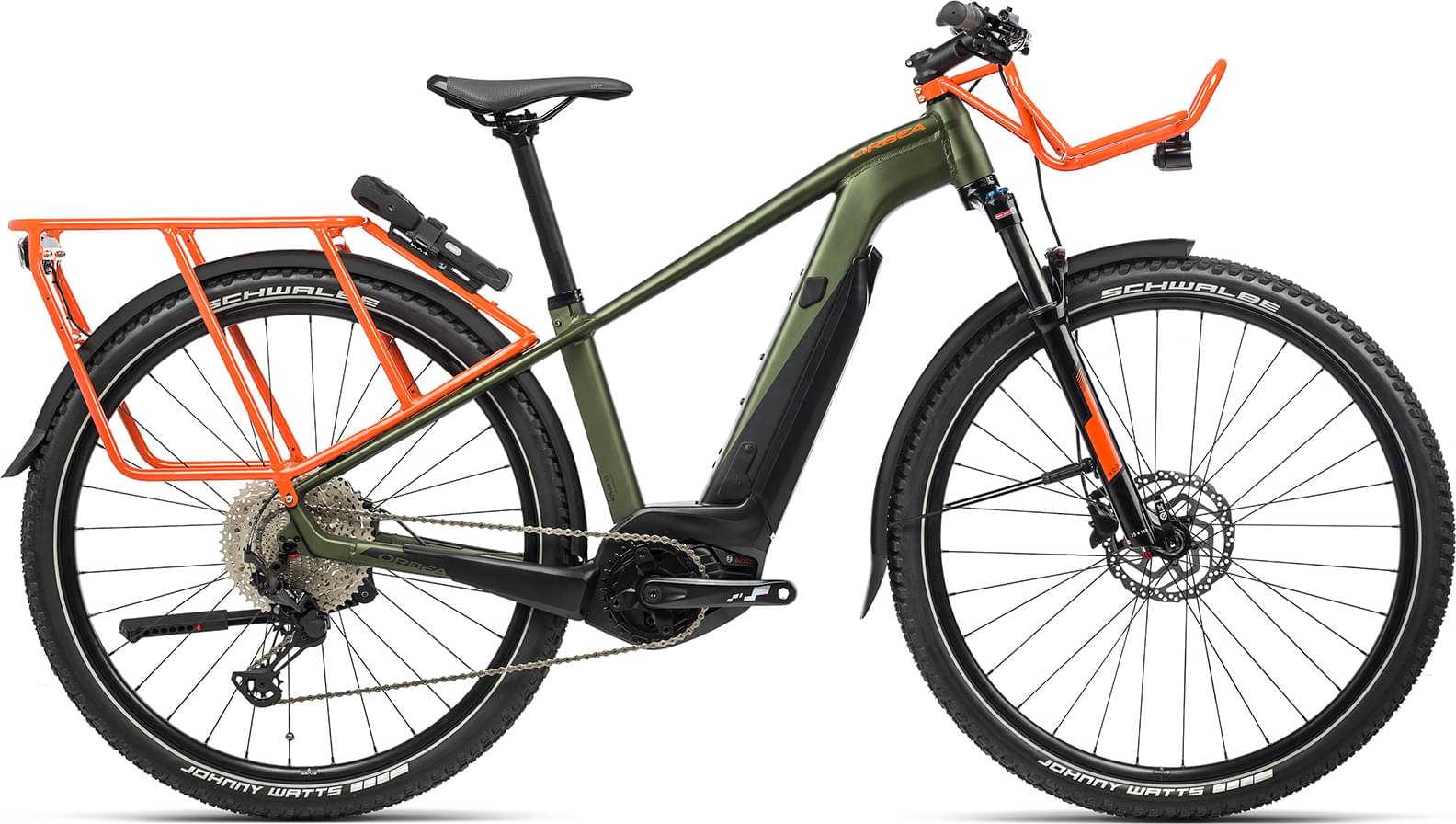

KERAM SUV 20 belongs to the Orbea E Keram model. 11 e-bikes variations carry this model name so far. You can easily view all of the Orbea E Keram e-bikes models from 2022, here.
Model range prices
Orbea KERAM 30 27.5 2022 is the cheapest e-bike model and costs 2653$. Orbea KERAM SUV 20 2022 is the most expensive one and costs 4034$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry e-bikes
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2022 and its price was 4034$. Doing a quick comparison, we notice that KERAM SUV 20 price is 64.45% more expensive than the average cost of a Crosscountry e-bike.
Overview of components
Fork
The Suntour XCR 34 is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the KERAM SUV 20 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The KERAM SUV 20 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Orbea KERAM SUV 20 e-bike has 4 sizes, in the range of 150 cm – 195 cm (4.92 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
