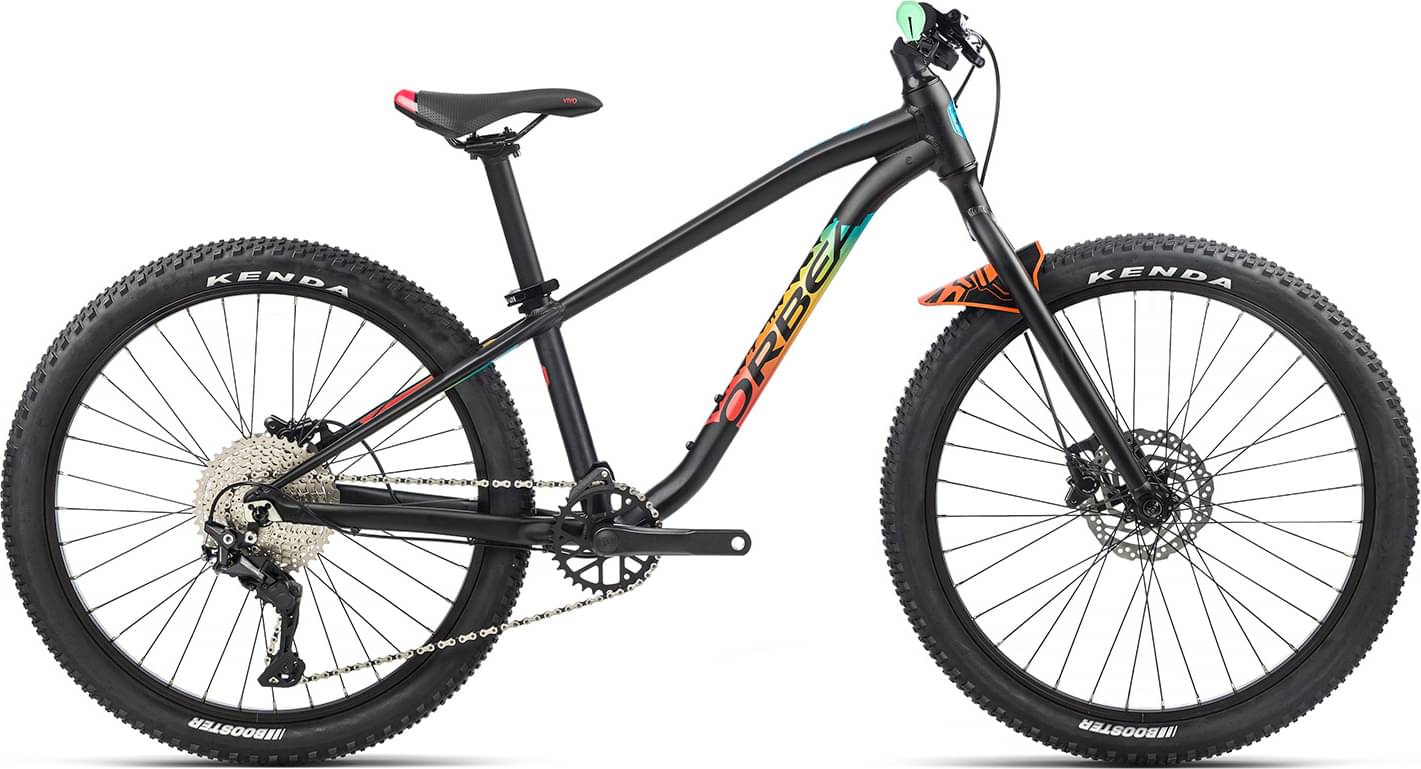

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 24" -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
20"
110cm - 135cm
24"
125cm - 150cm
27cm
140cm - 165cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Laufey 24 6061 Aluminum 2021, 135x9 QR, Post Mount Disc Mount, 31,6 Seat Post, Internal Cable Routing, Removable hanger.
Suspension Fork
Orbea Laufey 24 6061 Aluminum 2021, 100x9 QR, Post Mount Disc Mount, Mini Fender ready
Drivetrain
Rear Derailleur
Shimano Deore M5120 SGS Shadow Plus
Shift Levers
Shimano Deore M4100
Cassette
Sun Race 11-42t 10-Speed
Crank
Extra light 32t, 152mm, w/Chainguard
Chain
KMC X10
Chain Guide
Orbea OC chainguide
Pedals
VP-229 Black with reflectors
Wheels
Rims
Orbea Alloy 24"
Tires
Kenda Booster K1277 24x2.20" 30TPI
Brakes
Brakes
Shimano MT201 Hydraulic Disc
Cockpit
Stem
Race Face Ride
Handlebar
Alloy 31.8mm Riser 560mm
Headset
VP-Z104PD 1-1/8" Semi-Cartridge
Seat
Saddle
Selle Royal Vivo Junior
Seatpost
Digit Alloy 31,6x300mm Offset 0
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 20" | 24" | 27cm |
|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.43 mm | 1.48 mm |
| Bottom Bracket Height | 248 mm | 288 mm | 315 mm |
| Front Center | 555 mm | 627 mm | 681 mm |
| Rake | 40 mm | 40 mm | 44 mm |
| Stack | 440 mm | 513 mm | 567 mm |
| Reach | 315 mm | 359 mm | 382 mm |
| Top Tube Length | 443 mm | 508 mm | 536 mm |
| Seat Tube Angle | 74 ° | 74 ° | 75 ° |
| Seat Tube Length | 257 mm | 300 mm | 343 mm |
| Head Tube Angle | 66 ° | 66 ° | 65.5 ° |
| Head Tube Length | 90 mm | 100 mm | 95 mm |
| Chainstay Length | 343 mm | 388 mm | 418 mm |
| Wheelbase | 897 mm | 1012 mm | 1095 mm |
| Bottom Bracket Drop | 23 mm | 35 mm | 43 mm |
| Standover Height | 498 mm | 586 mm | 629 mm |
| Wheels | 24" | 24" | 24" |
| Rider Min Height | 110 cm | 125 cm | 140 cm |
| Rider Max Height | 135 cm | 150 cm | 165 cm |
Model Overview
LAUFEY 24 H30 is part of the Orbea Laufey model. 26 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Orbea LAUFEY 20 H30 2022 is the cheapest bike model and costs 678$. Orbea LAUFEY H-LTD 2022 is the most expensive one and costs 2441$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Mountain bikes
According to our calculations, the average cost of a Mountain bike that is reliable is 616$. However, even if your budget is less than the average, you might still be able to get a top-quality Mountain bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Orbea released this model in 2022, its price was 785$. Comparing the average cost of a Mountain bike to this one, you will see that LAUFEY 24 H30 price is 27.44% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
LAUFEY 24 H30 components
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When leaving the production line, the LAUFEY 24 H30 model has 24″ aluminum wheels. The 24″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
When you want to stop the bike in time, the brakes are vital. The LAUFEY 24 H30 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 110 cm – 165 cm (3.61 ft – 5.41 ft). In conclusion, you won’t have a problem finding one that suits you.
