Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCR 32 Air
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
20"
110cm - 135cm
24"
125cm - 150cm
27cm
140cm - 165cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Laufey 27,5 6061 Aluminum Triple Butted 2021, Tapered head tube, Thru axle 12x148mm Boost, Post Mount Disc Mount, 31,6 Seat Post, Internal Cable Routing, Removable hanger, ISCG 05.
Suspension Fork
SR Suntour XCR32 LO R Air 120mm Q15x110 Boost
Drivetrain
Rear Derailleur
Shimano Deore M5120 SGS Shadow Plus
Shift Levers
Shimano Deore M4100
Cassette
Sun Race 11-42t 10-Speed
Crank
OC1 Alloy forged Boost 32t
Chain
KMC X10
Chain Guide
Orbea OC chainguide
Pedals
VP-229 Black with reflectors
Wheels
Rims
Mach1 Klixx 23c Tubeless Ready
Tires
Schwalbe Nobby Nic Perf, 27.5x2.35 TwinSkin TLR
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Stem
Race Face Ride
Handlebar
Alloy Flat 31.8mm 720mm
Headset
FSA 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Selle Royal Vivo
Seatpost
OC2 Dropper 31.6mm 100mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 20" | 24" | 27cm |
|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.43 mm | 1.48 mm |
| Bottom Bracket Height | 248 mm | 288 mm | 315 mm |
| Front Center | 555 mm | 627 mm | 681 mm |
| Rake | 40 mm | 40 mm | 44 mm |
| Trail | 114 mm | 114 mm | 114 mm |
| Stack | 440 mm | 513 mm | 567 mm |
| Reach | 315 mm | 359 mm | 382 mm |
| Top Tube Length | 443 mm | 508 mm | 536 mm |
| Seat Tube Angle | 74 ° | 74 ° | 75 ° |
| Seat Tube Length | 257 mm | 300 mm | 343 mm |
| Head Tube Angle | 66 ° | 66 ° | 65.5 ° |
| Head Tube Length | 90 mm | 100 mm | 95 mm |
| Chainstay Length | 343 mm | 388 mm | 418 mm |
| Wheelbase | 897 mm | 1012 mm | 1095 mm |
| Bottom Bracket Drop | 23 mm | 35 mm | 43 mm |
| Standover Height | 498 mm | 586 mm | 629 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 110 cm | 125 cm | 140 cm |
| Rider Max Height | 135 cm | 150 cm | 165 cm |
Model Overview

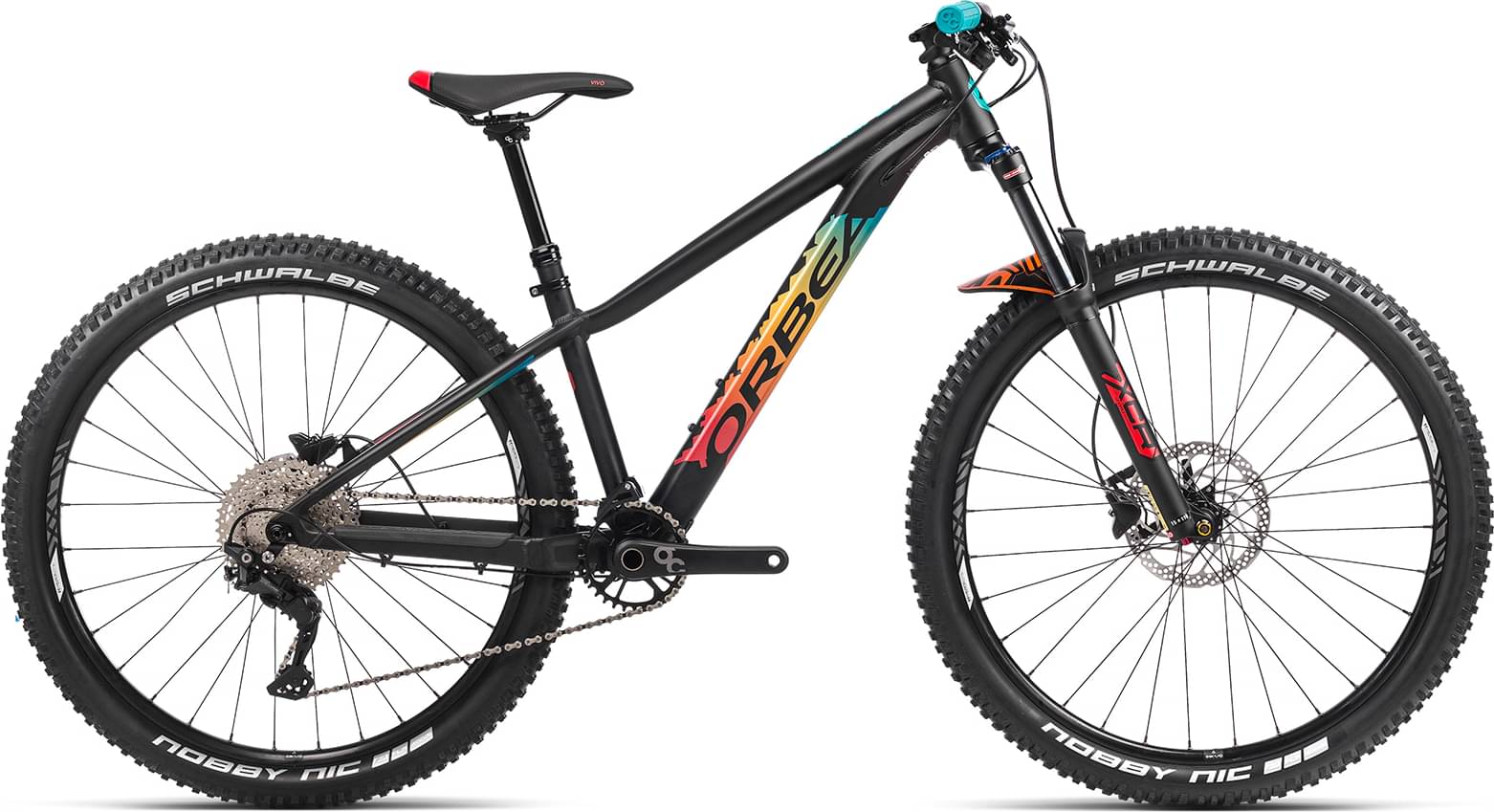

LAUFEY 27 H20 is an Orbea Laufey model. 26 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Orbea LAUFEY 20 H30 2022 has a starting price of 678$. Orbea LAUFEY H-LTD 2022 on the other hand is the most expensive at 2441$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Orbea LAUFEY 27 H20 price was 1167$. Doing a quick comparison, we notice that LAUFEY 27 H20 price is 136.68% smaller than the average cost of a Trail bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
LAUFEY 27 H20 components
Fork
The fork installed on this bike is the Suntour XCR 32 Air model. The travel on this model is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the LAUFEY 27 H20 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The LAUFEY 27 H20 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Orbea LAUFEY 27 H20 bike has 3 sizes, in the range of 110 cm – 165 cm (3.61 ft – 5.41 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Orbea model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
