Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 165cm
MD
160cm - 175cm
LG
170cm - 185cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Laufey Hydro Triple Butted 29" Boost 12x148 ISCG 05
Suspension Fork
RockShox Recon RL Crown adjust Q15X110 Boost Solo Air 140mm
Drivetrain
Rear Derailleur
Shimano Deore M5100 SGS Shadow Plus
Shift Levers
Shimano Deore M5100
Cassette
Sun Race 11-51t 11-Speed
Crank
OC1 Alloy forged Boost 32t
Chain
KMC X11
Wheels
Rims
Orbea OC1 29c Tubeless Ready
Tires
Maxxis Rekon 2.60" FB 60 TPI Dual Exo TR
Brakes
Brakes
Shimano MT201 Hydraulic Disc
Cockpit
Stem
OC1 3D Forged 35mm interface 7º
Handlebar
OC1 35mm 12mm Rise 780mm
Headset
FSA 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Selle Royal 2043 HRN
Seatpost
OC2 Dropper 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.46 mm | 1.41 mm | 1.37 mm |
| Bottom Bracket Height | 313.5 mm | 313.5 mm | 313.5 mm | 313.5 mm |
| Front Center | 719 mm | 747 mm | 775 mm | 808 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 122 mm | 122 mm | 122 mm | 122 mm |
| Stack | 630 mm | 634 mm | 643 mm | 662 mm |
| Reach | 407 mm | 433 mm | 457 mm | 482 mm |
| Top Tube Length | 576 mm | 604 mm | 630 mm | 660 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 381 mm | 432 mm | 470 mm | 521 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1144 mm | 1172 mm | 1200 mm | 1233 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 676 mm | 712 mm | 724 mm | 761 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 198 cm |
Model Overview

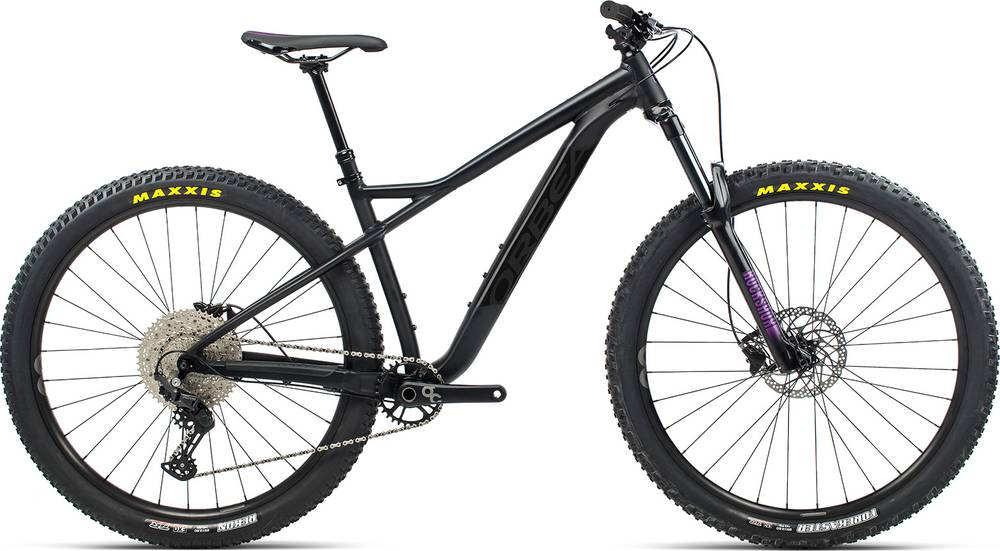

LAUFEY H30 is an Orbea Laufey model. Orbea released 26 bikes variations of this model so far. You can easily view all of the Orbea Laufey bikes models from 2020, here.
Model range prices
Orbea LAUFEY H30 2020 is the most affordable bike of this model and has a price of 1599$. On the other hand, Orbea LAUFEY H LTD 2020, is the most expensive and costs 2499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Orbea LAUFEY H30 price was 1599$. Comparing the average cost of a Trail bike to this one, you will see that LAUFEY H30 price is 72.73% smaller.
LAUFEY H30 components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the LAUFEY H30 bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The LAUFEY H30 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
LAUFEY H30 comes in 4 sizes, that range from 150 cm – 198 cm (4.92 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
