Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Travel Front 40mm -
Fork SunTour
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 1 × 7 -
Brakes Rim
Sizing
Recommended size guide.
16"
100cm - 116cm
20"
114cm - 136cm
24"
134cm - 156cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Hexatubing Aluminum. Mx Compact Geometry. Internal cable routing. Only disc.
Suspension Fork
SR Suntour M3010 40mm V-Brake QR
Drivetrain
Rear Derailleur
Shimano Altus M310
Shift Levers
Shimano M310
Cassette
Shimano TZ31 14-34t 7-Speed
Crank
Alloy 36t (127)
Chain
KMC Z50
Pedals
Resine BMX
Wheels
Rims
Orbea Alu 20"
Tires
Kenda 922 20x2.00
Brakes
Brakes
Alu V-Brake
Brake Levers
Orbea
Cockpit
Stem
Orbea OC-II
Handlebar
Orbea OC-I Riser 540mm
Headset
1-1/8" Semi-Integrated
Seat
Saddle
Velo 7087
Seatpost
Orbea OC 27.2x250mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 20" | 24" | 26" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.12 mm | 1.33 mm | 1.42 mm | 1.46 mm |
| Bottom Bracket Height | 192 mm | 237 mm | 272 mm | 280 mm |
| Front Center | 433 mm | 488 mm | 554 mm | 594 mm |
| Rake | 35 mm | 33 mm | 36 mm | 39 mm |
| Stack | 317 mm | 419 mm | 494 mm | 532 mm |
| Reach | 282 mm | 314 mm | 347 mm | 365 mm |
| Top Tube Length | 379.3 mm | 439 mm | 513 mm | 530 mm |
| Seat Tube Angle | 73.2 ° | 73 ° | 72 ° | 73 ° |
| Seat Tube Length | 207 mm | 257 mm | 329 mm | 367 mm |
| Head Tube Angle | 71 ° | 72 ° | 71 ° | 70 ° |
| Head Tube Length | 90 mm | 95 mm | 90 mm | 90 mm |
| Chainstay Length | 305 mm | 337 mm | 381 mm | 419 mm |
| Wheelbase | 738 mm | 824 mm | 933 mm | 1009 mm |
| Bottom Bracket Drop | 8 mm | 16 mm | 30 mm | 45 mm |
| Standover Height | 436 mm | 527 mm | 654 mm | 707 mm |
| Wheels | 20" | 20" | 20" | 20" |
| Rider Min Height | 100 cm | 114 cm | 134 cm | 154 cm |
| Rider Max Height | 116 cm | 136 cm | 156 cm | cm |
About this model

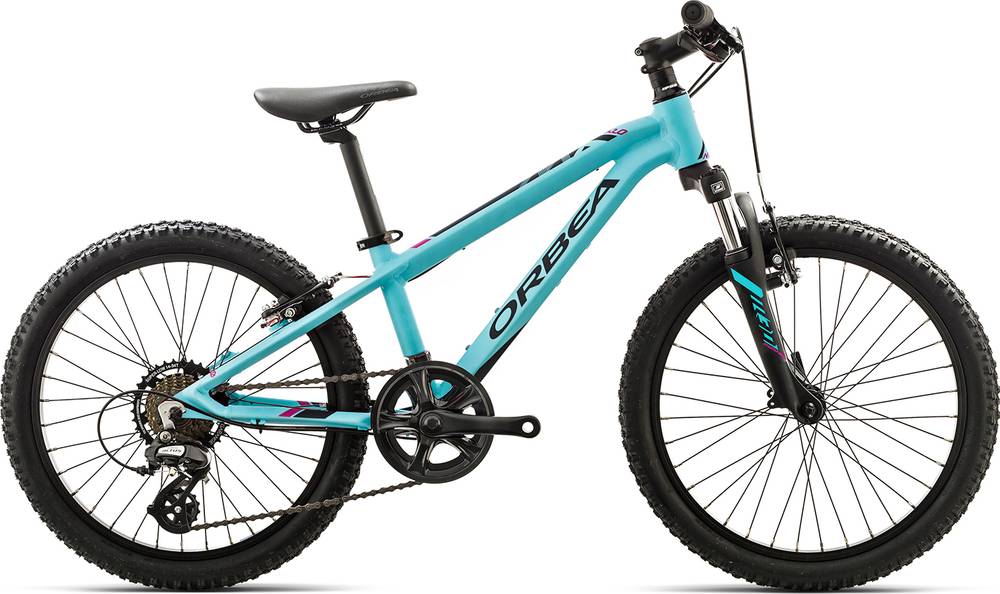

MX 20 XC is an Orbea Mx model. 76 bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Orbea MX 20 XC 2018 is the most economical model, with a starting price of 399$. Orbea MX 10 29 2018 on the other hand costs 999$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Mountain bikes
According to our calculations, the average cost of a Mountain bike that is reliable is 616$. However, even if your budget is less than the average, you might still be able to get a top-quality Mountain bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Orbea MX 20 XC price was 399$. Comparing the average cost of a Mountain bike to this one, you will see that MX 20 XC price is 54.39% lower.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
MX 20 XC components
Fork
The SunTour is included from the factory. It has a travel distance of 40mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the MX 20 XC model has 20″ aluminum wheels. The 20″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
