Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Occam AM OMR 150mm travel UFO 27.5 Boost 12x148 PF
Suspension Fork
Fox 34 Float Factory 150 FIT4 3-Pos-Adj QR15x110 Kashima
Rear Shock
Fox DPX2 Factory 3-Position Adjust Evol Kashima custom tune 210x55mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle Gold
Shift Levers
SRAM GX Eagle
Cassette
SRAM GX XG-1275 Eagle 10-50t 12-Speed
Crank
SRAM Descendant Carbon Eagle Dub Boost 32t
Chain
SRAM GX Eagle 12-Speed
Pedals
N/A
Wheels
Rims
DT M-1900 Spline 30c TLR 15/110mm CL
Tires
Maxxis Ardent 2.40" TLR 60 Tpi Exo Dual
Brakes
Brakes
Shimano XT M8000 Hydraulic Disc
Cockpit
Stem
Race Face Aeffect 35mm interface
Handlebar
Race Face Aeffect 35 20mm Riser 760mm
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Selle Italia XR Trail
Seatpost
Race Face Aeffect Dropper 31.6x385/125mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.35 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm |
| Front Center | 696 mm | 724 mm | 748 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 113 mm | 114 mm | 113 mm |
| Stack | 578 mm | 588 mm | 597 mm |
| Reach | 399 mm | 424 mm | 443 mm |
| Top Tube Length | 556 mm | 583 mm | 605 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 393 mm | 432 mm | 470 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1114 mm | 1142 mm | 1166 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm |
| Standover Height | 706 mm | 734 mm | 761 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

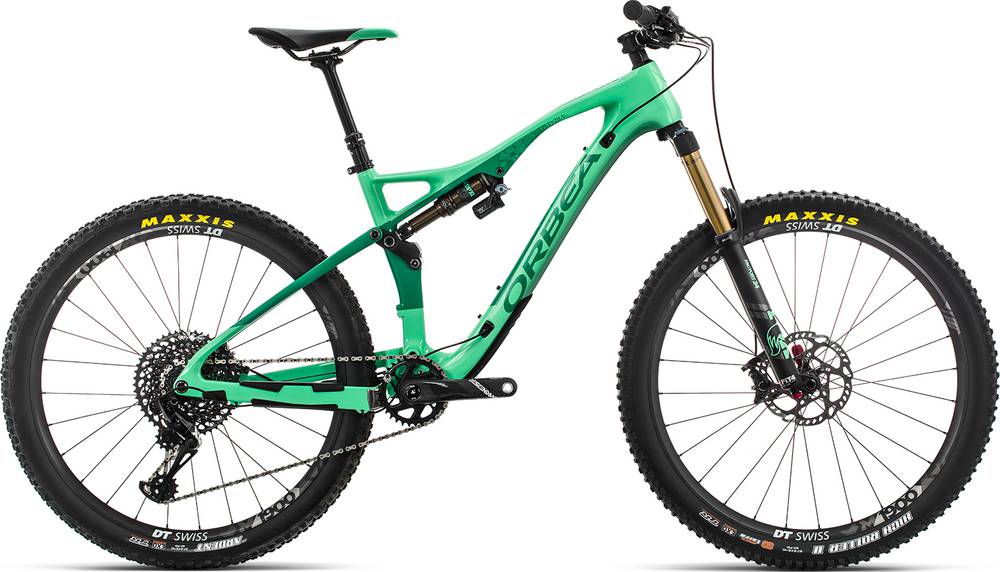

OCCAM AM M10 is an Orbea Occam model. There are 80 bikes that carry this model name. Take a sneak peek at all Orbea Occam bikes models from 2019, by clicking here.
Model range prices
Orbea OCCAM TR H50 2019 is the cheapest bike model and costs 2499$. Orbea OCCAM TR M-LTD 2019 is the most expensive one and costs 7999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2019 and its price was 5499$. Comparing the average cost of an Enduro bike to this one, you will see that OCCAM AM M10 price is 52.79% higher.
Overview of components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this bike has the Fox DPX2 Factory 3-Position Adjust Evol model, with a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on OCCAM AM M10 are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
