Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 150mm -
Fork Fox Performance Float 36
-
Groupset SLX, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 165cm
SM
150cm - 165cm
MD
160cm - 175cm
MD
160cm - 175cm
LG
170cm - 185cm
LG
170cm - 185cm
XL
180cm - 198cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Occam Hydro High Polished Triple Butted. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels. Linkage compatible with OC multitool
Suspension Fork
Fox 36 Float Performance 150 Grip 3-Position QR15x110
Rear Shock
Fox FLOAT X Performance 2-Position Evol LV custom tune 210x55mm
Drivetrain
Rear Derailleur
Shimano SLX M7100 SGS Shadow Plus
Shift Levers
Shimano SLX M7100 I-Spec EV
Cassette
Shimano CS-M7100 10-51t 12-Speed
Crank
Race Face Aeffect 32t
Chain
Shimano M6100
Wheels
Rims
Race Face AR 30c Tubeless Ready
Tires
Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR
Brakes
Brakes
Shimano M6100 Hydraulic Disc
Cockpit
Stem
OC1 3D Forged 35mm interface 7º
Handlebar
OC1 35mm 12mm Rise 780mm
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Fizik Taiga S-alloy rail
Seatpost
OC MC20 Mountain Control Dropper, 31,6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.42 mm | 1.36 mm | 1.36 mm | 1.32 mm | 1.32 mm | 1.29 mm | 1.29 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 727 mm | 727 mm | 756 mm | 756 mm | 786 mm | 786 mm | 821 mm | 821 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 119 mm | 130 mm | 119 mm | 130 mm | 119 mm | 131 mm | 119 mm | 130 mm |
| Stack | 602 mm | 602 mm | 611 mm | 611 mm | 625 mm | 625 mm | 644 mm | 644 mm |
| Reach | 423 mm | 423 mm | 448 mm | 448 mm | 472 mm | 472 mm | 498 mm | 498 mm |
| Top Tube Length | 563 mm | 563 mm | 590 mm | 590 mm | 617 mm | 617 mm | 647 mm | 647 mm |
| Seat Tube Angle | 77 ° | 76.5 ° | 77 ° | 76.5 ° | 77 ° | 76.5 ° | 77 ° | 76.5 ° |
| Seat Tube Length | 381 mm | 381 mm | 419 mm | 419 mm | 457 mm | 457 mm | 508 mm | 508 mm |
| Head Tube Angle | 66 ° | 65.5 ° | 66 ° | 65.5 ° | 66 ° | 65.5 ° | 66 ° | 65.5 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 105 mm | 120 mm | 120 mm | 140 mm | 140 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1163 mm | 1163 mm | 1192 mm | 1192 mm | 1222 mm | 1222 mm | 1257 mm | 1257 mm |
| Bottom Bracket Drop | 35 mm | 32 mm | 35 mm | 32 mm | 35 mm | 32 mm | 35 mm | 32 mm |
| Standover Height | 708 mm | 708 mm | 734 mm | 734 mm | 764 mm | 764 mm | 774 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 150 cm | 160 cm | 160 cm | 170 cm | 170 cm | 180 cm | 180 cm |
| Rider Max Height | 165 cm | 165 cm | 175 cm | 175 cm | 185 cm | 185 cm | 198 cm | 198 cm |

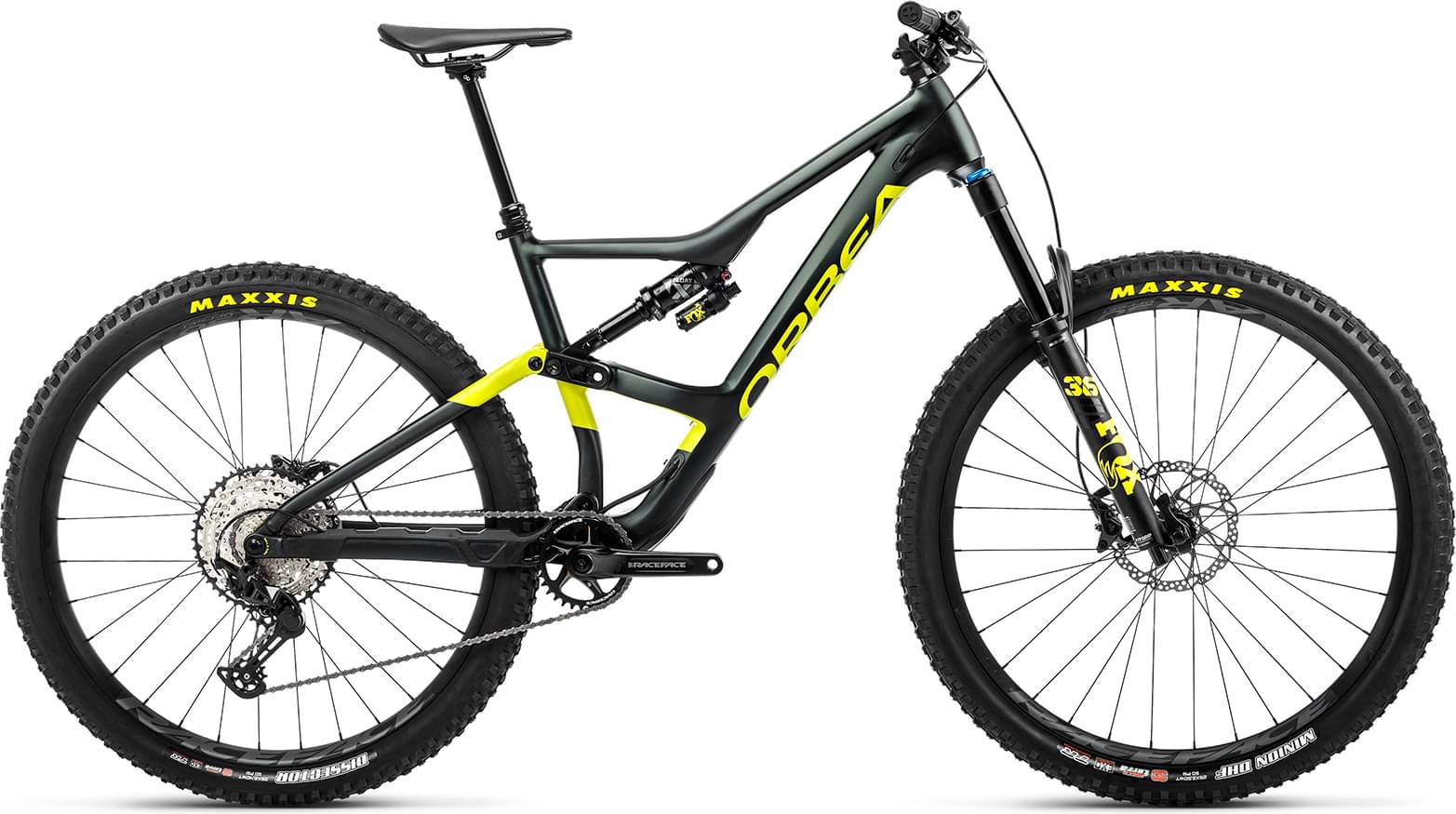

Model Overview
OCCAM H20 LT belongs to the Orbea Occam model. Orbea launched 80 bikes of this model so far. Take a sneak peek at all Orbea Occam bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Orbea OCCAM H30 2022 has a starting price of 2760$. Orbea OCCAM M-LTD 2022 on the other hand is the most expensive at 8918$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 3715$. Comparing this to the average Enduro bike price, we see that the price is 3.22% more expensive.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
OCCAM H20 LT components
Fork
Orbea OCCAM H20 LT 2022 bike is equipped with the Fox Performance Float 36 fork, and has 150mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on OCCAM H20 LT are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea OCCAM H20 LT has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
OCCAM H20 LT comes in 8 sizes, that range from 150 cm – 198 cm (4.92 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
