Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Factory Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 165cm
MD
160cm - 175cm
LG
170cm - 185cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Occam OMR 140mm travel 29" C-Boost 12x148
Suspension Fork
Fox 34 Float Factory 140 FIT4 3-Pos-Adj QR15x110 Kashima
Rear Shock
Fox DPX2 Factory 3-Position Adjust Evol Kashima custom tune 210x50mm
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano XT M8100 I-Spec EV
Cassette
Shimano CS-M7100 10-51t 12-Speed
Crank
Shimano XT M8100 32t
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano M6100
Chain Guide
Orbea OC chainguide
Wheels
Rims
DT Swiss XM-1650 Spline 30c TLR CL, Star Ratchet, Boost
Tires
Maxxis Rekon 2.40" FB 60 TPI Dual Exo TR
Brakes
Brakes
Shimano XT M8120 Hydraulic Disc
Cockpit
Stem
Race Face Aeffect R 35mm interface
Handlebar
Race Face Next R 35 20mm Rise 780mm
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Fizik Taiga S-alloy rail
Seatpost
OC2 Dropper 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.36 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 727 mm | 756 mm | 786 mm | 821 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 119 mm | 119 mm | 119 mm | 119 mm |
| Stack | 602 mm | 611 mm | 625 mm | 644 mm |
| Reach | 423 mm | 448 mm | 472 mm | 498 mm |
| Top Tube Length | 563 mm | 590 mm | 617 mm | 647 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 381 mm | 419 mm | 457 mm | 508 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1163 mm | 1192 mm | 1222 mm | 1257 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 708 mm | 734 mm | 764 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 198 cm |

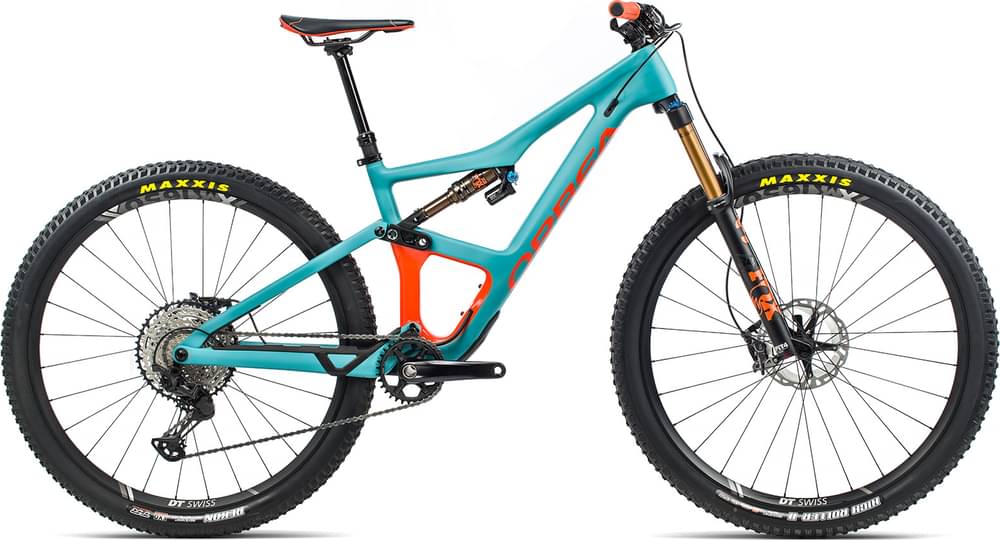

Model Overview
OCCAM M10 belongs to the Orbea Occam model. 80 bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Orbea OCCAM H30 2021 is the most economical model, with a starting price of 2799$. Orbea OCCAM M-LTD 2021 on the other hand costs 8499$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2021 for 5699$. In conclusion, this bike price is 106.34% higher than the price of the average Trail bike.
OCCAM M10 components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The OCCAM M10 has a rear shock with a travel of 140mm. The model Fox DPX2 Factory 3-Position Adjust Evol is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Orbea OCCAM M10 2021, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea OCCAM M10 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Orbea OCCAM M10 bike has 4 sizes, in the range of 150 cm – 198 cm (4.92 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the OCCAM M10. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
