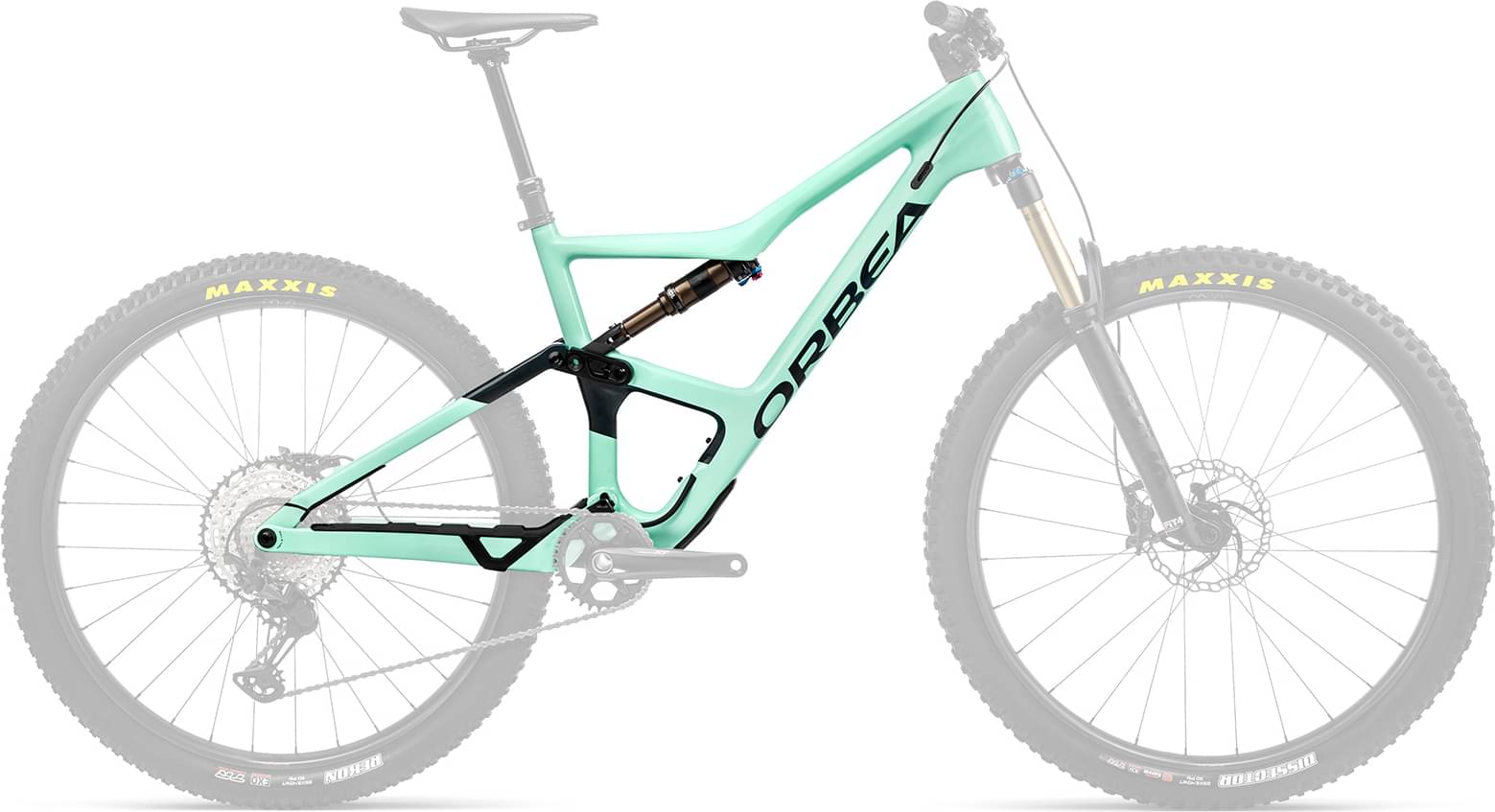

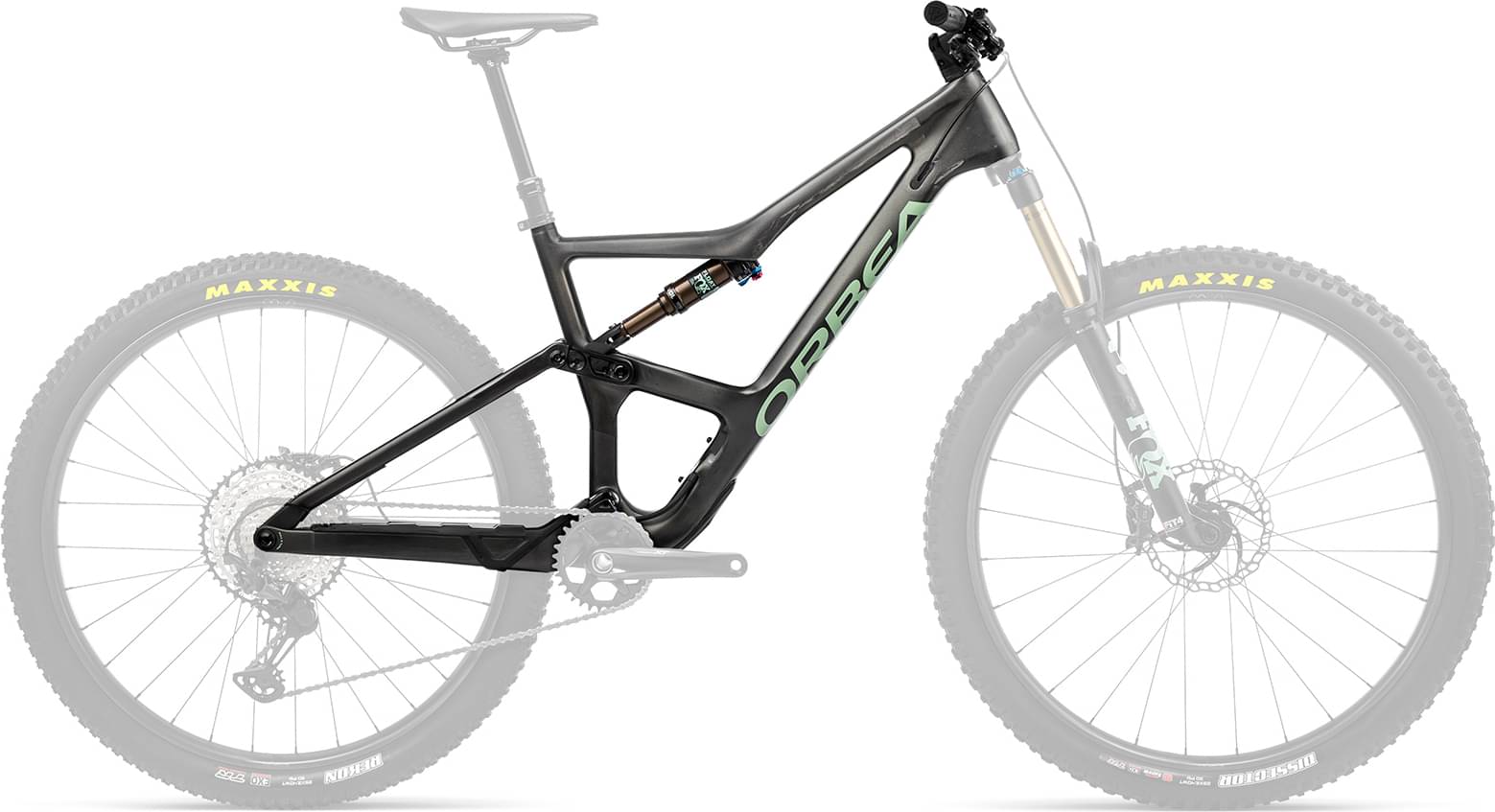

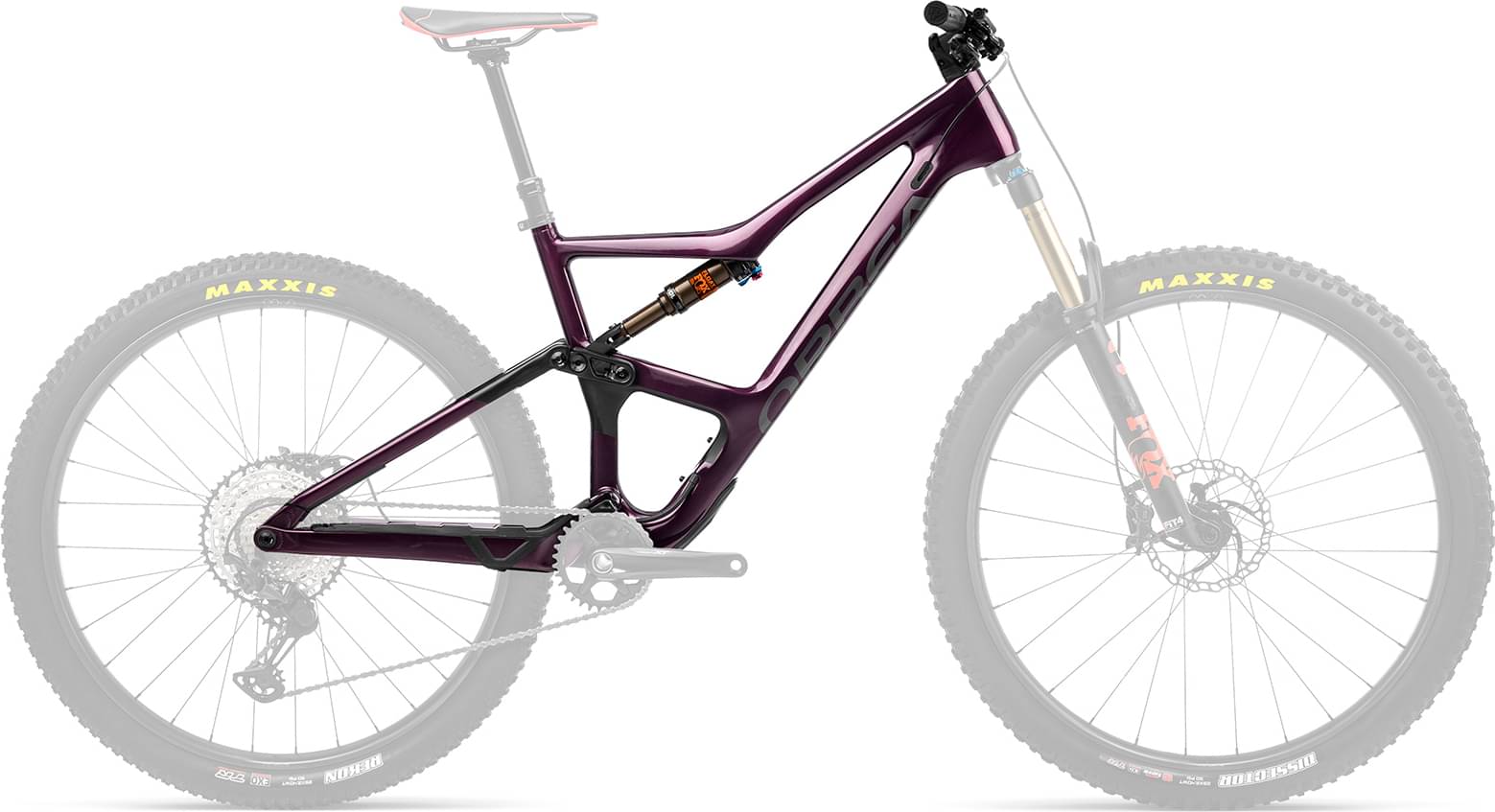

Orbea OCCAM OMR+FOX DPS 3POS FK 2023
2023 Mountain
Estimate price |
3,999$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Suspension Full
Sizing
Recommended size guide.
SM
150cm - 165cm
SM
150cm - 165cm
MD
160cm - 175cm
MD
160cm - 175cm
LG
170cm - 185cm
LG
170cm - 185cm
XL
180cm - 198cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels
Rear Shock
Fox Float DPS Factory 3-Position Evol Kashima custom tune 210x50mm
Drivetrain
Chain Guide
Orbea OC chainguide
Cockpit
Stem
OC Mountain Control MC10 Alu SL, 0º
Handlebar
OC Mountain Control MC10 Carbon, Rise 20, Width 800
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.42 mm | 1.36 mm | 1.36 mm | 1.32 mm | 1.32 mm | 1.29 mm | 1.29 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 727 mm | 727 mm | 756 mm | 756 mm | 786 mm | 786 mm | 821 mm | 821 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 119 mm | 130 mm | 119 mm | 130 mm | 119 mm | 131 mm | 119 mm | 130 mm |
| Stack | 602 mm | 602 mm | 611 mm | 611 mm | 625 mm | 625 mm | 644 mm | 644 mm |
| Reach | 423 mm | 423 mm | 448 mm | 448 mm | 472 mm | 472 mm | 498 mm | 498 mm |
| Top Tube Length | 563 mm | 563 mm | 590 mm | 590 mm | 617 mm | 617 mm | 647 mm | 647 mm |
| Seat Tube Angle | 77 ° | 76.5 ° | 77 ° | 76.5 ° | 77 ° | 76.5 ° | 77 ° | 76.5 ° |
| Seat Tube Length | 381 mm | 381 mm | 419 mm | 419 mm | 457 mm | 457 mm | 508 mm | 508 mm |
| Head Tube Angle | 66 ° | 65.5 ° | 66 ° | 65.5 ° | 66 ° | 65.5 ° | 66 ° | 65.5 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 105 mm | 120 mm | 120 mm | 140 mm | 140 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1163 mm | 1163 mm | 1192 mm | 1192 mm | 1222 mm | 1222 mm | 1257 mm | 1257 mm |
| Bottom Bracket Drop | 35 mm | 32 mm | 35 mm | 32 mm | 35 mm | 32 mm | 35 mm | 32 mm |
| Standover Height | 708 mm | 708 mm | 734 mm | 734 mm | 764 mm | 764 mm | 774 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 150 cm | 160 cm | 160 cm | 170 cm | 170 cm | 180 cm | 180 cm |
| Rider Max Height | 165 cm | 165 cm | 175 cm | 175 cm | 185 cm | 185 cm | 198 cm | 198 cm |
About this model
OCCAM OMR+FOX DPS 3POS FK is an Orbea Occam model. 80 frames variations carry this model name so far. Take a sneak peek at all Orbea Occam frames models from 2023, by clicking here.
Model range prices
Orbea OCCAM OMR+FOX DPS 3POS FK 2023 is the cheapest frame model and costs 3999$. Orbea OCCAM OMR LT+FOX X 2POS F 2023 is the most expensive one and costs 4299$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail frames
According to our math, the average price for a trustworthy Trail frame is 1736$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3999$. Comparing this to the average Trail frame price, we see that the price is 130.36% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Sizes
This frame is available in 8 sizes. They vary from 150 cm – 198 cm (4.92 ft – 6.5 ft). In short, you can easily find one that suits you.
