Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Performance Float 34
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Occam TR 2018 OMR 120mm travel UFO 29/27.5+ Boost 12x148 PF
Suspension Fork
Fox 34 Float Performance 130 3-Position QR15x110
Rear Shock
Fox Float DPS Performance 3-Position Evol custom tune 184x44mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle Gold
Shift Levers
SRAM GX Eagle
Cassette
SRAM GX XG-1275 Eagle 10-50t 12-Speed
Crank
SRAM Descendant CNC Eagle Dub Boost 32t
Chain
SRAM GX Eagle 12-Speed
Pedals
N/A
Wheels
Rims
DT Swiss M-1900 Spline 35c TLR 15/110mm CL
Tires
Maxxis Rekon 2.8" FB 60 TPI Exo TR
Brakes
Brakes
Shimano XT M8000 Hydraulic Disc
Cockpit
Stem
Race Face Aeffect R 35mm interface
Handlebar
Race Face Aeffect 35 10mm Rise 760mm
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Selle Italia XR Trail
Seatpost
Race Face Aeffect Dropper 31.6x385/125mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.37 mm | 1.34 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 689 mm | 717 mm | 740 mm | 768 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 106 mm | 107 mm | 106 mm | 106 mm |
| Stack | 589 mm | 599 mm | 608 mm | 622 mm |
| Reach | 399 mm | 424 mm | 443 mm | 465 mm |
| Top Tube Length | 565 mm | 592 mm | 614 mm | 640 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 393 mm | 432 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 140 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1115 mm | 1143 mm | 1166 mm | 1194 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 718 mm | 736 mm | 762 mm | 775 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

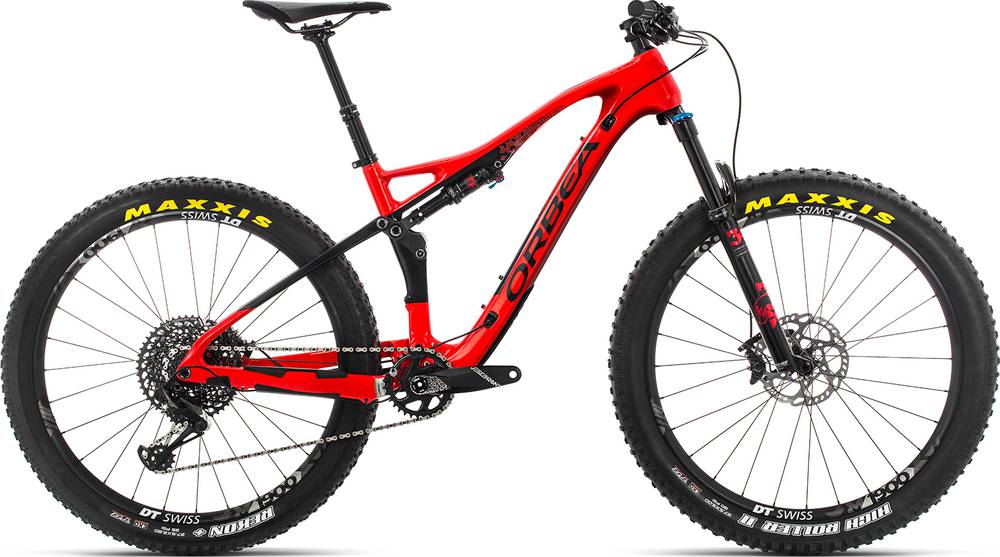

Model Overview
OCCAM TR M20PLUS completes the Orbea Occam model. 80 bikes variations carry this model name so far. Take a sneak peek at all Orbea Occam bikes models from 2019, by clicking here.
Model range prices
Orbea OCCAM TR H50 2019 is the most economical model, with a starting price of 2499$. Orbea OCCAM TR M-LTD 2019 on the other hand costs 7999$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 4999$. If we compare this with the average Trail bike cost we notice that the price is 80.99% higher.
Overview of components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The OCCAM TR M20PLUS has a rear shock with a travel of 120mm. The model Fox Float DPS Performance 3-Position Evol custom tune 184x44mm is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on OCCAM TR M20PLUS are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea OCCAM TR M20PLUS is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
OCCAM TR M20PLUS comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
