Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle AXS -
Suspension Full -
Battery SRAM Powerpack -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM-XC
155cm - 170cm
SM-TR
155cm - 170cm
MD-XC
165cm - 180cm
MD-TR
165cm - 180cm
LG-XC
178cm - 190cm
LG-TR
178cm - 190cm
XL-XC
185cm - 198cm
XL-TR
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Oiz Carbon OMX, Fiberlink, Boost, PF BB, UFO2, I-line shock
Suspension Fork
Fox 34 Float SC Factory 100 FIT4 Remote-Adj Push-Unlock QR15x110 Kashima
Rear Shock
Fox i-line DPS Factory 100mm Remote Push-Unlock Evol Kashima custom tune190x40mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS
Shift Levers
SRAM XX1 Eagle AXS
Cassette
SRAM XX1 XG-1299 Eagle 10-50t 12-Speed Rainbow
Crank
SRAM XX1 Eagle Dub Grey Boost 34t
Chain
SRAM XX1 Eagle 12-Speed rainbow
Chain Guide
Orbea OC chainguide
Wheels
Rims
DT Swiss XRC-1200 Spline 30c TLR 15/110mm CL
Tires
Maxxis Rekon Race 2.35" 120 TPI Exo TLR
Brakes
Brakes
SRAM Ultimate Carbon Stealth-a-majig Black Hydraulic Disc
Cockpit
Stem
OC MP20 Mountain Performance, -8º
Handlebar
OC MP10 Mountain Performance Carbon, Width 760, Sweep 9
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Selle Italia SLR Boost Fill Carbon Keramic Rail Ø7 x 9 mm
Seatpost
OC XP10 Performance Carbon SB0, 31,6mm, w/Micro tilt adjustment
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM-XC | SM-TR | MD-XC | MD-TR | LG-XC | LG-TR | XL-XC | XL-TR |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.49 mm | 1.35 mm | 1.4 mm | 1.31 mm | 1.36 mm | 1.29 mm | 1.33 mm |
| Bottom Bracket Height | 327 mm | 334 mm | 327 mm | 334 mm | 327 mm | 334 mm | 327 mm | 334 mm |
| Front Center | 663 mm | 669 mm | 693 mm | 699 mm | 717 mm | 723 mm | 742 mm | 749 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 96 mm | 104 mm | 96 mm | 104 mm | 97 mm | 105 mm | 97 mm | 105 mm |
| Stack | 591 mm | 598 mm | 596 mm | 603 mm | 605 mm | 613 mm | 619 mm | 627 mm |
| Reach | 412 mm | 402 mm | 440 mm | 430 mm | 461 mm | 451 mm | 481 mm | 471 mm |
| Top Tube Length | 569 mm | 572 mm | 598 mm | 601 mm | 622 mm | 624 mm | 646 mm | 648 mm |
| Seat Tube Angle | 75 ° | 74 ° | 75 ° | 74 ° | 75 ° | 74 ° | 75 ° | 74 ° |
| Seat Tube Length | 405 mm | 405 mm | 432 mm | 432 mm | 470 mm | 470 mm | 520 mm | 520 mm |
| Head Tube Angle | 69 ° | 68 ° | 69 ° | 68 ° | 69 ° | 68 ° | 69 ° | 68 ° |
| Head Tube Length | 90 mm | 90 mm | 95 mm | 95 mm | 105 mm | 105 mm | 120 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1094 mm | 1101 mm | 1124 mm | 1131 mm | 1148 mm | 1155 mm | 1173 mm | 1181 mm |
| Bottom Bracket Drop | 47 mm | 40 mm | 47 mm | 40 mm | 47 mm | 40 mm | 47 mm | 40 mm |
| Standover Height | 722 mm | 729 mm | 737 mm | 744 mm | 747 mm | 754 mm | 754 mm | 761 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 155 cm | 165 cm | 165 cm | 178 cm | 178 cm | 185 cm | 185 cm |
| Rider Max Height | 170 cm | 170 cm | 180 cm | 180 cm | 190 cm | 190 cm | 198 cm | 198 cm |

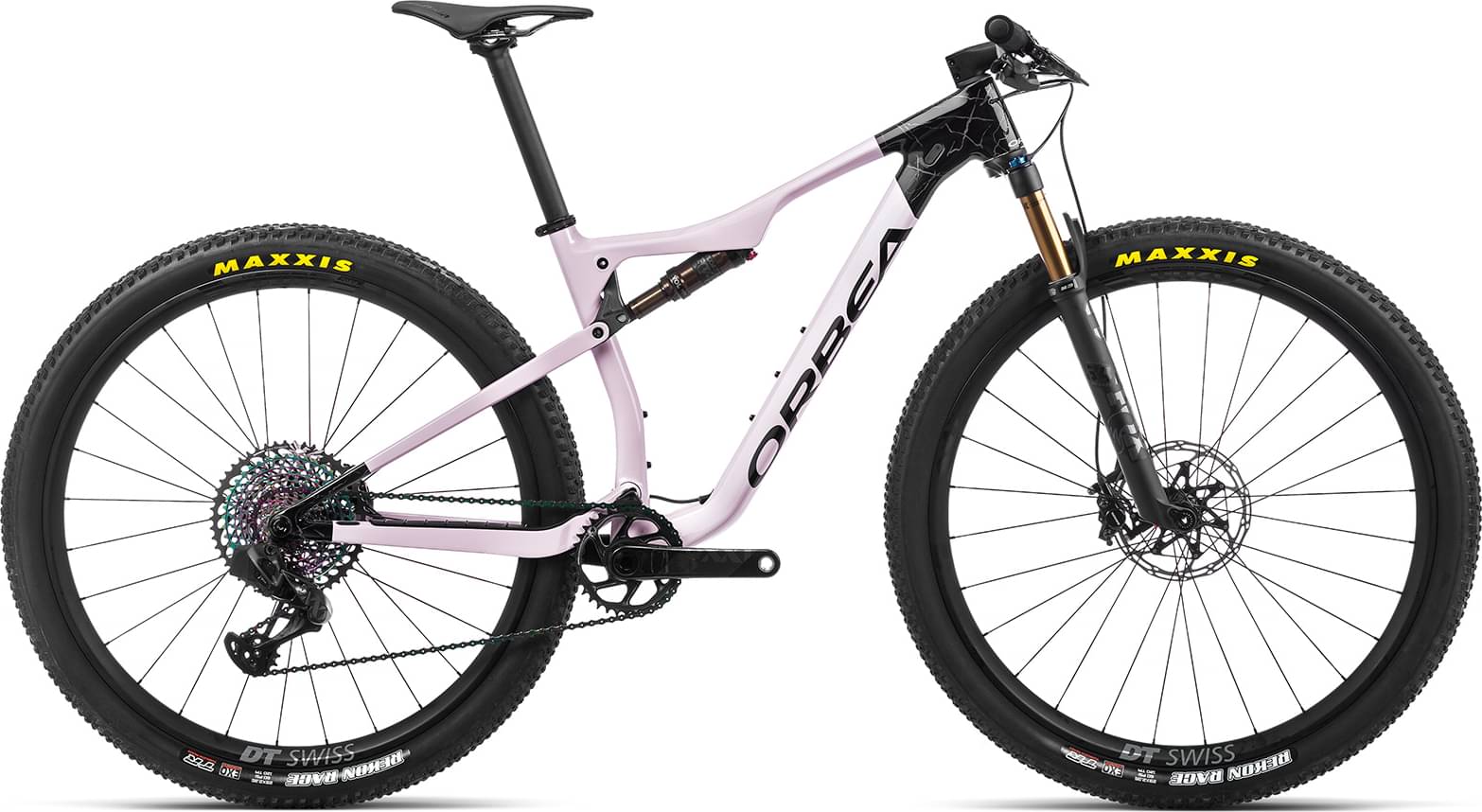

About this model
OIZ M LTD is an Orbea Oiz model. 78 bikes variations carry this model name so far. You can easily view all of the Orbea Oiz bikes models from 2022, here.
Model range prices
Orbea OIZ H30 2022 is the cheapest bike model and costs 2760$. Orbea OIZ M LTD 2022 is the most expensive one and costs 10192$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Orbea released this model in 2022, its price was 10192$. Comparing the average cost of a Crosscountry bike to this one, you will see that OIZ M LTD price is 435.01% higher.
Overview of components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the Fox i-line DPS Factory 100mm Remote model, with a travel of 100mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the OIZ M LTD model has 29″ carbon wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The OIZ M LTD comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 155 cm – 198 cm (5.09 ft – 6.5 ft). In short, you can easily find one that suits you.
