Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Oiz Carbon OMR 2019 Boost PF Taper UFO2 I-Line
Suspension Fork
Fox 32 Float SC Factory 100 FIT4 Remote-Adj Push-Unlock QR15x110 Kashima
Rear Shock
Fox i-line DPS Factory Remote Push-Unlock Evol custom tune190x40mm
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS Shadow Plus
Shift Levers
Shimano XTR M9100
Cassette
Shimano XTR M9100 10-51t 12-Speed
Crank
Shimano XTR M9100 34t
Chain
Shimano CN-9100
Pedals
N/A
Wheels
Rims
DT XRC-1200 Spline TLR F-15/110mm R-12/148mm CL (Center Lock) ASL12 (Shimano Microspline 12s)
Tires
Maxxis Ardent 2.2" TLR Exo Dual
Brakes
Brakes
Shimano XTR M9100 Hydraulic Disc
Cockpit
Stem
FSA K-Force
Handlebar
FSA K-Force Flat 760mm Di2 compatible
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Selle Italia X-LR Ti Flow
Seatpost
FSA K-Force Light SB0 31.6x400mm Di2 compatible
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | LG | XL | - | SM | SM | MD | LG | XL |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.371 mm | 1.44 mm | 1.359 mm | 1.316 mm | 1.29 mm | mm | 1.423 mm | 1.532 mm | 1.407 mm | 1.363 mm | 1.335 mm |
| Bottom Bracket Height | 328 mm | 327 mm | 327 mm | 327 mm | 327 mm | mm | 336 mm | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 658 mm | 663 mm | 692 mm | 717 mm | 742 mm | mm | 664 mm | 669 mm | 699 mm | 723 mm | 749 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 89 mm | 89 mm | 89 mm | 89 mm | 89 mm | mm | 97 mm | 86 mm | 96 mm | 97 mm | 97 mm |
| Stack | 558 mm | 586 mm | 591 mm | 600 mm | 614 mm | mm | 565 mm | 593 mm | 598 mm | 608 mm | 622 mm |
| Reach | 407 mm | 407 mm | 435 mm | 456 mm | 476 mm | mm | 397 mm | 387 mm | 425 mm | 446 mm | 466 mm |
| Top Tube Length | 557 mm | 564 mm | 593 mm | 617 mm | 641 mm | mm | 559 mm | 567 mm | 596 mm | 619 mm | 643 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° | ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 405 mm | 405 mm | 432 mm | 470 mm | 520 mm | mm | 405 mm | 405 mm | 432 mm | 470 mm | 520 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | ° | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 90 mm | 95 mm | 105 mm | 120 mm | mm | 95 mm | 90 mm | 95 mm | 105 mm | 120 mm |
| Chainstay Length | 425 mm | 435 mm | 435 mm | 435 mm | 435 mm | mm | 425 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1081 mm | 1094 mm | 1123 mm | 1148 mm | 1173 mm | mm | 1088 mm | 1101 mm | 1131 mm | 1155 mm | 1181 mm |
| Bottom Bracket Drop | 29 mm | 47 mm | 47 mm | 47 mm | 47 mm | mm | 21 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 715 mm | 717 mm | 732 mm | 742 mm | 749 mm | mm | 722 mm | 724 mm | 739 mm | 749 mm | 756 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |

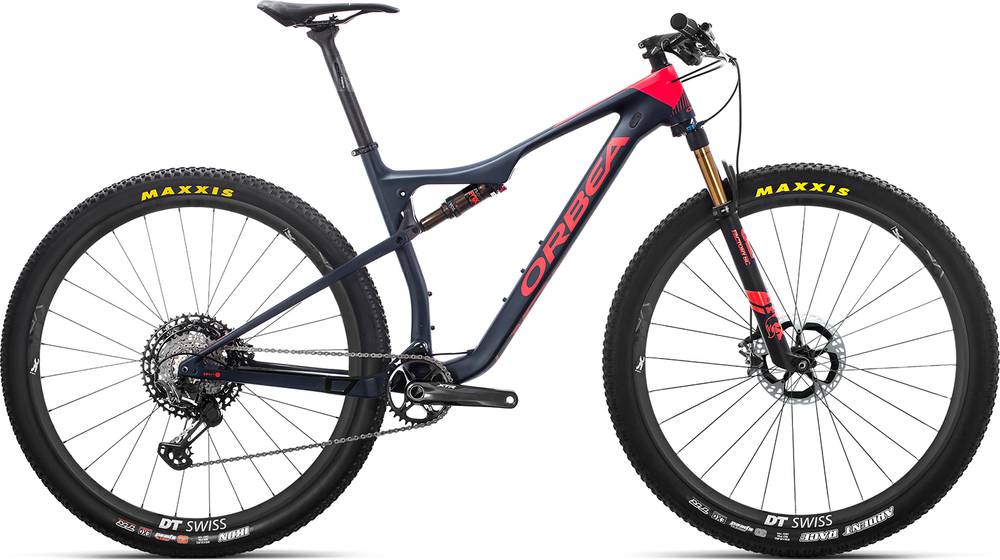

Model Overview
OIZ M-TEAM belongs to the Orbea Oiz model. Orbea launched 78 bikes of this model so far. You can easily view all of the Orbea Oiz bikes models from 2019, here.
Model range prices
Orbea OIZ M50 2019 is the cheapest bike model and costs 3499$. Orbea OIZ M-LTD 2019 is the most expensive one and costs 8299$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2019 and its price was 7999$. If we compare this with the average Crosscountry bike cost we notice that the price is 319.9% more expensive.
Overview of components
Fork
The Fox Factory Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the OIZ M-TEAM bike is equipped with the 27.5″ carbon model. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea OIZ M-TEAM has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
