Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 32
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Oiz Carbon OMR FiberLink Boost PF Taper UFO2 I-Line
Suspension Fork
Fox 32 Float SC Factory 100 FIT4 Remote-Adj Push-Unlock QR15x110 Kashima
Rear Shock
Fox i-line DPS Factory 100mm Remote Push-Unlock Evol Kashima custom tune190x40mm
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS Shadow Plus
Shift Levers
Shimano XT M8100 I-Spec EV
Cassette
Shimano XT M8100 10-51t 12-Speed
Crank
Shimano XT M8120 34t
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano M8100
Pedals
N/A
Wheels
Rims
DT Swiss XR-1650 Spline 25c TLR CL, Star Ratchet, Boost
Tires
Maxxis Ardent 2.2" FB Dual Exo TR
Brakes
Brakes
Shimano XT M8100 Hydraulic Disc
Cockpit
Stem
FSA SL-K
Handlebar
FSA SL-K Flat 740mm
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Selle Italia X-LR Ti Flow
Seatpost
FSA SL-K SB0 31.6x400mm Di2 compatible
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM |
|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.42 mm |
| Bottom Bracket Height | 328 mm | 336 mm |
| Front Center | 658 mm | 664 mm |
| Rake | 44 mm | 44 mm |
| Trail | 89 mm | 97 mm |
| Stack | 563 mm | 570 mm |
| Reach | 412 mm | 402 mm |
| Top Tube Length | 562 mm | 564 mm |
| Seat Tube Angle | 75 ° | 74 ° |
| Seat Tube Length | 405 mm | 405 mm |
| Head Tube Angle | 69 ° | 68 ° |
| Head Tube Length | 95 mm | 95 mm |
| Chainstay Length | 430 mm | 430 mm |
| Wheelbase | 1086 mm | 1093 mm |
| Bottom Bracket Drop | 29 mm | 21 mm |
| Standover Height | 720 mm | 727 mm |
| Wheels | 27" | 27" |

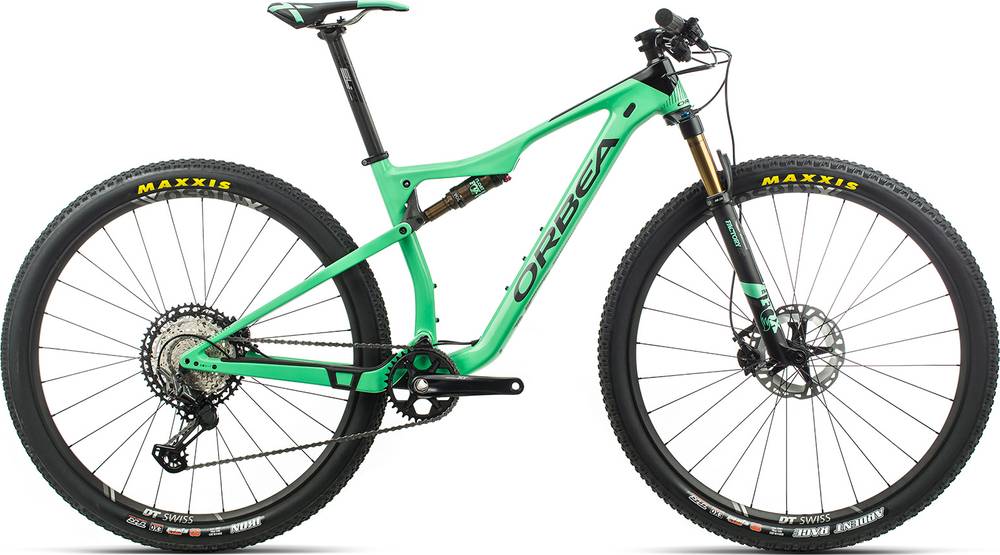

Model Overview
OIZ M10 27.5 is an Orbea Oiz model. Orbea released 78 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Orbea OIZ H30 2020 has a starting price of 2599$. Orbea OIZ M-LTD 27.5 2020 on the other hand is the most expensive at 8299$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4999$. If we compare this with the average Crosscountry bike cost we notice that the price is 162.41% more expensive.
Overview of components
Fork
The OIZ M10 27.5 comes factory-installed with the Fox Factory Float 32 fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The OIZ M10 27.5 has a rear shock with a travel of 100mm. The model Fox i-line DPS Factory 100mm Remote is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the OIZ M10 27.5 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The OIZ M10 27.5 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
