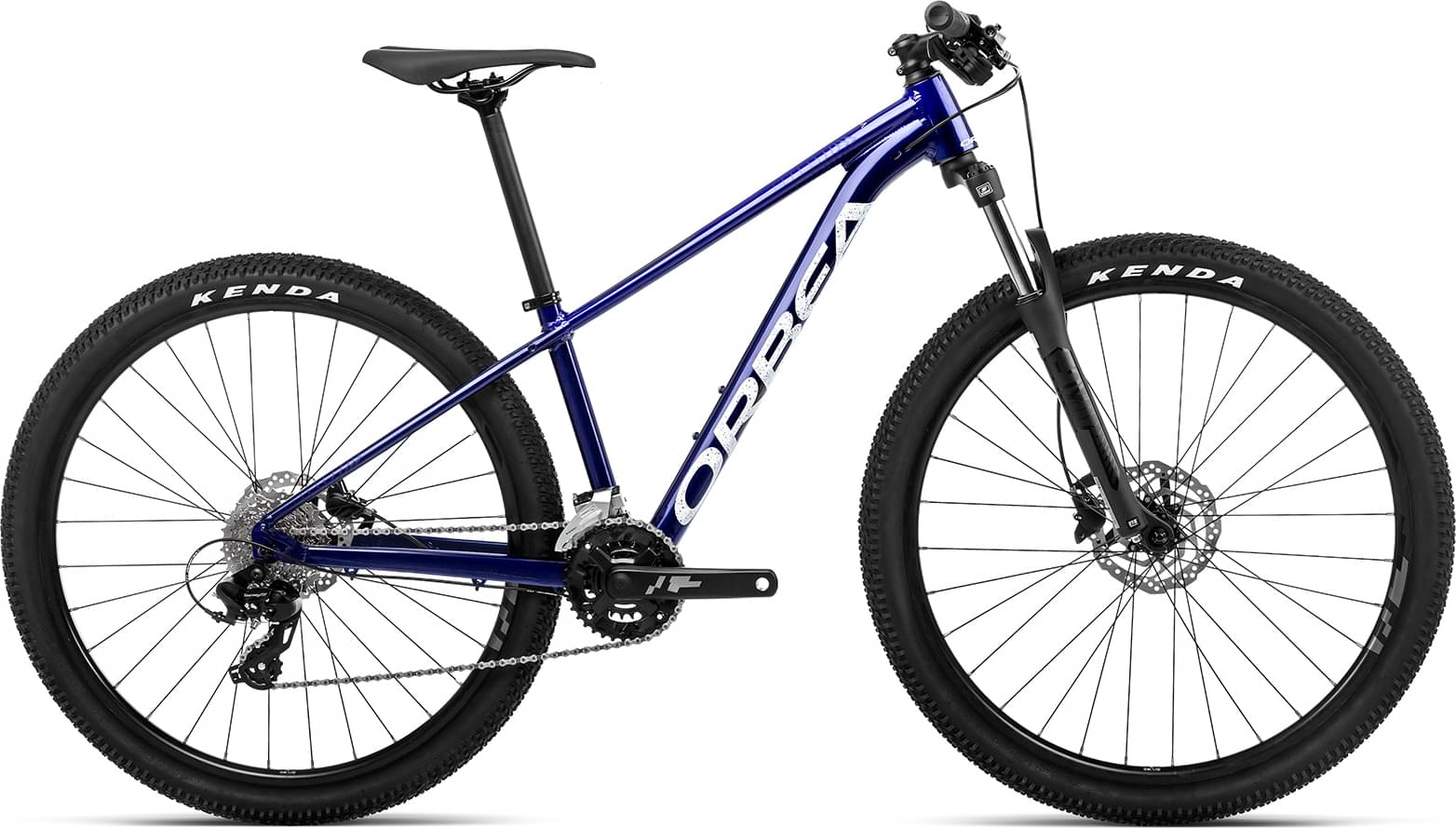

Orbea ONNA 27 XS JUNIOR 50 2022
2022 Mountain
Estimate price |
721$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 27.5" -
Fork Suntour -
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
145cm - 160cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Onna Alloy, Dropout 9x135, BSA BB, Internal cable routing
Suspension Fork
SR Suntour XCE 28 Coil 100mm QR
Drivetrain
Rear Derailleur
Shimano Tourney TX800
Front Derailleur
Shimano M315 31.8mm
Shift Levers
Microshift TS38
Cassette
Sun Race CSM66 11-34t 8-Speed
Crank
Alloy forged 22x36t 7/8S
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X8
Pedals
VP-537 Black
Wheels
Rims
Mach1 ER20 19c
Tires
Kenda K1153 2.35" 22TPI
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Stem
Alloy 31.8mm interface 7º
Handlebar
Alloy Flat 31.8mm 720mm
Headset
1"-1/8 Semi-Integrated
Seat
Saddle
Essax Adv soft135mm for Orbea
Seatpost
Alloy 27.2 Offset 0
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS |
|---|---|
| Stack Reach Ratio | 1.59 mm |
| Bottom Bracket Height | 312 mm |
| Front Center | 623 mm |
| Rake | 42 mm |
| Trail | 95 mm |
| Stack | 583 mm |
| Reach | 366 mm |
| Top Tube Length | 527 mm |
| Seat Tube Angle | 74.5 ° |
| Seat Tube Length | 350 mm |
| Head Tube Angle | 68.5 ° |
| Head Tube Length | 95 mm |
| Chainstay Length | 431 mm |
| Wheelbase | 1050 mm |
| Bottom Bracket Drop | 45 mm |
| Standover Height | 669 mm |
| Wheels | 27" |
| Rider Min Height | 145 cm |
| Rider Max Height | 160 cm |
Model Overview
ONNA 27 XS JUNIOR 50 is an Orbea Onna model. Orbea launched 25 bikes of this model so far. You can easily view all of the Orbea Onna bikes models from 2022, here.
Model range prices
Orbea ONNA 27 XS JUNIOR 50 2022 is the most economical model, with a starting price of 668$. Orbea ONNA 10 2022 on the other hand costs 1337$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Orbea released this model in 2022, its price was 668$. In conclusion, this bike price is 185.18% smaller than the price of the average Crosscountry bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
ONNA 27 XS JUNIOR 50 components
Fork
This bike has the Suntour fork installed. The fork’s travel is mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the ONNA 27 XS JUNIOR 50 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea ONNA 27 XS JUNIOR 50 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Orbea ONNA 27 XS JUNIOR 50 2022 is available in one size only. In short, make sure you double-check if it fits you.
