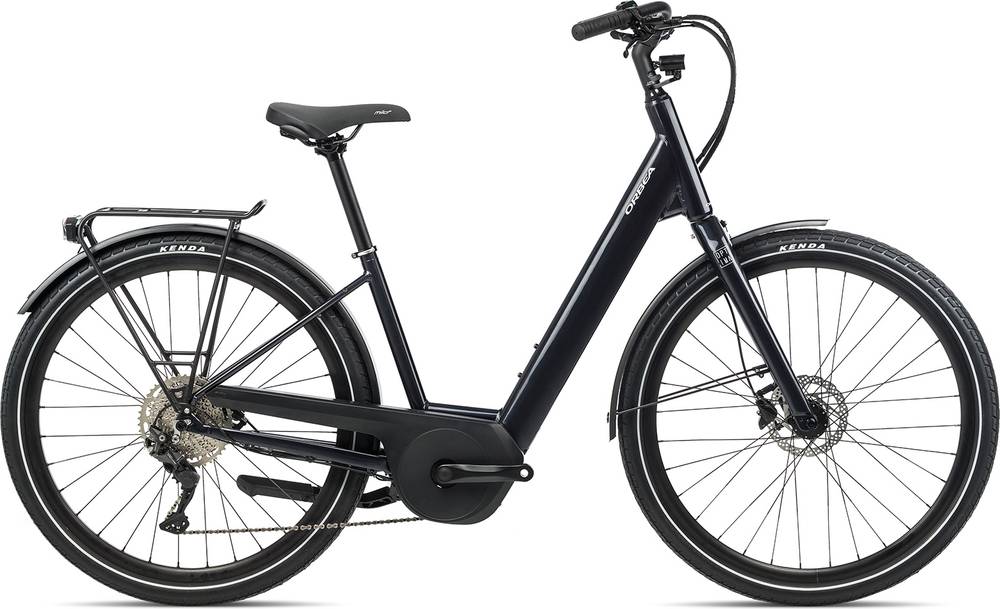

Orbea OPTIMA E40 20mph 2020
2020 E-bike
Estimate price |
2,799$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Deore -
Suspension Rigid -
Motor hub-drive -
Battery Ebikemotion 36V/6.9A 248Wh ANT+ -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 166cm
MD
164cm - 181cm
LG
179cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Optima Hydroformed Alloy, Ebikemotion X35 internal battery
Suspension Fork
Optima 400mm Alloy Post mount
Drivetrain
Rear Derailleur
Shimano Deore M5120 SGS Shadow Plus
Shift Levers
Shimano Deore M4100
Cassette
Shimano Deore M4100 11-46t 10-Speed
Crank
Prowheel PRA105 42t
Chain
KMC X10
Wheels
Rims
READY GR 29-700 C
Tires
Kenda 1172 700x50c
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Stem
Orbea TDS-D617
Handlebar
Orbea City Riser Alu 640mm
Headset
VP-Z104PD 1-1/8" Semi-Cartridge
Seat
Saddle
Selle Royal Milo Plus DR
Seatpost
Alloy 31.6x400mm Offset 0
Motor & Battery
Motor
Ebikemotion X35 Plus 20mph
Battery
Ebikemotion 36V/6.9A 248Wh ANT+
Remote
OC monochrome ANT+ LEV
Charger
Ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.74 mm | 1.67 mm |
| Bottom Bracket Height | 272.5 mm | 272.5 mm | 272.5 mm |
| Front Center | 669 mm | 692 mm | 738 mm |
| Rake | 55 mm | 55 mm | 55 mm |
| Trail | 68 mm | 70 mm | 68 mm |
| Stack | 667 mm | 714 mm | 742 mm |
| Reach | 402 mm | 410 mm | 445 mm |
| Top Tube Length | 630 mm | 653 mm | 698 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 405 mm | 450 mm | 500 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 190 mm | 240 mm | 270 mm |
| Chainstay Length | 515 mm | 515 mm | 515 mm |
| Wheelbase | 1168 mm | 1192 mm | 1238 mm |
| Bottom Bracket Drop | 95 mm | 95 mm | 95 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 164 cm | 179 cm |
| Rider Max Height | 166 cm | 181 cm | 200 cm |
About this model
OPTIMA E40 20mph is part of the Orbea E Optima model. 17 e-bikes variations carry this model name so far. Take a sneak peek at all Orbea E Optima e-bikes models from 2020, by clicking here.
Model range prices
Orbea OPTIMA E50 20mph 2020 is the most affordable e-bike of this model and has a price of 2499$. On the other hand, Orbea OPTIMA E40 20mph 2020, is the most expensive and costs 2799$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for General Urban e-bikes
According to our math, the average price for a trustworthy General Urban e-bike is 2098$. However, you could also get a good General Urban e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2020 for 2799$. If we compare this with the average General Urban e-bike cost we notice that the price is 33.41% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
OPTIMA E40 20mph components
Fork material
OPTIMA E40 20mph has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The wheels on OPTIMA E40 20mph are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The OPTIMA E40 20mph comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 150 cm – 200 cm (4.92 ft – 6.56 ft). In short, you can easily find one that suits you.
