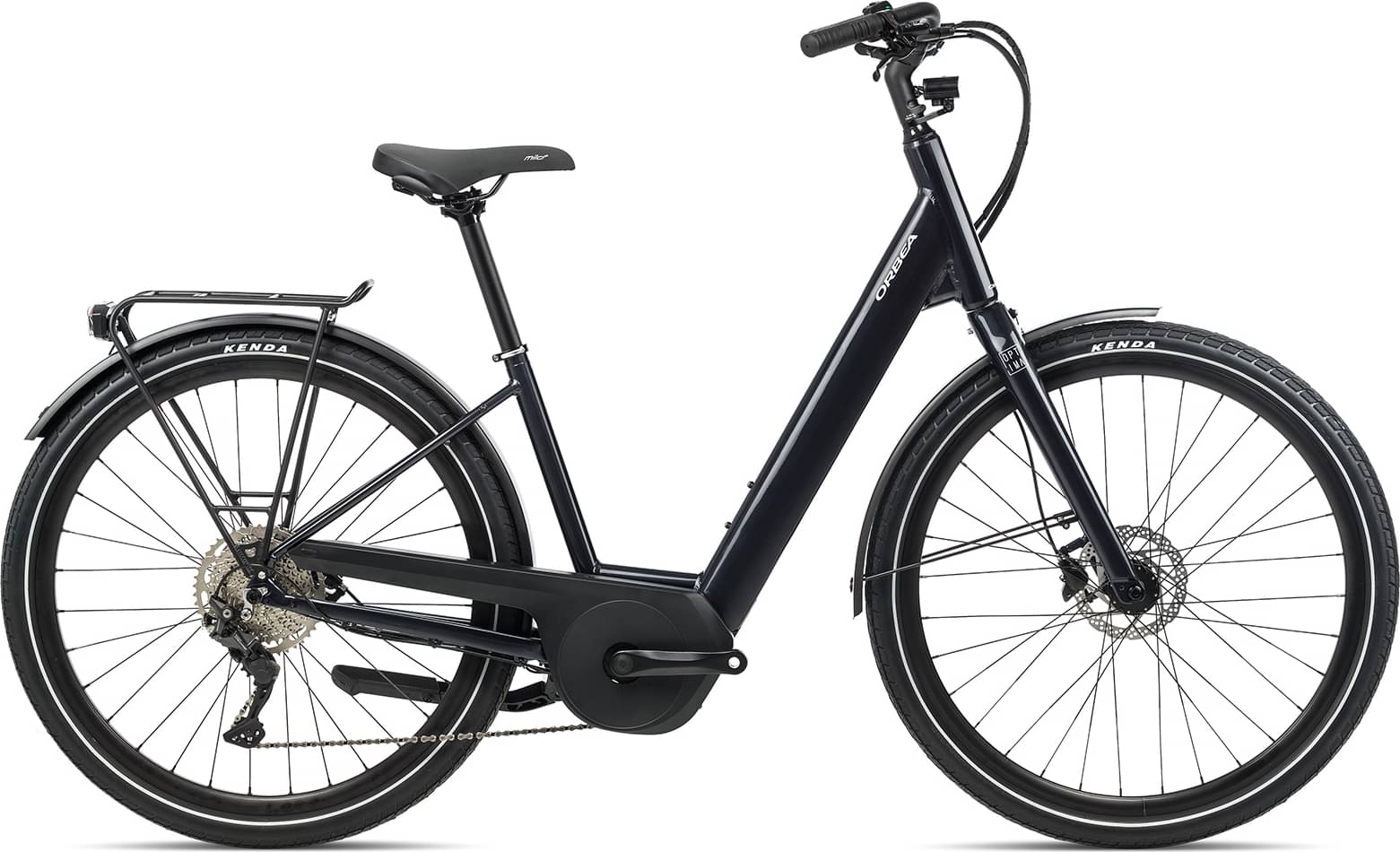

Orbea OPTIMA E40 20mph 2022
2022 E-bike
Estimate price |
3,199$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Deore -
Suspension Rigid -
Motor MAHLE hub-drive -
Battery Mahle 36V/6.9A 248Wh ANT+ -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 166cm
MD
164cm - 181cm
LG
179cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Optima Hydroformed Alloy, Ebikemotion X35 internal battery
Suspension Fork
Optima 400mm Alloy Post mount
Drivetrain
Rear Derailleur
Shimano Deore M5120 SGS Shadow Plus
Shift Levers
Shimano Deore M4100
Cassette
Shimano CS-M4100 11-46t 10-Speed
Crank
Orbea Alloy 42t
Chain
KMC X10
Chain Guide
Sunon A017
Pedals
VP-857 Black
Wheels
Rims
Ready GR 29-700 C
Tires
Kenda 1172 700x50c
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Stem
Orbea TDS-D617
Handlebar
Orbea City Riser Alu 640mm
Headset
VP-Z104PD 1-1/8" Semi-Cartridge
Seat
Saddle
Selle Royal Milo Plus DR
Seatpost
Alloy 31.6x400mm Offset 0
Motor & Battery
Motor
Mahle motor hub X35 Plus 20mph
Battery
Mahle 36V/6.9A 248Wh ANT+
Remote
OC monochrome ANT+ LEV
Charger
Mahle X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.74 mm | 1.67 mm |
| Bottom Bracket Height | 272.5 mm | 272.5 mm | 272.5 mm |
| Front Center | 669 mm | 692 mm | 738 mm |
| Rake | 55 mm | 55 mm | 55 mm |
| Trail | 68 mm | 70 mm | 68 mm |
| Stack | 667 mm | 714 mm | 742 mm |
| Reach | 402 mm | 410 mm | 445 mm |
| Top Tube Length | 630 mm | 653 mm | 698 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 405 mm | 450 mm | 500 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 190 mm | 240 mm | 270 mm |
| Chainstay Length | 515 mm | 515 mm | 515 mm |
| Wheelbase | 1168 mm | 1192 mm | 1238 mm |
| Bottom Bracket Drop | 95 mm | 95 mm | 95 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 164 cm | 179 cm |
| Rider Max Height | 166 cm | 181 cm | 200 cm |
Model Overview
OPTIMA E40 20mph belongs to the Orbea E Optima model. There are 17 e-bikes that carry this model name. Take a sneak peek at all Orbea E Optima e-bikes models from 2022, by clicking here.
Model range prices
Orbea OPTIMA E50 2022 is the cheapest e-bike model and costs 2441$. Orbea OPTIMA E40 20mph 2022 is the most expensive one and costs 3199$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Orbea OPTIMA E40 20mph price was 3199$. In conclusion, this e-bike price is 24.52% higher than the price of the average Commuter e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
OPTIMA E40 20mph components
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The OPTIMA E40 20mph 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea OPTIMA E40 20mph is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
OPTIMA E40 20mph comes in 3 sizes, that range from 150 cm – 200 cm (4.92 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
