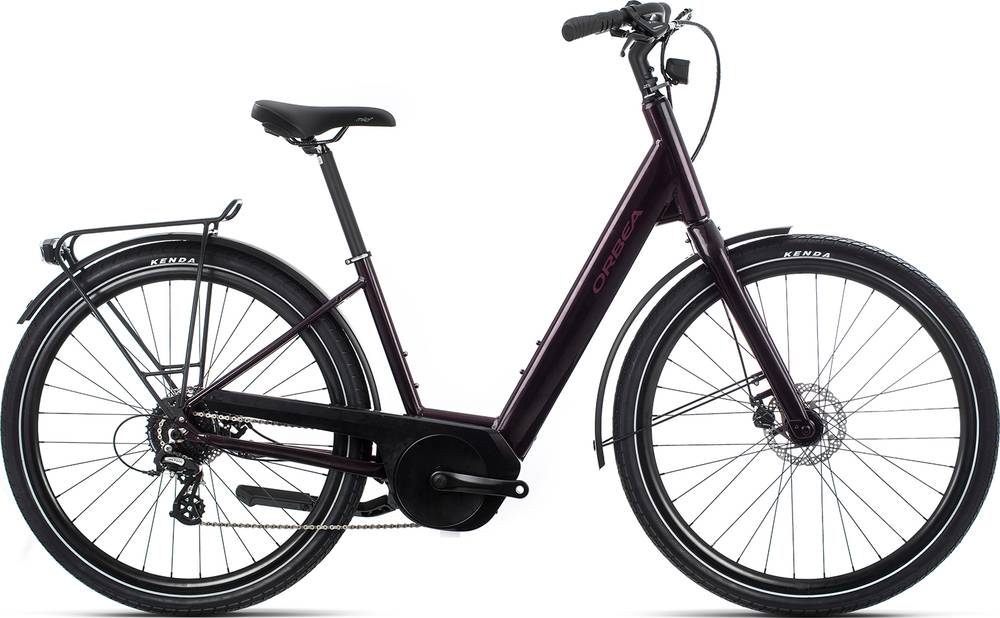

Orbea OPTIMA E50 USA 2019
2019 E-bike
Estimate price |
2,299$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Altus -
Suspension Rigid -
Motor hub-drive -
Battery Ebikemotion 36V/6.9A -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
150cm - 166cm
MD
164cm - 176cm
LG
174cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Optima Hydroformed Alloy, Ebikemotion X35 internal battery
Suspension Fork
Optima 400mm Alloy Post mount
Drivetrain
Rear Derailleur
Shimano Altus M310
Shift Levers
Shimano M310
Cassette
Shimano HG200 12-32t 8-Speed
Crank
Prowheel PRA105 42t
Chain
KMC X8
Pedals
VP-856 Black
Wheels
Front Hub
Safety Lock
Rims
Airline Corsa
Tires
Kenda 1172 700x50c
Brakes
Brakes
Shimano TX805 Mechanical Disc
Brake Levers
Shimano Alivio BL-T4010
Cockpit
Stem
Orbea TDS-D617
Handlebar
Orbea City Riser Alu 640mm
Headset
1-1/8" Semi-Integrated
Seat
Saddle
Selle Royal Milo Plus DR
Seatpost
Orbea OC 31.6x400mm
Motor & Battery
Motor
Ebikemotion X35
Battery
Ebikemotion 36V/6.9A
Charger
Ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.74 mm | 1.67 mm |
| Bottom Bracket Height | 272.5 mm | 272.5 mm | 272.5 mm |
| Front Center | 669 mm | 692 mm | 738 mm |
| Rake | 55 mm | 55 mm | 55 mm |
| Trail | 68 mm | 70 mm | 68 mm |
| Stack | 667 mm | 714 mm | 742 mm |
| Reach | 402 mm | 410 mm | 445 mm |
| Top Tube Length | 630 mm | 653 mm | 698 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 405 mm | 450 mm | 500 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 190 mm | 240 mm | 270 mm |
| Chainstay Length | 515 mm | 515 mm | 515 mm |
| Wheelbase | 1168 mm | 1192 mm | 1238 mm |
| Bottom Bracket Drop | 95 mm | 95 mm | 95 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 185 cm |
About this model
OPTIMA E50 USA belongs to the Orbea E Optima model. Orbea released 17 e-bikes variations of this model so far. Take a sneak peek at all Orbea E Optima e-bikes models from 2019, by clicking here.
Model range prices
Orbea OPTIMA E50 USA 2019 is the most economical model, with a starting price of 2299$. Orbea OPTIMA E40 USA 2019 on the other hand costs 2499$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
General Urban e-bikes average price
According to our math, the average price for a trustworthy General Urban e-bike is 2098$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Urban e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Orbea OPTIMA E50 USA price was 2299$. Comparing this to the average General Urban e-bike price, we see that the price is 9.58% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
OPTIMA E50 USA has an aluminum fork, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The OPTIMA E50 USA 2019 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea OPTIMA E50 USA is equipped with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 150 cm – 185 cm (4.92 ft – 6.07 ft). In conclusion, it won’t take much to find one that’s right for you.
