Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Sizing
Recommended size guide.
47cm
155cm - 161cm
49cm
159cm - 168cm
51cm
165cm - 174cm
53cm
171cm - 181cm
55cm
178cm - 187cm
57cm
184cm - 193cm
60cm
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Orca Aero carbon OMR, monocoque construction,tapered 1-1/8" - 1,5", BB 386mm, powermeter compatible, internal cable routing, EC/DC compatible.
Suspension Fork
Orca Aero OMR carbon fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts
Drivetrain
Rear Derailleur
Shimano Dura-Ace 9150 Di2
Front Derailleur
Shimano Dura-Ace 9150 Di2
Shift Levers
Shimano Dura-Ace 9150 Di2
Cassette
Shimano Dura-Ace 9100 11-28t 11-Speed
Crank
Shimano Dura-Ace 9100 34x50t
Bottom Bracket
386EVO, 86mm, press-fit
Chain
Shimano HG 901
Pedals
N/A
Wheels
Rims
FULCRUM Racing Quattro Carbon
Tires
Vittoria Open Corsa Competition G+ 700x25c
Brakes
Brakes
Shimano Dura-Ace R9110
Cockpit
Stem
FSA Metron 5D Compact Hanlebar intregated
Handlebar
Vision Metron 5D Compact
Headset
FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings
Seat
Saddle
Prologo Dimension T4.0 size143 mm
Seatpost
Orbea Aero OMR
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 49cm | 51cm | 53cm | 55cm | 57cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.36 mm | 1.39 mm | 1.42 mm | 1.45 mm | 1.47 mm | 1.51 mm |
| Bottom Bracket Height | 269.5 mm | 269.5 mm | 269.5 mm | 269.5 mm | 269.5 mm | 269.5 mm | 269.5 mm |
| Front Center | 573 mm | 577 mm | 581 mm | 582 mm | 593 mm | 602 mm | 616 mm |
| Rake | 48 mm | 48 mm | 48 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 65 mm | 62 mm | 57 mm | 59 mm | 57 mm | 57 mm | 57 mm |
| Stack | 500 mm | 509 mm | 527 mm | 547 mm | 566 mm | 584 mm | 610 mm |
| Reach | 369 mm | 374 mm | 379 mm | 384 mm | 390 mm | 397 mm | 403 mm |
| Top Tube Length | 508 mm | 520 mm | 533 mm | 546 mm | 558 mm | 574 mm | 587 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.7 ° | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 450 mm | 465 mm | 490 mm | 515 mm | 535 mm | 555 mm | 580 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.2 ° | 72.8 ° | 73 ° | 73.2 ° | 73.2 ° |
| Head Tube Length | 100 mm | 108 mm | 124 mm | 144 mm | 163 mm | 181 mm | 208 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 969 mm | 973 mm | 977 mm | 979 mm | 990 mm | 999 mm | 1013 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 739 mm | 751 mm | 772 mm | 796 mm | 815 mm | 833 mm | 856 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 159 cm | 165 cm | 171 cm | 178 cm | 184 cm | 190 cm |
| Rider Max Height | 161 cm | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 207 cm |

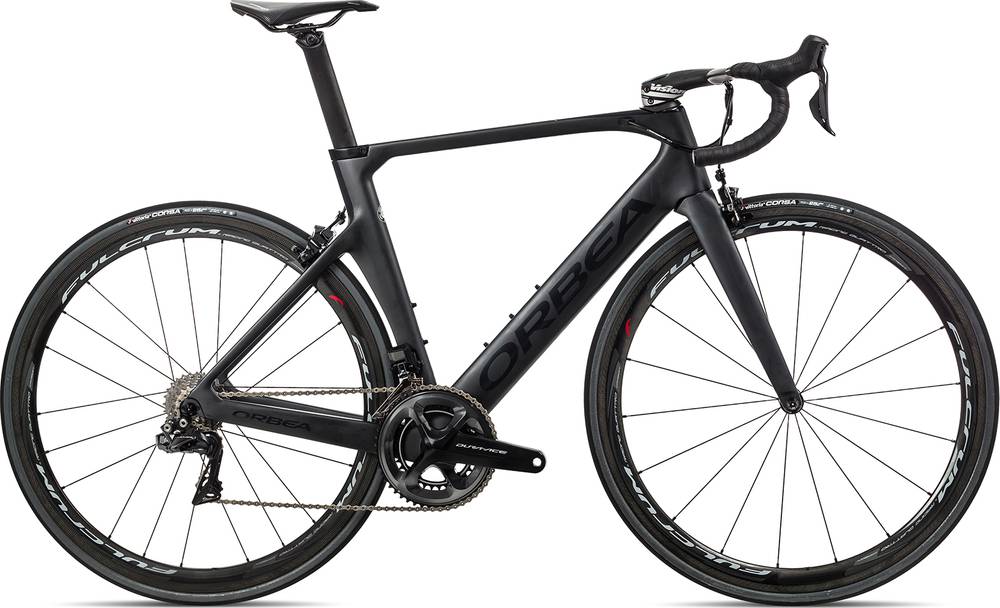

About this model
ORCA AERO M10iTEAM is part of the Orbea Orca model. There are 214 bikes that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the Orbea ORCA M40 2019 has a starting price of 1899$. Orbea ORCA M11iLTD-D 2019 on the other hand is the most expensive at 9499$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Aero bikes average price
If you want an acceptable Aero bike you should know that the average price is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 8299$. Doing a quick comparison, we notice that ORCA AERO M10iTEAM price is 97.08% higher than the average cost of an Aero bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
ORCA AERO M10iTEAM components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The wheels on ORCA AERO M10iTEAM are the 700c carbon type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea ORCA AERO M10iTEAM is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
ORCA AERO M10iTEAM comes in 7 sizes, that range from 155 cm – 207 cm (5.09 ft – 6.79 ft). In short, you can easily find one that suits you.
