Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
47cm
155cm - 161cm
49cm
159cm - 168cm
51cm
165cm - 174cm
53cm
171cm - 181cm
55cm
178cm - 187cm
57cm
184cm - 193cm
60cm
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Orca Aero carbon OMR, monocoque construction,tapered 1-1/8" - 1,5", BB 386mm, powermeter compatible, internal cable routing, EC/DC compatible.
Suspension Fork
Orca Aero OMR carbon fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts
Drivetrain
Rear Derailleur
Shimano Dura-Ace 9100
Front Derailleur
Shimano Dura-Ace 9100
Shift Levers
Shimano Dura-Ace 9100
Cassette
Shimano Dura-Ace 9100 11-28t 11-Speed Shimano Dura-Ace R9100 11-25t 11-Speed Shimano Dura-Ace R9100 11-30t 11-Speed
Crank
Shimano Dura-Ace 9100 34x50t Shimano Dura-Ace R9100 39x53t Rotor Aldhu 36x52t Rotor 2INpower DM 34x50t Rotor 2INpower DM 36x52t
Bottom Bracket
386EVO, 86mm, press-fit
Chain
Shimano HG 901
Pedals
N/A
Wheels
Rims
DT PR 1600 Spline 32 Fulcrum Racing Quattro Carbon DT Swiss ARC1400 Dicut 48
Tires
Hutchinson Fusion 5 All SeasonTLR 700x25 Hutchinson Fusion 5 All Season TLR 700x28
Brakes
Brakes
Shimano Dura-Ace R9110
Cockpit
Stem
Orbea OC-III
Handlebar
Vision Metron 4D Compact Vision Metron 5D Compact
Headset
FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings
Seat
Saddle
Prologo Dimension T4,0 size143 mm Prologo Scratch-2 Tirox size 143 mm Black Selle Italia SLR Kit Carbonio Black
Seatpost
Orbea Aero OMR
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 49cm | 51cm | 53cm | 55cm | 57cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.36 mm | 1.39 mm | 1.42 mm | 1.45 mm | 1.47 mm | 1.51 mm |
| Bottom Bracket Height | 269.5 mm | 269.5 mm | 269.5 mm | 269.5 mm | 269.5 mm | 269.5 mm | 269.5 mm |
| Front Center | 573 mm | 577 mm | 581 mm | 582 mm | 593 mm | 602 mm | 616 mm |
| Rake | 48 mm | 48 mm | 48 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 65 mm | 62 mm | 57 mm | 59 mm | 57 mm | 57 mm | 57 mm |
| Stack | 500 mm | 509 mm | 527 mm | 547 mm | 566 mm | 584 mm | 610 mm |
| Reach | 369 mm | 374 mm | 379 mm | 384 mm | 390 mm | 397 mm | 403 mm |
| Top Tube Length | 508 mm | 520 mm | 533 mm | 546 mm | 558 mm | 574 mm | 587 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.7 ° | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 450 mm | 465 mm | 490 mm | 515 mm | 535 mm | 555 mm | 580 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.2 ° | 72.8 ° | 73 ° | 73.2 ° | 73.2 ° |
| Head Tube Length | 100 mm | 108 mm | 124 mm | 144 mm | 163 mm | 181 mm | 208 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 969 mm | 973 mm | 977 mm | 979 mm | 990 mm | 999 mm | 1013 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 739 mm | 751 mm | 772 mm | 796 mm | 815 mm | 833 mm | 856 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 159 cm | 165 cm | 171 cm | 178 cm | 184 cm | 190 cm |
| Rider Max Height | 161 cm | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 207 cm |
Model Overview

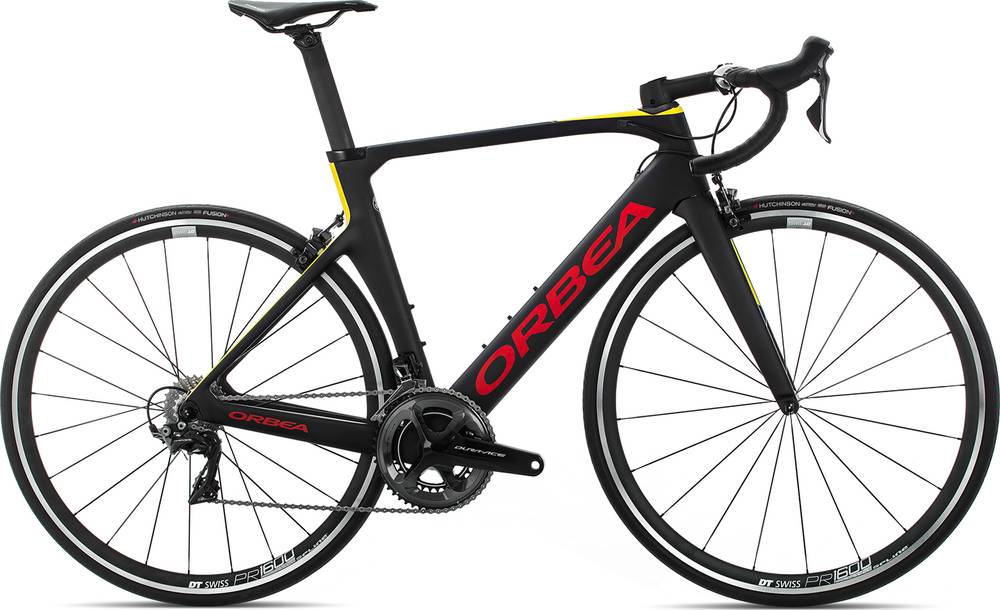

ORCA AERO M10TEAM completes the Orbea Orca model. Orbea launched 214 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Orbea ORCA M40 2018 is the most economical model, with a starting price of 1899$. Orbea ORCA M10iLTD-D 2018 on the other hand costs 9399$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Aero bikes
If you want to purchase a solid Aero bike, it is important to know that the average cost is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5699$. Doing a quick comparison, we notice that ORCA AERO M10TEAM price is 35.34% more expensive than the average cost of an Aero bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
ORCA AERO M10TEAM components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The ORCA AERO M10TEAM 2018 bike is equipped with 700c carbon wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea ORCA AERO M10TEAM is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
This bike is available in 7 sizes. They vary from 155 cm – 207 cm (5.09 ft – 6.79 ft). In short, you can easily find one that suits you.
